DF14 Series

Catalog

CONN SOCKET 26-28AWG CRIMP GOLD

...

Part	Pin or Socket	Contact Finish	Contact Termination	Note	Color	Pitch	Pitch	Connector Type	Number of Positions	Insulation Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Style	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Features	Shrouding	Fastening Type	Insulation Color	Voltage Rating	Insulation Height	Insulation Height	Material Flammability Rating	Contact Material	Contact Finish - Post	Termination	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

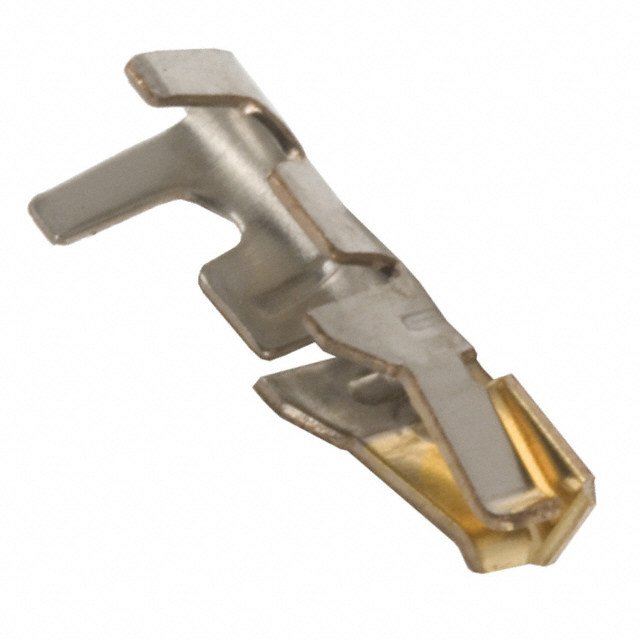

Hirose Electric Co Ltd DF14-2628SCFA(90)	Socket	Gold	Crimp

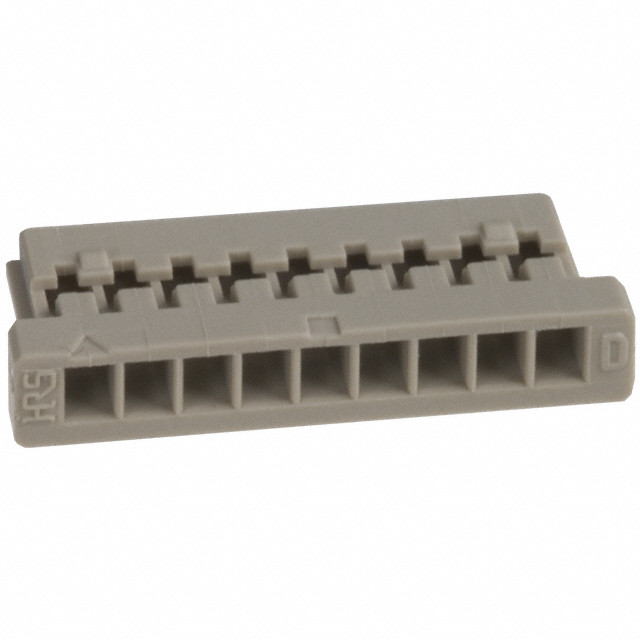

Hirose Electric Co Ltd DF14-9S-1.25C			Crimp	Contacts Not Included	Beige	0.049 in	1.25 mm	Receptacle	9	Nylon Polyamide (PA)	1	85 °C	-35 °C	Free Hanging (In-Line)	Female Socket

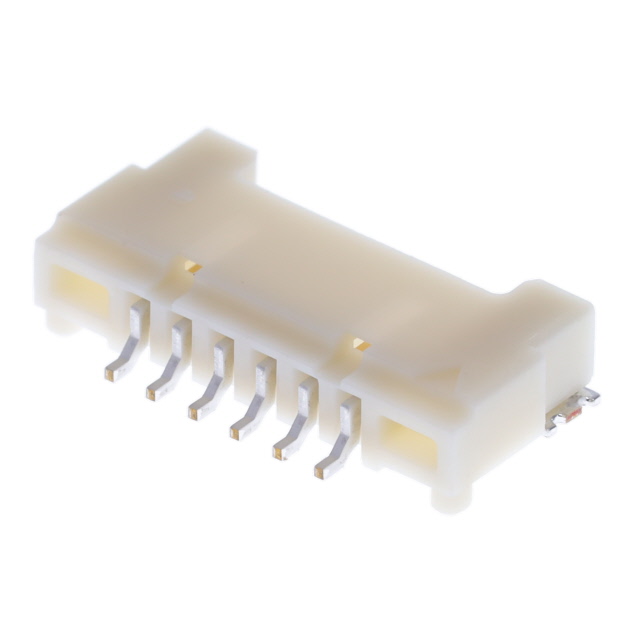

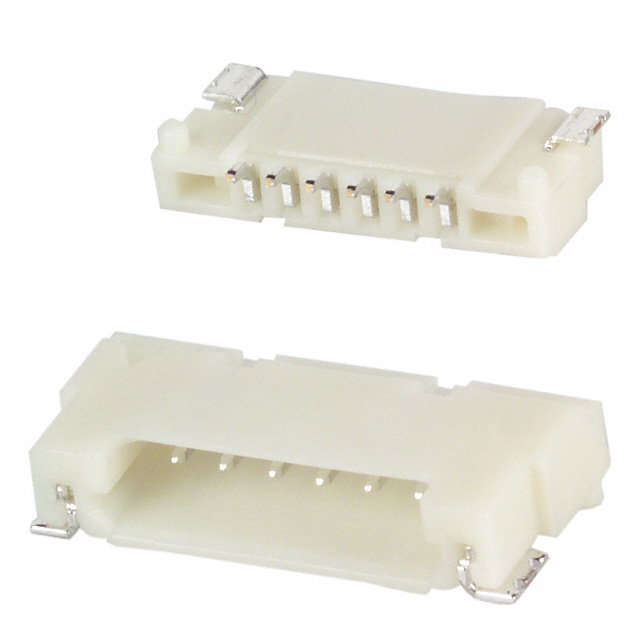

Hirose Electric Co Ltd DF14-6P-1.25H(20)								Header	6	Nylon Polyamide (PA)	1	85 °C	-35 °C	Right Angle Surface Mount	Male Pin	Board to Cable/Wire	0.049 in	1.25 mm	All	Board Guide Solder Retention	Shrouded - 4 Wall	Push-Pull	Beige	150 VDC	0.098 "	2.5 mm	UL94 V-0	Brass	Tin	Solder	Square

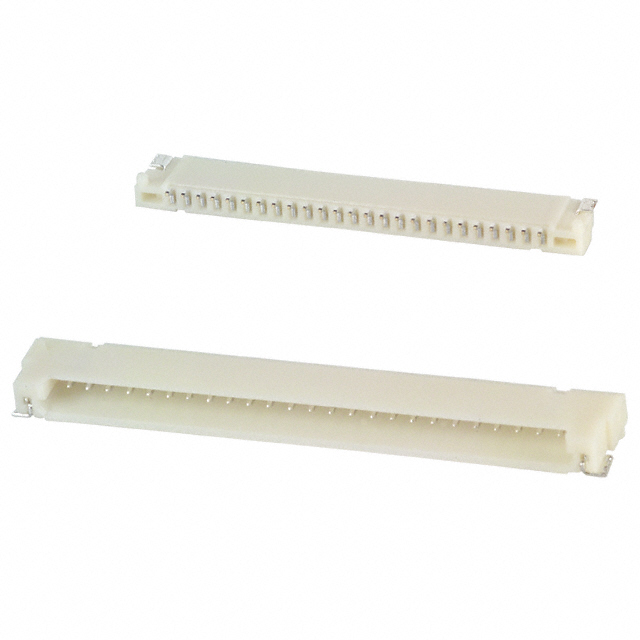

Hirose Electric Co Ltd DF14-25P-1.25H(25)								Header	25	Nylon Polyamide (PA)	1	85 °C	-35 °C	Right Angle Surface Mount	Male Pin	Board to Cable/Wire	0.049 in	1.25 mm	All	Board Guide Solder Retention	Shrouded - 4 Wall	Push-Pull	Beige	150 VDC	0.098 "	2.5 mm	UL94 V-0	Brass		Solder	Square	Tin-Copper	39.4 µin	1 µm
Hirose Electric Co Ltd DF14-2P-1.25H(35)								Header	2	Nylon Polyamide (PA)	1	85 °C	-35 °C	Right Angle Surface Mount	Male Pin	Board to Cable/Wire	0.049 in	1.25 mm	All	Board Guide Solder Retention	Shrouded - 4 Wall	Push-Pull	Beige	150 VAC	0.098 "	2.5 mm	UL94 V-0	Brass	Tin	Solder	Square		39.4 µin	1 µm	39.4 çin	1 çm	0.086 in 0.087 in	2.2 mm
Hirose Electric Co Ltd DF14-6S-1.25C(10)			Crimp		Beige	0.049 in	1.25 mm	Receptacle	6	Nylon Polyamide (PA)	1	85 °C	-35 °C	Free Hanging (In-Line)	Female Socket

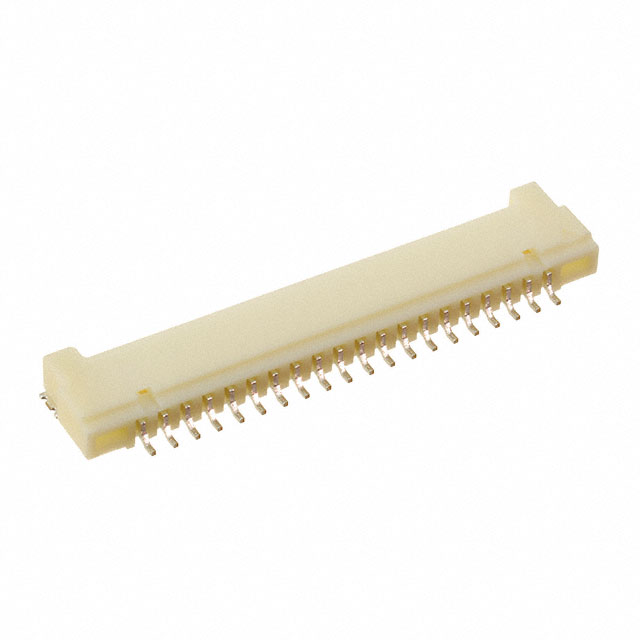

Hirose Electric Co Ltd DF14-20P-1.25H(56)								Header	20	Nylon Polyamide (PA)	1	85 °C	-35 °C	Right Angle Surface Mount	Male Pin	Board to Cable/Wire	0.049 in	1.25 mm	All	Board Guide Solder Retention	Shrouded - 4 Wall	Push-Pull	Beige	150 VDC	0.098 "	2.5 mm	UL94 V-0	Brass	Tin-Copper	Solder	Square	Gold			39.4 çin	1 çm	0.086 in	2.2 mm	3.9 µin	0.099 µm
Hirose Electric Co Ltd DF14-8P-1.25H(22)								Header	8	Nylon Polyamide (PA)	1	85 °C	-35 °C	Right Angle Surface Mount	Male Pin	Board to Cable/Wire	0.049 in	1.25 mm	All	Board Guide Solder Retention	Shrouded - 4 Wall	Push-Pull	Beige	150 VAC	0.098 "	2.5 mm	UL94 V-0	Brass	Tin	Solder	Square		39.4 µin	1 µm	39.4 çin	1 çm	0.086 in 0.087 in	2.2 mm
Hirose Electric Co Ltd DF14-6P-1.25H(24)								Header	6	Nylon Polyamide (PA)	1	85 °C	-35 °C	Right Angle Surface Mount	Male Pin	Board to Cable/Wire	0.049 in	1.25 mm	All	Board Guide Solder Retention	Shrouded - 4 Wall	Push-Pull	Beige	150 VAC	0.098 "	2.5 mm	UL94 V-0	Brass	Tin-Copper	Solder	Square	Tin-Copper	39.4 µin	1 µm	39.4 çin	1 çm	0.086 in	2.2 mm
Hirose Electric Co Ltd DF14-8P-1.25H(35)								Header	8	Nylon Polyamide (PA)	1	85 °C	-35 °C	Right Angle Surface Mount	Male Pin	Board to Cable/Wire	0.049 in	1.25 mm	All	Board Guide Solder Retention	Shrouded - 4 Wall	Push-Pull	Beige	150 VAC	0.098 "	2.5 mm	UL94 V-0	Brass	Tin	Solder	Square		39.4 µin	1 µm	39.4 çin	1 çm	0.086 in 0.087 in	2.2 mm
