FX11LB Series

Catalog

CONN RCPT 80POS SMD GOLD

Part	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Connector Type	Number of Rows [custom]	Contact Finish	Mated Stacking Heights
Hirose Electric Co Ltd FX11LB-80S/8-SV	Surface Mount	Ground Plate Solder Retention	0.065 in	1.65 mm	80	0.1 Ám	4 Áin	0.02 "	0.5 mm	Receptacle Center Strip Contacts	2	Gold	2 mm
Hirose Electric Co Ltd FX11LB-120P/12-SV(92)	Surface Mount	Ground Plate Solder Retention	0.064 "	1.64 mm	120	0.1 Ám	4 Áin	0.02 "	0.5 mm	Header Outer Shroud Contacts	2	Gold	2 mm

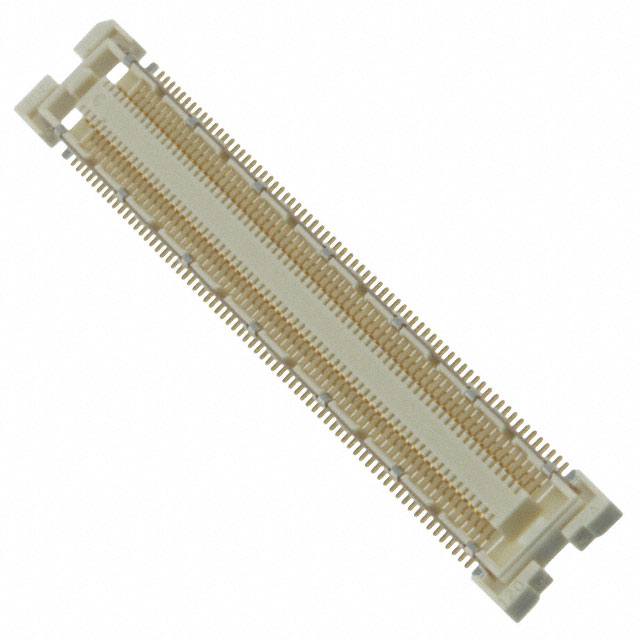

Hirose Electric Co Ltd FX11LB-140S-SV	Surface Mount	Solder Retention	0.065 in	1.65 mm	140	0.1 Ám	4 Áin	0.02 "	0.5 mm	Receptacle Center Strip Contacts	2	Gold	2 mm
Hirose Electric Co Ltd FX11LB-80P/8-SV(91)	Surface Mount	Ground Plate Solder Retention	0.064 "	1.64 mm	80	0.1 Ám	4 Áin	0.02 "	0.5 mm	Header Outer Shroud Contacts	2	Gold	2 mm
Hirose Electric Co Ltd FX11LB-68S-SV	Surface Mount	Solder Retention	0.065 in	1.65 mm	68 positions	0.1 Ám	4 Áin	0.02 "	0.5 mm	Receptacle Center Strip Contacts	2	Gold	2 mm
Hirose Electric Co Ltd FX11LB-60S/6-SV(92)	Surface Mount	Ground Plate Solder Retention	0.065 in	1.65 mm	60	0.1 Ám	4 Áin	0.02 "	0.5 mm	Receptacle Center Strip Contacts	2	Gold	2 mm

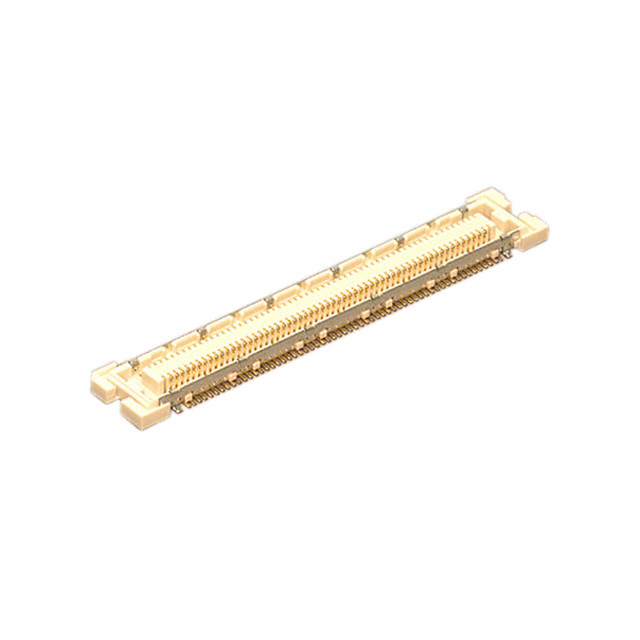

Hirose Electric Co Ltd FX11LB-116S-SV	Surface Mount	Solder Retention	0.065 in	1.65 mm	116	0.1 Ám	4 Áin	0.02 "	0.5 mm	Receptacle Center Strip Contacts	2	Gold	2 mm
Hirose Electric Co Ltd FX11LB-140S-SV(22)	Surface Mount	Solder Retention	0.065 in	1.65 mm	140	0.1 Ám	4 Áin	0.02 "	0.5 mm	Receptacle Center Strip Contacts	2	Gold	2 mm

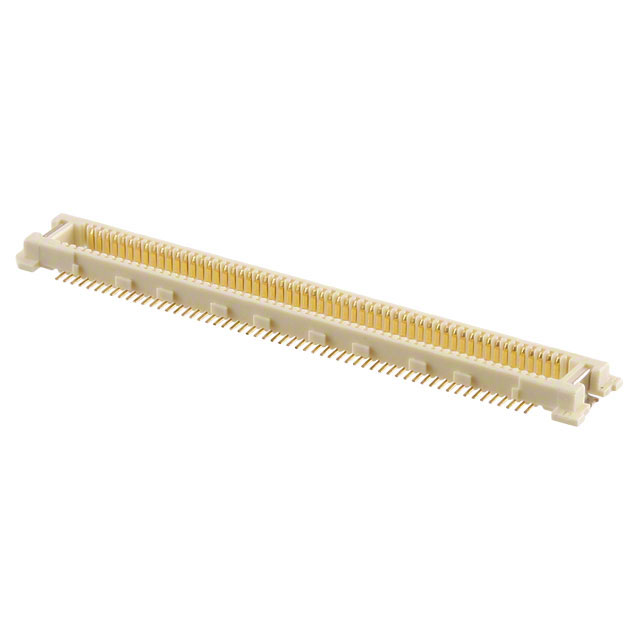

Hirose Electric Co Ltd FX11LB-116P-SV(22)	Surface Mount	Solder Retention	0.064 "	1.64 mm	116	0.1 Ám	4 Áin	0.02 "	0.5 mm	Header Outer Shroud Contacts	2	Gold	2 mm
Hirose Electric Co Ltd FX11LB-116P-SV(21)	Surface Mount	Solder Retention	0.075 in	1.9 mm	116	0.1 Ám	4 Áin	0.02 "	0.5 mm	Header Outer Shroud Contacts	2	Gold	2 mm
