12537JE Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

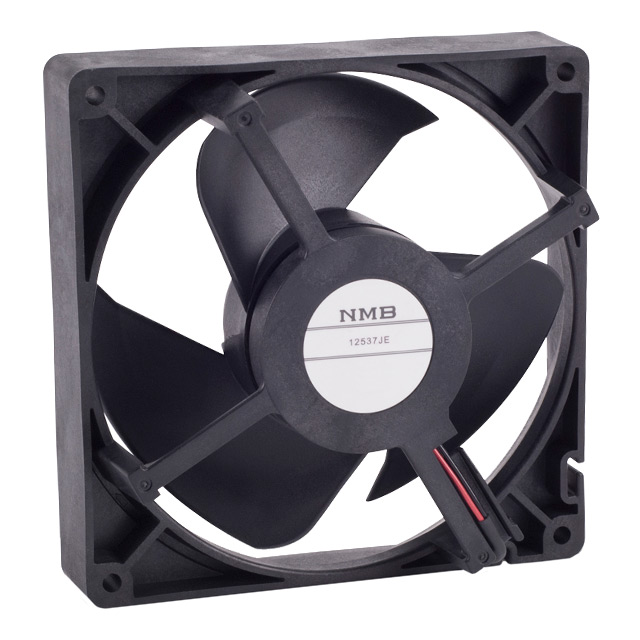

DC AXIAL FAN, 12 V, SQUARE, 125 MM, 37 MM, BALL BEARING, 76.63 CFM
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Air Flow | Air Flow | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Width [x] | Voltage - Rated | Noise | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | RPM | Fan Type | Bearing Type | Features | Termination | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 7 V | 13.2 VDC | Plastic | 76.6 CFM | 2.14 mł/min | Plastic | 140 mA | 70000 Hrs | 37 mm | 12 VDC | 35 dB | 42.3 Pa | 0.17 in H2O | Square | 125.4 mm | 125.4 mm | 1.69 W | 2550 RPM | Tubeaxial | Ball | Auto Restart | 2 Wire Leads | 40 °C | -40 C |
