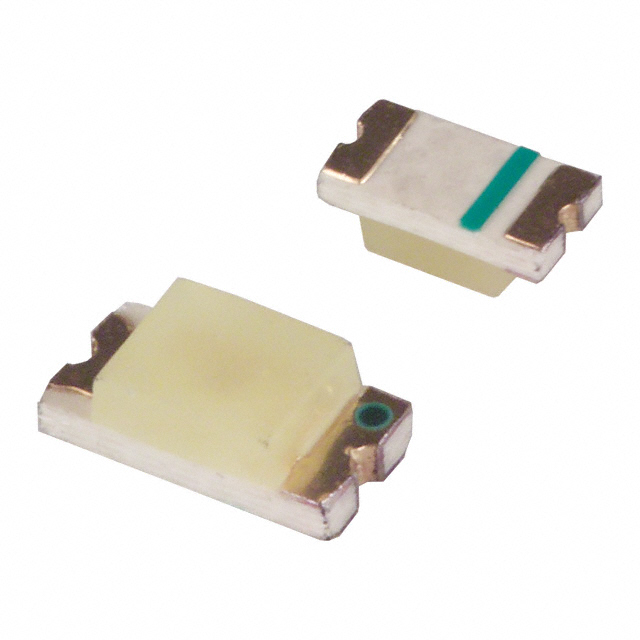

SML-LX1206 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED ORANGE CLEAR 1206 SMD

Part	Lens Transparency	Millicandela Rating	Height (Max) [z]	Current - Test	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Mounting Type	Wavelength - Peak	Package / Case	Lens Color	Supplier Device Package	Configuration	Lens Size [y]	Lens Size [x]	Viewing Angle	Color	Height (Max) [Max] [z]
Lumex Opto/Components Inc. SML-LX1206SOC-TR	Clear	70 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	2 V	Surface Mount	610 nm	1206 (3216 Metric)	Colorless	1206	Standard	1.5 mm	2 mm	140 °

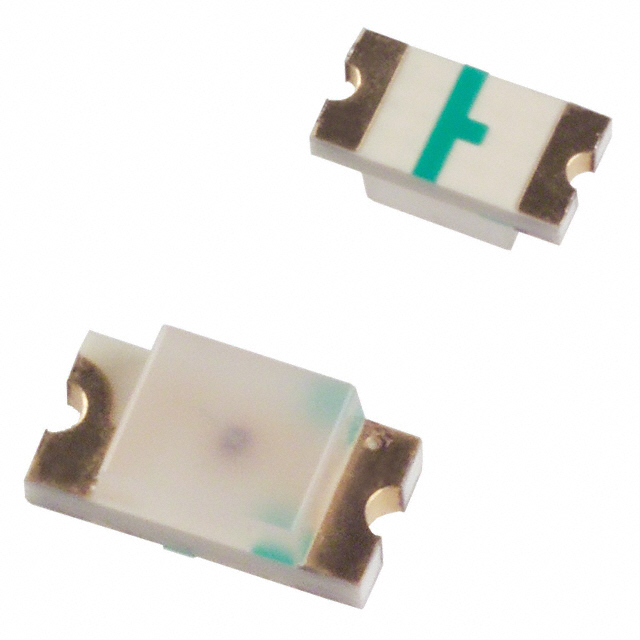

Lumex Opto/Components Inc. SML-LX1206SGW-TR	Diffused	10 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	2.2 V	Surface Mount	565 nm	1206 (3216 Metric)	White	1206	Standard	1.6 mm	2 mm	160 °	Green
Lumex Opto/Components Inc. SML-LX1206UPGC-TR	Clear	45 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	3.5 V	Surface Mount	525 nm	1206 (3216 Metric)	Colorless	1206	Standard	1.5 mm	2 mm	140 °	Green
Lumex Opto/Components Inc. SML-LX1206USBC-TR	Clear	25 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	3.5 V	Surface Mount	470 nm	1206 (3216 Metric)	Colorless	1206	Standard	1.5 mm	2 mm	140 °	Blue
Lumex Opto/Components Inc. SML-LX1206IC-TR	Clear	9 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.5 mm	3.2 mm	2 V	Surface Mount	640 nm	1206 (3216 Metric)	Colorless	1206	Standard	1.5 mm	2 mm	130 °	Red
Lumex Opto/Components Inc. SML-LX1206SYW-TR	Diffused	40 mcd		20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	2 V	Surface Mount	590 nm	1206 (3216 Metric)	White		Independent	1.6 mm	2 mm	160 °	Yellow	1.6 mm
Lumex Opto/Components Inc. SML-LX1206SRC-TR	Clear	25 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	1.7 V	Surface Mount	660 nm	1206 (3216 Metric)	Colorless	1206	Standard	1.5 mm	2 mm	140 °	Red

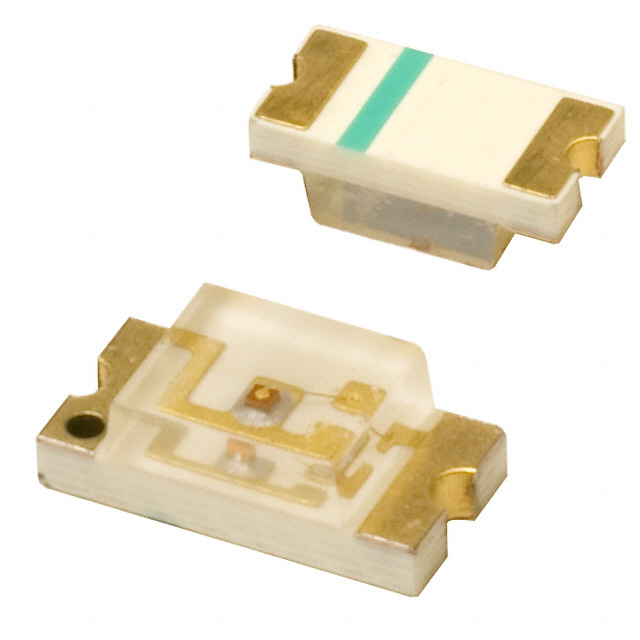

Lumex Opto/Components Inc. SML-LX1206GC-TR	Clear	10 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	2.2 V	Surface Mount	565 nm	1206 (3216 Metric)	Colorless	1206	Standard	1.5 mm	2 mm	160 °	Green
Lumex Opto/Components Inc. SML-LX1206UWW-TR	Diffused	90 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	3.5 V	Surface Mount	550 nm	1206 (3216 Metric)	Yellow	1206	Standard	1.6 mm	2 mm	140 °	White
Lumex Opto/Components Inc. SML-LX1206SYC-TR	Clear	70 mcd	1.1 mm	20 mA	Rectangle with Flat Top	1.6 mm	3.2 mm	2 V	Surface Mount	590 nm	1206 (3216 Metric)	Colorless	1206	Standard	1.5 mm	2 mm	140 °	Yellow
