AD9755 Series
Manufacturer: Analog Devices
Beta
⌘K
14-BIT, 300 MSPS HIGH SPEED TXDAC+®D/A CONVERTER
| Part | Settling Time | Mounting Type | Differential Output | Data Interface | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Reference Type | Supplier Device Package | Package / Case | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of Bits | Architecture | INL/DNL (LSB) | Number of DAC's | Utilized IC / Part | Supplied Contents | DAC Type | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 11 ns | Surface Mount | Parallel | 85 °C | -40 °C | Current - Unbuffered | 3.6 V | 3 V | External Internal | 48-LQFP (7x7) | 48-LQFP | 3.6 V | 3 V | 14 | Current Source | 1.5 LSB 2.5 LSB | ||||||

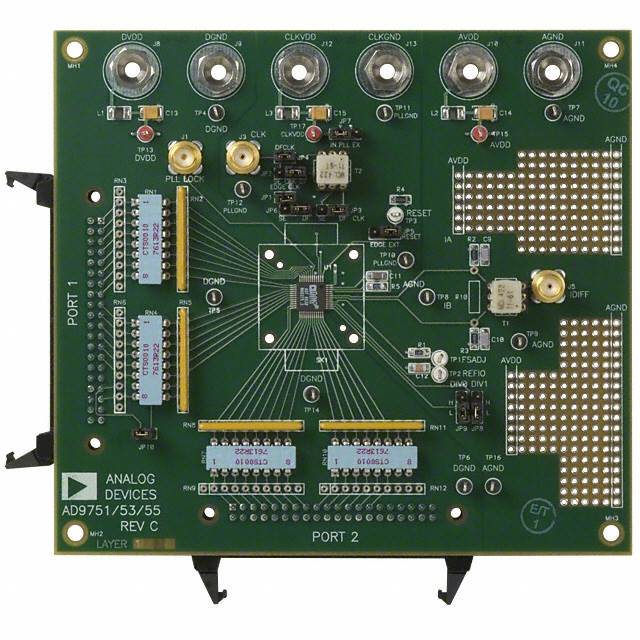

 Analog Devices | 11 ns | Parallel | 14 | 1 | AD9755 | Board(s) | Current | 300 M |
