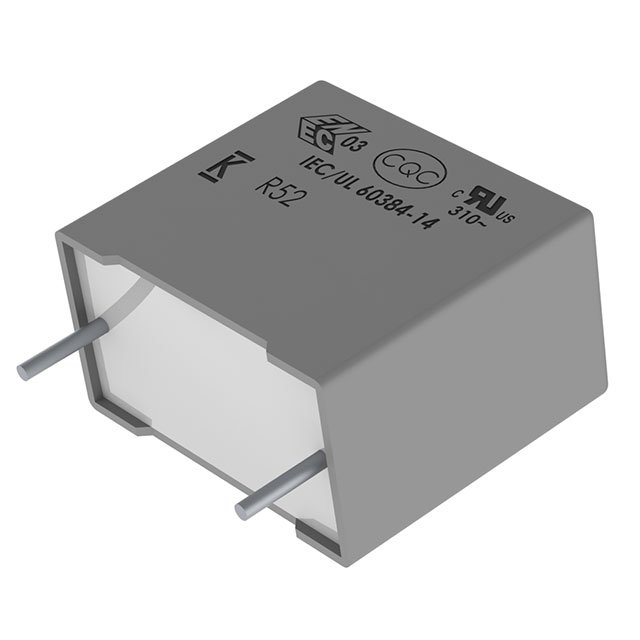

R523W Series

Manufacturer: KEMET

Catalog

CAP FILM 4.7UF 10% 630VDC RADIAL

Part	Applications	Dielectric Material	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Package / Case	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Termination	Mounting Type	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R523W447050P0K	Automotive	Polypropylene (PP) Metallized	4.7 µF	-40 C	110 °C	310 V	Radial	10 %	28.6 mm	1.126 in	1.634 in	41.5 mm	0.63 "	16 mm	37.5 mm	1.476 in	PC Pins	Through Hole	AEC-Q200 X2
KEMET R523W522050P0K	Automotive	Polypropylene (PP) Metallized	22 µF	-40 C	110 °C	310 V	Radial	10 %		45.1 mm	1.634 in	41.5 mm	1.181 in	30 mm	37.5 mm	1.476 in	PC Pins	Through Hole	AEC-Q200 X2	1.776 in
KEMET R523W433050P0K	Automotive	Polypropylene (PP) Metallized	3.3 µF	-40 C	110 °C	310 V	Radial	10 %		24.1 mm	1.634 in	41.5 mm	0.512 "	13 mm	37.5 mm	1.476 in	PC Pins	Through Hole	AEC-Q200 X2	0.949 in
KEMET R523W468050P0K	Automotive	Polypropylene (PP) Metallized	6.8 µF	-40 C	110 °C	310 V	Radial	10 %			1.634 in	41.5 mm	0.748 in	19 mm	37.5 mm	1.476 in	PC Pins	Through Hole	AEC-Q200 X2		1.264 "	32.1 mm
