C0749 Series
Manufacturer: Prysmian Group
Beta
⌘K

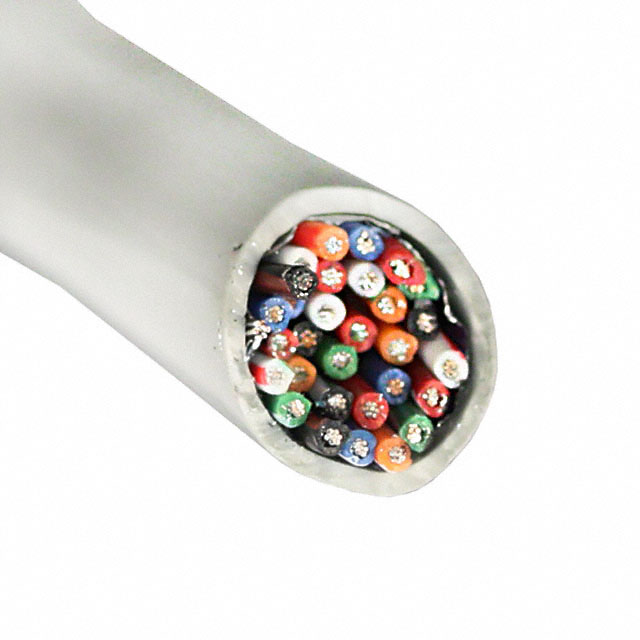

CABLE 30CON 24AWG GRY SHLD 1000'
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Cable Type | Jacket (Insulation) Material | Conductor Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Insulation | Usage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 % | Flexfoil® | 80 °C 105 ░C | -20 ░C | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Tinned | 24 AWG | 0.351 in | 8.92 mm | 30 | Poly-Vinyl Chloride (PVC) | Computer | 304.8 m | 1000 ft | 7 | 32 AWG | Drain Wire | Gray | 0.813 mm | 0.032 in | 300 VDC |
Prysmian Group | 100 % | Flexfoil® | 80 °C 105 ░C | -20 ░C | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Tinned | 24 AWG | 0.351 in | 8.92 mm | 30 | Poly-Vinyl Chloride (PVC) | Computer | 152.4 m | 500 ft | 7 | 32 AWG | Drain Wire | Gray | 0.813 mm | 0.032 in | 300 VDC |
