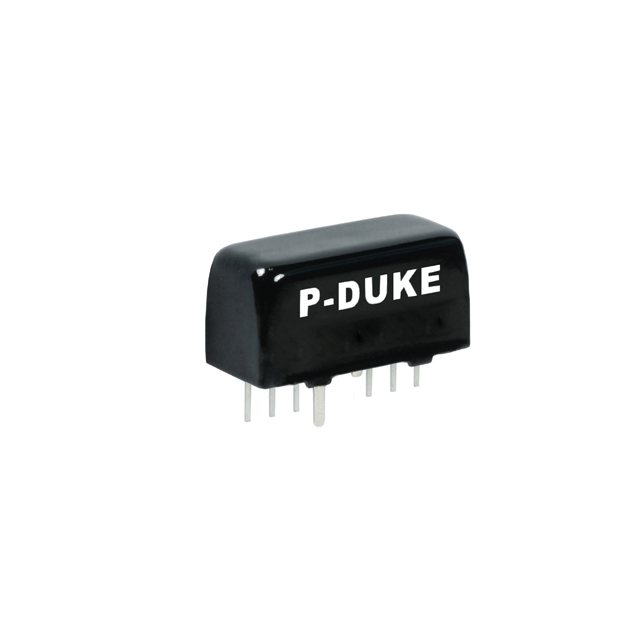

RDL06 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 3.3V 5W
| Part | Efficiency | Mounting Type | Voltage - Isolation | Standard Number | Voltage - Output 1 | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Package / Case | Type | Applications | Voltage - Input (Min) [Min] | Approval Agency | Features | Number of Outputs | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 81 % | Through Hole | 3000 V | 60950-1 62368-1 | 3.3 V | 5 W | -40 °C | 100 °C | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 12-SIP Module 10 Leads | Isolated Module | ITE (Commercial) | 9 V | CB CE cURus | Remote On/Off Standby Output | 1 | 36 V | 1.5 A |
P-DUKE Technology | 87 % | Through Hole | 3000 V | 60950-1 62368-1 | 24 V | 6 W | -40 °C | 100 °C | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 12-SIP Module 10 Leads | Isolated Module | ITE (Commercial) | 9 V | CB CE cURus | Remote On/Off Standby Output | 1 | 36 V | 250 mA |
P-DUKE Technology | 84 % | Through Hole | 3000 V | 60950-1 62368-1 | 5 V | 6 W | -40 °C | 100 °C | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 12-SIP Module 10 Leads | Isolated Module | ITE (Commercial) | 18 V | CB CE cURus | Remote On/Off Standby Output | 1 | 75 V | 1.2 A |
