E3532S Series

Catalog

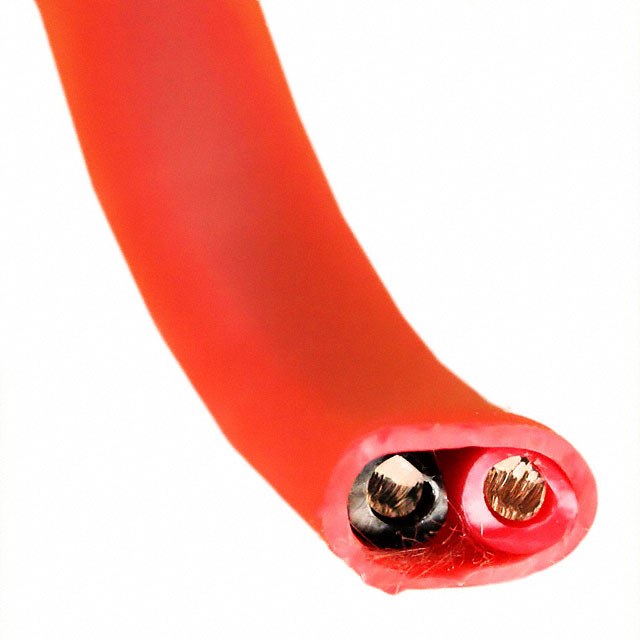

CABLE 2COND 12AWG RED 500'

Part	Conductor Material	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Length	Length	Number of Conductors	Operating Temperature [Max]	Jacket (Insulation) Material	Voltage	Conductor Strand	Length [x]	Length [x]	Features	Ratings	Usage	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Wire Gauge
Prysmian Group E3532S.41.03	Copper Annealed Bare	0.381 mm	0.015 in	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	2	75 ░C	Plenum Poly-Vinyl Chloride (PVC)	300 VDC	Solid	100 ft	30.5 m	Rip Cord	ASTM B-3	Alarm Safety	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.244 in	6.2 mm	Red	12 AWG
Prysmian Group E3532S.38.03	Copper Annealed Bare	0.381 mm	0.015 in	152.4 m	500 ft	2	75 ░C	Plenum Poly-Vinyl Chloride (PVC)	300 VDC	Solid			Rip Cord	ASTM B-3	Alarm Safety	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.244 in	6.2 mm	Red	12 AWG
Prysmian Group E3532S.38.03	Copper Annealed Bare	0.381 mm	0.015 in	152.4 m	500 ft	2	75 ░C	Plenum Poly-Vinyl Chloride (PVC)	300 VDC	Solid			Rip Cord	ASTM B-3	Alarm Safety	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.244 in	6.2 mm	Red	12 AWG
Prysmian Group E3532S.41.03	Copper Annealed Bare	0.381 mm	0.015 in	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	2	75 ░C	Plenum Poly-Vinyl Chloride (PVC)	300 VDC	Solid	100 ft	30.5 m	Rip Cord	ASTM B-3	Alarm Safety	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.244 in	6.2 mm	Red	12 AWG
Prysmian Group E3532S.41.05	Copper Annealed Bare	0.381 mm	0.015 in	304.8 m	1000 ft	2	75 ░C	Plenum Poly-Vinyl Chloride (PVC)	300 VDC	Solid			Rip Cord	ASTM B-3		Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.244 in	6.2 mm	Yellow	12 AWG
Prysmian Group E3532S.41.05	Copper Annealed Bare	0.381 mm	0.015 in	304.8 m	1000 ft	2	75 ░C	Plenum Poly-Vinyl Chloride (PVC)	300 VDC	Solid			Rip Cord	ASTM B-3		Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.244 in	6.2 mm	Yellow	12 AWG
