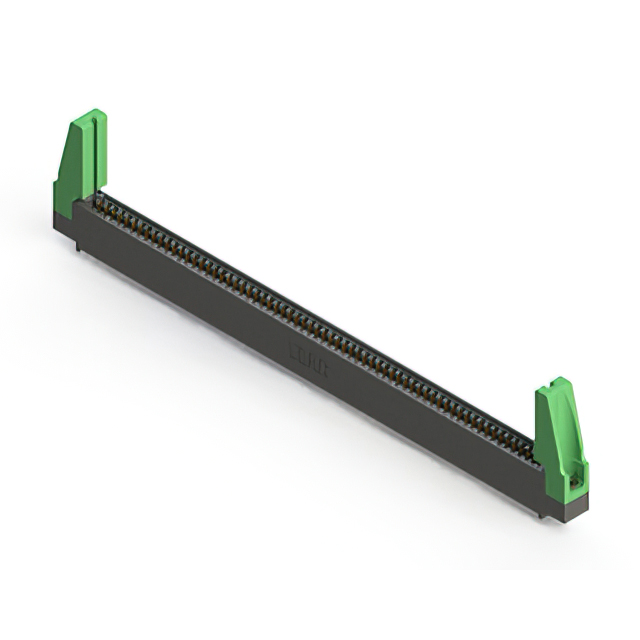

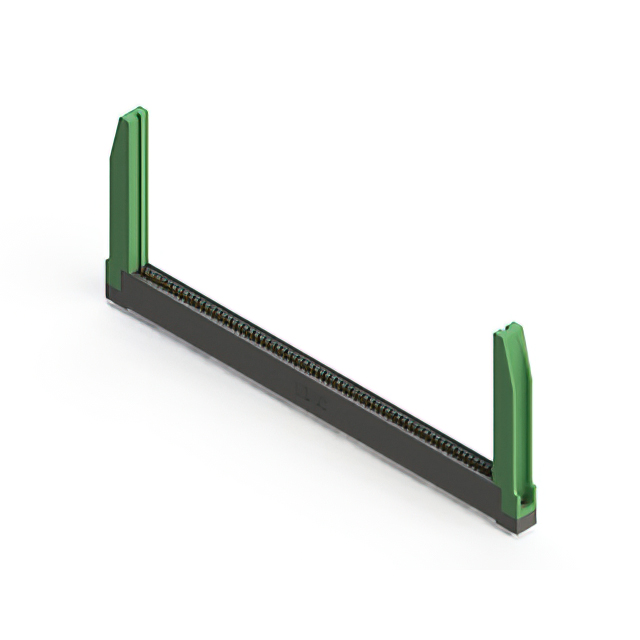

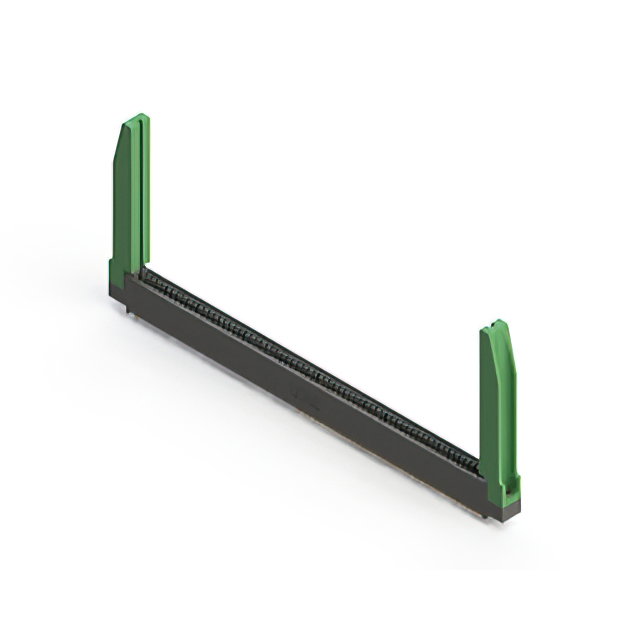

395-067 Series
Manufacturer: EDAC Inc.
Catalog
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
...
| Part | Number of Positions | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Features | Termination | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Material - Insulation | Termination Rows | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Read Out | Color | Contact Finish | Flange Feature | Number of Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Guides | Solder | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | 67 | ||
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Guides | Solder | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole | 67 | ||
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Guides | Wire Wrap | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | 67 | ||
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Guides | Solder | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole | 67 | ||
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | Side Mount Opening Unthreaded | 1 | Through Hole | 67 | 3.25 mm | 0.128 in | |
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | M3 Threaded Insert Top Mount Opening | 1 | Through Hole | 67 | |||
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Guides | Wire Wrap | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | 67 | ||
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | Side Mount Opening Unthreaded | 1 | Through Hole | 67 | 3.25 mm | 0.128 in | |
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Guides | Solder | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole | 67 | ||
 EDAC Inc. | 67 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Guides | Solder | Female | -40 °C | 105 ░C | Copper Alloy | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Single | Black | Gold | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole | 67 |
