AMEL15 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 24V 15W

Part	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Efficiency	Load Regulation	Package / Case	Applications	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Line Regulation	Approval Agency	Voltage - Output 1	Weight [custom]	Weight [custom]	Standard Number

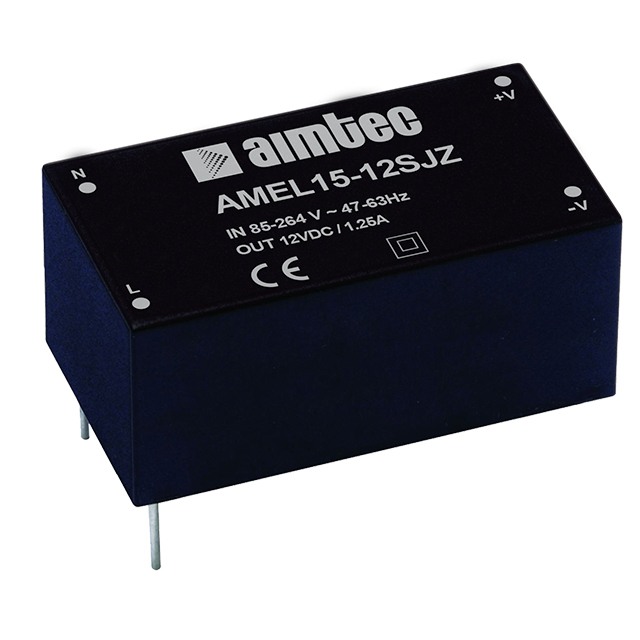

aimtec AMEL15-24SJZ	Enclosed	23.5 mm	53.8 mm	1.13 "	0.93 "	2.12 in	28.8 mm	625 mA	85 VAC 100 V	264 VAC 370 VDC	Through Hole	81 %	±1%	4-DIP Module	ITE (Commercial)	1	70 °C	-40 C	Universal Input	15 W	0.5 %	CE cURus	24 V
aimtec AMEL15-3S277HAVZ	Enclosed	23.5 mm	47.6 mm	1.06 in	0.93 "	1.87 in	26.8 mm	4 A	85 VAC 100 V	305 VAC 430 VDC	Through Hole	85 %	±1%	4-DIP Module	Household Appliances ITE (Commercial) Medical	1	85 °C	-40 °C	DC Input Capable Universal Input	13 W 15 W	0.5 %	CE cURus UKCA UL	3.3 V	0.106 lb	48 g	60335-1 60601-1 62368-1
aimtec AMEL15-12S277HAVZ	Enclosed							1.25 A	85 VAC 100 V	305 VAC 430 VDC	Through Hole	85 %	±1%	4-DIP Module	Household Appliances ITE (Commercial) Medical	1	85 °C	-40 °C		15 W	0.5 %	CE UL	12 V	0.106 lb	48 g	60335-1 60601-1 62368-1
aimtec AMEL15-24S277HAVZ	Enclosed	23.5 mm	47.6 mm	1.06 in	0.93 "	1.87 in	26.8 mm	625 mA	85 VAC 100 V	305 VAC 430 VDC	Through Hole	85 % 86 %	±1%	4-DIP Module	Household Appliances ITE (Commercial) Medical	1	85 °C	-40 °C	DC Input Capable Universal Input	15 W	0.5 %	CE cURus UKCA UL	24 V	0.106 lb	48 g	60335-1 60601-1 62368-1
aimtec AMEL15-9S277HAVZ	Enclosed	23.5 mm	47.6 mm	1.06 in	0.93 "	1.87 in	26.8 mm	1.67 A	85 VAC 100 V	305 VAC 430 VDC	Through Hole	84 % 85 %	±1%	4-DIP Module	Household Appliances ITE (Commercial) Medical	1	85 °C	-40 °C	DC Input Capable Universal Input	15 W	0.5 %	CE cURus UKCA UL	9 V	0.106 lb	48 g	60335-1 60601-1 62368-1

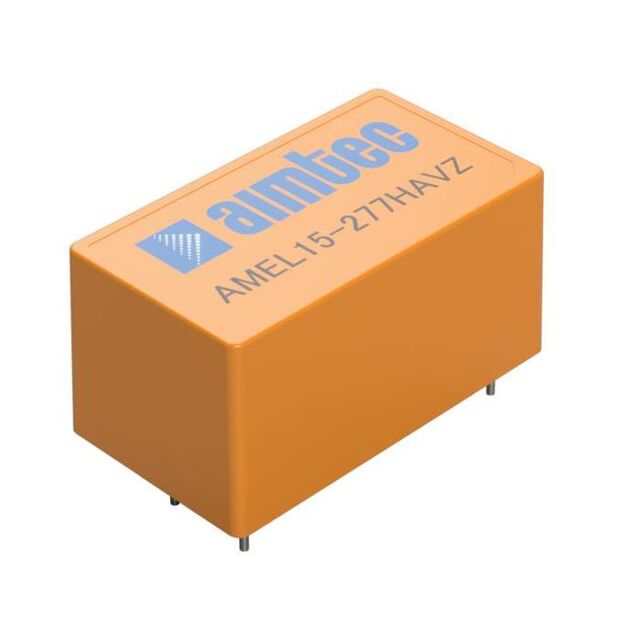

aimtec AMEL15-5S277HAVZ	Enclosed							3 A	85 VAC 100 V	305 VAC 430 VDC	Through Hole	85 %	±1%	4-DIP Module	Household Appliances ITE (Commercial) Medical	1	85 °C	-40 °C		15 W	0.5 %	CE UL	5 V	0.106 lb	48 g	60335-1 60601-1 62368-1
aimtec AMEL15-15S277HAVZ	Enclosed	23.5 mm	47.6 mm	1.06 in	0.93 "	1.87 in	26.8 mm	1 A	85 VAC 100 V	305 VAC 430 VDC	Through Hole	85 %	±1%	4-DIP Module	Household Appliances ITE (Commercial) Medical	1	85 °C	-40 °C	DC Input Capable Universal Input	15 W	0.5 %	CE cURus UKCA UL	15 V	0.106 lb	48 g	60335-1 60601-1 62368-1
