TSR 1 Series

Catalog

DC DC CONVERTER 1.8V 1.8W

Part	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Features	Efficiency

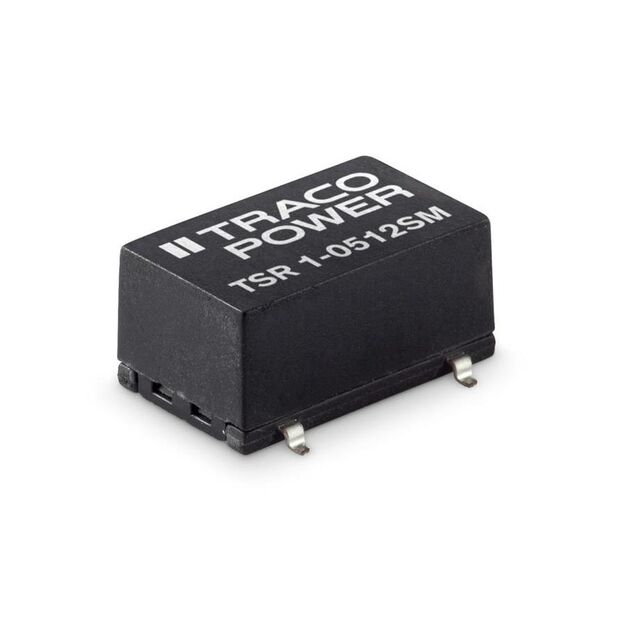

Traco Power TSR 1-2418SM	1 A	9.3 mm	0.3 in	0.37 in	7.6 mm	15.2 mm	0.6 "	-40 °C	85 °C	Linear Regulator Replacement	4.6 V	1.8 W	Surface Mount	1	10-SMD Module 6 Leads	36 V	1.8 V	ITE (Commercial)	SCP
Traco Power TSR 1-2412	1 A	7.5 mm	0.4 "	0.3 "	10.1 mm	11.7 mm	0.46 in	-40 °C	85 °C	Linear Regulator Replacement	4.6 V	1.2 W	Through Hole	1	3-SIP Module	36 V	1.2 V	ITE (Commercial)	SCP	74 %
Traco Power TSR 1-4865WI	1 A	8.6 mm	0.69 in	0.34 in	17.5 mm	12.1 mm	0.48 in	-40 °C	80 ¯C	Non-Isolated PoL Module	9 V		Through Hole	1	3-SIP Module	72 V	6.5 V	ITE (Commercial)		88 %
Traco Power TSR 1-4833WI	1 A	8.6 mm	0.69 in	0.34 in	17.5 mm	12.1 mm	0.48 in	-40 °C	80 ¯C	Non-Isolated PoL Module	9 V		Through Hole	1	3-SIP Module	72 V	3.3 V	ITE (Commercial)		83 %
Traco Power TSR 1-2415	1 A	7.5 mm	0.4 "	0.3 "	10.1 mm	11.7 mm	0.46 in	-40 °C	85 °C	Linear Regulator Replacement	4.6 V	1.5 W	Through Hole	1	3-SIP Module	36 V	1.5 V	ITE (Commercial)	SCP	78 %

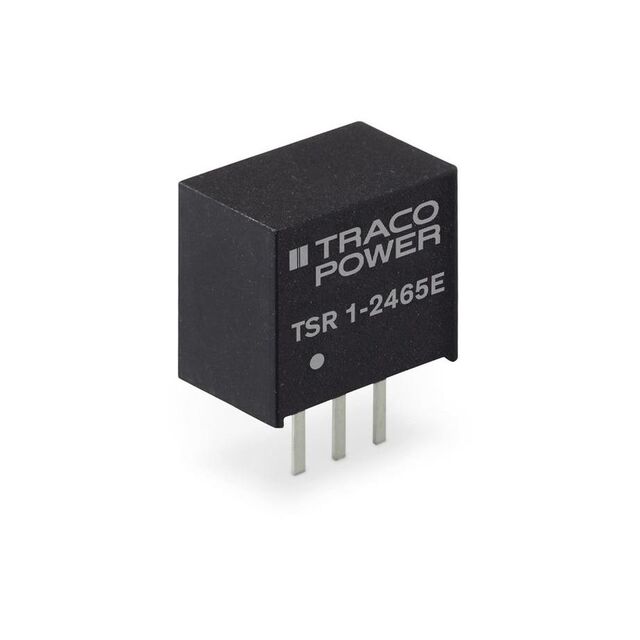

Traco Power TSR 1-2433E	1 A	7.5 mm	0.4 "	0.3 "	10.2 mm	11.6 mm	0.46 in	-40 °C	85 °C	Non-Isolated PoL Module	6 V		Through Hole	1	3-SIP Module	36 V	3.3 V	ITE (Commercial)		88 %
Traco Power TSR 1-24120SM	1 A	9.3 mm	0.3 in	0.37 in	7.6 mm	15.2 mm	0.6 "	-40 °C	85 °C	Linear Regulator Replacement	15 V	12 W	Surface Mount	1	10-SMD Module 6 Leads	36 V	12 V	ITE (Commercial)	SCP	95 %
Traco Power TSR 1-2433SM	1 A	9.3 mm	0.3 in	0.37 in	7.6 mm	15.2 mm	0.6 "	-40 °C	85 °C	Linear Regulator Replacement	4.75 V	3.3 W	Surface Mount	1	10-SMD Module 6 Leads	36 V	3.3 V	ITE (Commercial)	SCP	91 %
Traco Power TSR 1-4890WI	1 A	8.6 mm	0.69 in	0.34 in	17.5 mm	12.1 mm	0.48 in	-40 °C	80 ¯C	Non-Isolated PoL Module	14 V		Through Hole	1	3-SIP Module	72 V	9 V	ITE (Commercial)		90 %
Traco Power TSR 1-4850WI	1 A	8.6 mm	0.69 in	0.34 in	17.5 mm	12.1 mm	0.48 in	-40 °C	80 ¯C	Non-Isolated PoL Module	9 V		Through Hole	1	3-SIP Module	72 V	5 V	ITE (Commercial)		87 %
