R9A07 Series

Manufacturer: Renesas Electronics Corporation

Catalog

IC MPU RZ/T2M 600/800MHZ 320FBGA

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Co-Processors/DSP	Voltage - I/O	Core Processor	Speed	Mounting Type	Additional Interfaces	Ethernet	Number of Cores/Bus Width	USB	Security Features	Supplier Device Package [custom]	Package / Case	Ethernet	Display & Interface Controllers	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]
Renesas Electronics Corporation R9A07G075M22GBG#AC0	320-FBGA (17x17) 320-LFBGA (17x17)	-40 C	125 °C	Multimedia NEON™ SIMD	1.8 V 3.3 V	ARM® Cortex®-R52	600 MHz 800 MHz	Surface Mount	CANbus I2C SCI SPI WDT	10 Mbps 100 Mbps 1000 Mbps	2 32 Bit	USB 2.0 (1)

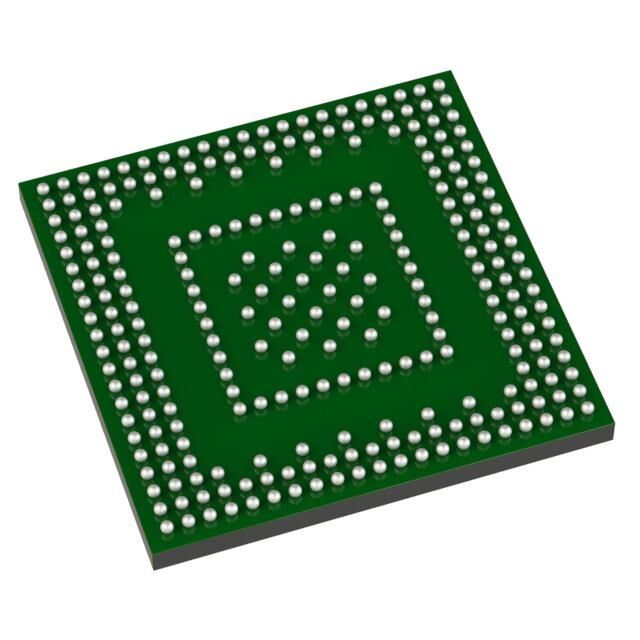

Renesas Electronics Corporation R9A07G043F01GBG#BC0	361-BGA	-40 ¯C	85 C			AndesCore™ AX45MP	1 GHz	Surface Mount	CANbus eMMC/SD/SDIO I2C SPI UART		1 16 Bit	USB 2.0 (2)	AES ECC GHASH RSA SHA-1 SHA-224 SHA-256 TRNG	13x13	361-LFBGA	GbE (2)
Renesas Electronics Corporation R9A07G063U01GBG#AC0	361-PBGA (13x13)	-40 ¯C	85 C		1.1 V 1.8 V 3.3 V	ARM® Cortex®-A55	1 GHz	Surface Mount	CANbus eMMC/SD/SDIO I2C SCI SPI UART	10 Mbps 100 Mbps 1000 Mbps	1 64 Bit	USB 2.0 (2)			361-BGA		LCD MIPI/CSI2
Renesas Electronics Corporation R9A07G075M22GBA#AC0	225-LFBGA (13x13)	-40 C	125 °C	Multimedia NEON™ SIMD	1.8 V 3.3 V	ARM® Cortex®-R52	600 MHz 800 MHz	Surface Mount	CANbus I2C SCI SPI WDT	10 Mbps 100 Mbps 1000 Mbps	2 32 Bit	USB 2.0 (1)			225-LFBGA

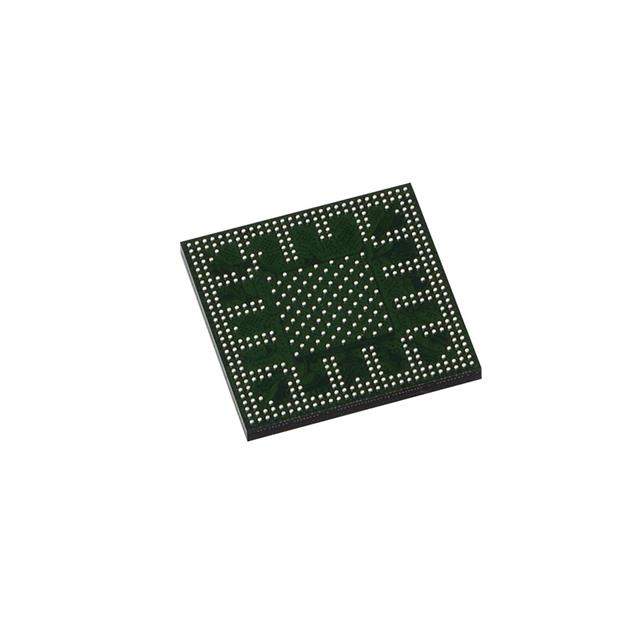

Renesas Electronics Corporation R9A07G044L24GBG#BC0	551-LFBGA (21x21)	-40 ¯C	85 C	ARM® Mali-G31	1.8 V 3.3 V	ARM® Cortex®-A55 ARM® Cortex®-M33	1.2 GHz 200 MHz	Surface Mount	CANbus eMMC/SD/SDIO I2C SPI UART	10 Mbps 100 Mbps 1000 Mbps		USB 2.0 (2)			551-LFBGA		MIPI-CSI MIPI-DSI	3	64 Bit
Renesas Electronics Corporation R9A07G043F00GBG#AC0	266-BGA (11x11)	-40 ¯C	85 C			AndesCore™ AX45MP	1 GHz	Surface Mount	CANbus eMMC/SD/SDIO I2C SPI UART		1 16 Bit	USB 2.0 (2)	AES ECC GHASH RSA SHA-1 SHA-224 SHA-256 TRNG		266-BGA	GbE (1)
Renesas Electronics Corporation R9A07G075M05GFP#AA0	176-LFQFP (24x24)	-40 C	125 °C	Multimedia NEON™ SIMD	1.8 V 3.3 V	ARM® Cortex®-R52	600 MHz 800 MHz	Surface Mount	CANbus I2C SCI SPI WDT	10 Mbps 100 Mbps 1000 Mbps	1 32 Bit	USB 2.0 (1)	Boot Security Crypto Accelerator JTAG TRNG		176-LQFP Exposed Pad
Renesas Electronics Corporation R9A07G075M28GBA#AC0	225-LFBGA (13x13)	-40 C	125 °C	Multimedia NEON™ SIMD	1.8 V 3.3 V	ARM® Cortex®-R52	600 MHz 800 MHz	Surface Mount	CANbus I2C SCI SPI WDT	10 Mbps 100 Mbps 1000 Mbps	2 32 Bit	USB 2.0 (1)	Boot Security Crypto Accelerator JTAG TRNG		225-LFBGA
Renesas Electronics Corporation R9A07G075M26GBA#AC0	225-LFBGA (13x13)	-40 C	125 °C	Multimedia NEON™ SIMD	1.8 V 3.3 V	ARM® Cortex®-R52	600 MHz 800 MHz	Surface Mount	CANbus I2C SCI SPI WDT	10 Mbps 100 Mbps 1000 Mbps	2 32 Bit	USB 2.0 (1)	Boot Security Crypto Accelerator JTAG TRNG		225-LFBGA

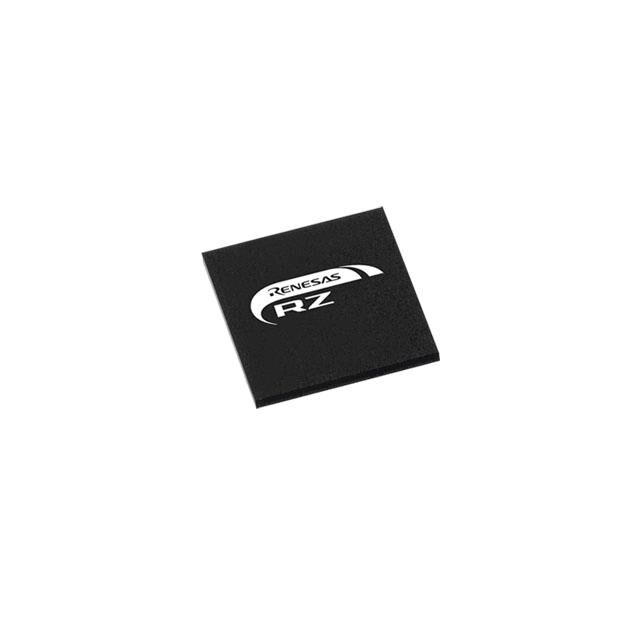

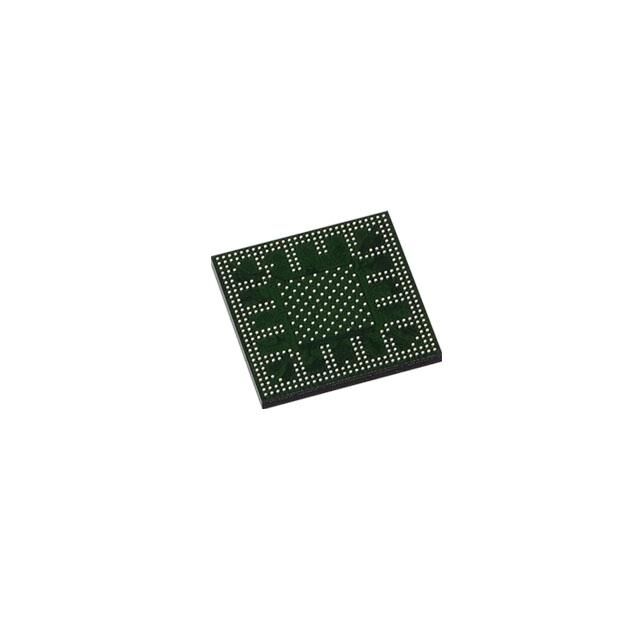

Renesas Electronics Corporation R9A07G054L23GBG#AC0	456-LFBGA (15x15)	-40 ¯C	85 C	ARM® Mali-G31 ARMÛ Mali-G31 Multimedia NEON™ SIMD	1.8 V 3.3 V	ARM® Cortex®-A55 ARM® Cortex®-M33 ARMÛ CortexÛ-A55 ARMÛ CortexÛ-M33	1.2 GHz 200 MHz	Surface Mount	CANbus eMMC/SD/SDIO I2C SPI UART	10 Mbps 100 Mbps 1000 Mbps		USB 2.0 (2)			456-LFBGA		LCD MIPI/CSI MIPI/DSI	3	64 Bit
