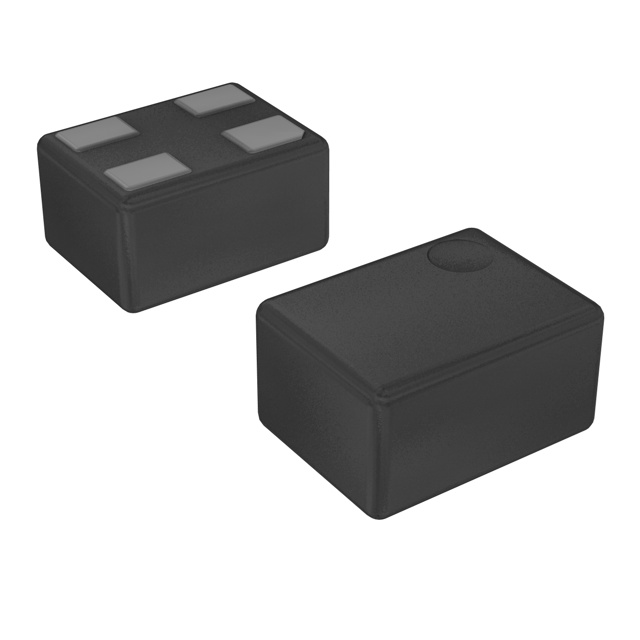

DSC6001 Series

Catalog

MEMS OSC ULP LVCMOS -20C-70C 50P

Part	Function	Frequency	Type	Ratings	Current - Supply (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Stability	Base Resonator	Package / Case	Height - Seated (Max) [Max] [z]
Microchip Technology DSC6001HE1B-011.0592T	Enable/Disable	11.0592 MHz	XO (Standard)	AEC-Q100	1.3 mA	0.047 in	1.2 mm	1.6 mm	0.063 in	-20 C	70 °C	Surface Mount	0.035 "	0.89 mm	CMOS	3.63 V	1.71 V	50 ppm	MEMS	4-VFLGA
Microchip Technology DSC6001CE2B-032.0000T	Enable/Disable	32 MHz	XO (Standard)	AEC-Q100	1.3 mA	0.098 in	2.5 mm	3.2 mm	0.126 in	-20 C	70 °C	Surface Mount	0.035 "		CMOS	3.63 V	1.71 V	25 ppm	MEMS	4-VDFN	0.9 mm
Microchip Technology DSC6001HI2B-012.0000T	Enable/Disable	12 MHz	XO (Standard)	AEC-Q100	1.3 mA	0.047 in	1.2 mm	1.6 mm	0.063 in	-40 °C	85 °C	Surface Mount	0.035 "	0.89 mm	CMOS	3.63 V	1.71 V	25 ppm	MEMS	4-VFLGA
Microchip Technology DSC6001CI2B-012.0000T	Enable/Disable	12 MHz	XO (Standard)		1.3 mA	0.098 in	2.5 mm	3.2 mm	0.126 in	-40 °C	85 °C	Surface Mount	0.035 "		CMOS	3.63 V	1.71 V	25 ppm	MEMS	4-VDFN	0.9 mm
Microchip Technology DSC6001HI3B-032K768	Enable/Disable	32.768 kHz	XO (Standard)	AEC-Q100	1.19 mA	0.047 in	1.2 mm	1.6 mm	0.063 in	-40 °C	85 °C	Surface Mount	0.035 "	0.89 mm	CMOS	3.63 V	1.71 V		MEMS	4-VFLGA
Microchip Technology DSC6001CI2B-012.0000	Enable/Disable	12 MHz	XO (Standard)		1.3 mA	0.098 in	2.5 mm	3.2 mm	0.126 in	-40 °C	85 °C	Surface Mount	0.035 "		CMOS	3.63 V	1.71 V	25 ppm	MEMS	4-VDFN	0.9 mm
Microchip Technology DSC6001MI2B-016.0000	Enable/Disable	16 MHz	XO (Standard)		1.3 mA	0.063 in	1.6 mm	2 mm	0.079 in	-40 °C	85 °C	Surface Mount	0.035 "		CMOS	3.63 V	1.71 V	25 ppm	MEMS	4-VFLGA	0.9 mm
Microchip Technology DSC6001JE1B-010.0000T	Enable/Disable	10 MHz	XO (Standard)		1.3 mA	0.079 in	2 mm	2.5 mm	0.098 "	-20 C	70 °C	Surface Mount	0.035 "		CMOS	3.63 V	1.71 V	50 ppm	MEMS	4-VLGA	0.9 mm
Microchip Technology DSC6001HI2B-008.0000T	Enable/Disable	8 MHz	XO (Standard)	AEC-Q100	1.3 mA	0.047 in	1.2 mm	1.6 mm	0.063 in	-40 °C	85 °C	Surface Mount	0.035 "	0.89 mm	CMOS	3.63 V	1.71 V	25 ppm	MEMS	4-VFLGA
Microchip Technology DSC6001CI2B-004.0000T	Enable/Disable	4 MHz	XO (Standard)		1.3 mA	0.098 in	2.5 mm	3.2 mm	0.126 in	-40 °C	85 °C	Surface Mount	0.035 "		CMOS	3.63 V	1.71 V	25 ppm	MEMS	4-VDFN	0.9 mm
