ADIS16204 Series

Catalog

BOARD EVAL FOR ADIS16204/PCB

Part	Sensing Range	Sensitivity	Supplied Contents	Sensor Type	Utilized IC / Part	Embedded	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity (LSB/g) [y]	Sensitivity (LSB/g) [x]	Mounting Type	Axis [y]	Axis [x]	Acceleration Range [Max] [y]	Acceleration Range [Max] [x]	Acceleration Range [Min] [x]	Acceleration Range [Min] [y]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Output Type	Type	Bandwidth	Package / Case	Features	Operating Temperature [Min]	Operating Temperature [Max]

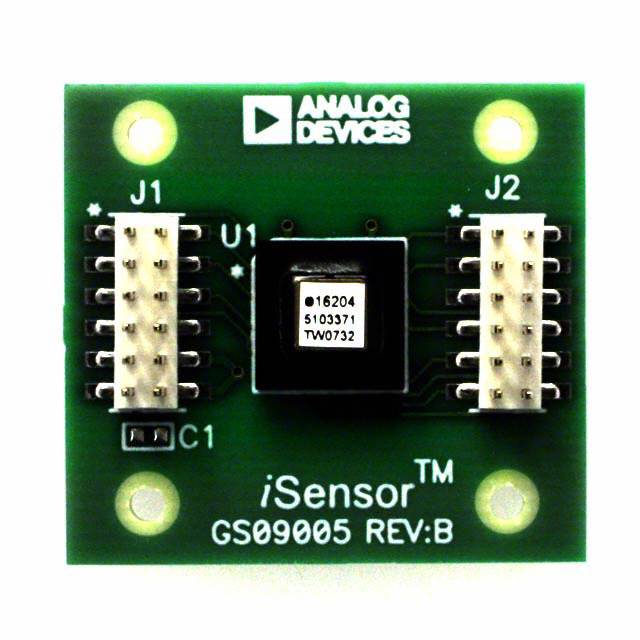

Analog Devices ADIS16204/PCBZ	37 g 70 g	8.407 mg/LSB 17.125 mg/LSB	Board(s)	Accelerometer 2 Axis	ADIS16204		Serial SPI	3.6 V	3 V
Analog Devices ADIS16204BCCZ								3.6 V	3 V	118 LSB/g	58 LSB/g	Surface Mount	Y	X	37 g	70 g	-70 g	-37 g	9.2	16-LGA	9.35	SPI	Digital	400 Hz	16-BFLGA	Sleep Mode Temperature Sensor	-40 °C	105 ░C
