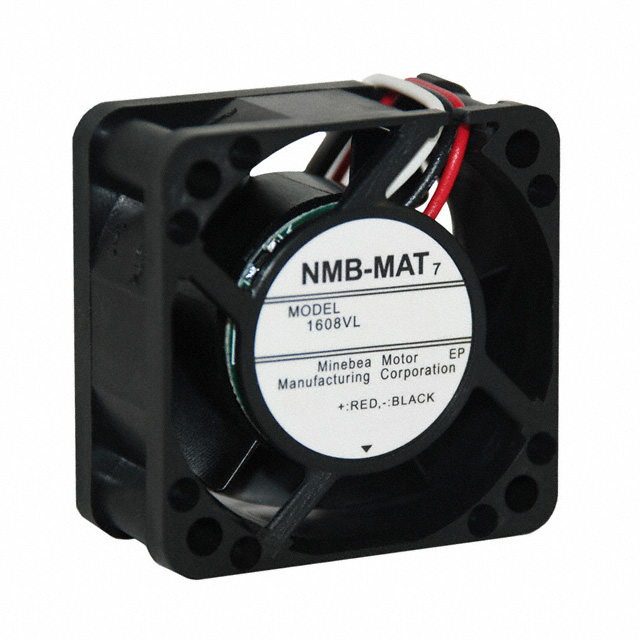

1608VL Series

Catalog

FAN AXIAL 40.1X20MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Features	Voltage - Rated	Approval Agency	Power (Watts)	Weight [custom]	Weight [custom]	Termination	RPM	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Air Flow	Air Flow	Bearing Type	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Static Pressure	Static Pressure
NMB TECHNOLOGIES 1608VL-04W-B59-B50	40000 Hrs	Plastic	110 mA	Plastic	7 V	13.2 VDC	Auto Restart Speed Sensor (Tach)	12 VDC	CE UL VDE	1.32 W	0.088 lb	39.92 g	3 Wire Leads	8500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.286 mł/min	10.2 CFM	Ball	31.4 dB(A)	70 °C	-10 °C	20 mm	76.6 Pa	0.308 in H2O
NMB TECHNOLOGIES 1608VL-04W-B49-B00	40000 Hrs	Plastic	85 mA	Plastic	7 V	13.2 VDC	Auto Restart Locked Rotor Sensor	12 VDC	CE UL VDE	1.02 W	0.088 lb	39.92 g	3 Wire Leads	7500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.246 m³/min	8.8 CFM	Ball	29 dB(A)	70 °C	-10 °C	20 mm	58.8 Pa	0.236 in H2O
NMB TECHNOLOGIES 1608VL-05W-B60-B00	40000 Hrs	Plastic	100 mA	Plastic	14 VDC	26.4 VDC	Auto Restart	24 VDC	CE UL VDE	2.4 W	0.088 lb	39.92 g	2 Wire Leads	9500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.316 m³/min	11.3 CFM	Ball	34.6 dB(A)	70 °C	-10 °C	20 mm	99.3 Pa	0.399 in H2O
NMB TECHNOLOGIES 1608VL-05W-B59-B00	40000 Hrs	Plastic	70 mA	Plastic	14 VDC	26.4 VDC	Auto Restart Locked Rotor Sensor	24 VDC	CE UL VDE	1.68 W	0.088 lb	39.92 g	3 Wire Leads	8500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.286 mł/min	10.2 CFM	Ball	31.4 dB(A)	70 °C	-10 °C	20 mm	76.6 Pa	0.308 in H2O
NMB TECHNOLOGIES 1608VL-05W-B69-B50	40000 Hrs	Plastic	100 mA	Plastic	14 VDC	26.4 VDC	Speed Sensor (Tach)	24 VDC	CE UL VDE	2.4 W	0.088 lb	39.92 g	3 Wire Leads	9500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.316 m³/min	11.3 CFM	Ball	34.6 dB(A)	70 °C	-10 °C	20 mm	99.3 Pa	0.399 in H2O
NMB TECHNOLOGIES 1608VL-05W-B49-B50	40000 Hrs	Plastic	50 mA	Plastic	14 VDC	26.4 VDC	Auto Restart Speed Sensor (Tach)	24 VDC	CE UL VDE	1.2 W	0.088 lb	39.92 g	3 Wire Leads	7500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.246 m³/min	8.8 CFM	Ball	29 dB(A)	70 °C	-10 °C	20 mm	58.8 Pa	0.236 in H2O
NMB TECHNOLOGIES 1608VL-05W-B40-B00	40000 Hrs	Plastic	50 mA	Plastic	14 VDC	26.4 VDC	Auto Restart	24 VDC	CE UL VDE	1.2 W	0.088 lb	39.92 g	2 Wire Leads	7500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.246 m³/min	8.8 CFM	Ball	29 dB(A)	70 °C	-10 °C	20 mm	58.8 Pa	0.236 in H2O
NMB TECHNOLOGIES 1608VL-05W-B59-B50	40000 Hrs	Plastic	70 mA	Plastic	14 VDC	26.4 VDC	Auto Restart Speed Sensor (Tach)	24 VDC	CE UL VDE	1.68 W	0.088 lb	39.92 g	3 Wire Leads	8500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.286 mł/min	10.2 CFM	Ball	31.4 dB(A)	70 °C	-10 °C	20 mm	76.6 Pa	0.308 in H2O
NMB TECHNOLOGIES 1608VL-04W-B69-B50	40000 Hrs	Plastic		Plastic	7 V	13.2 VDC	Auto Restart Speed Sensor (Tach)	12 VDC	CE UL VDE	1.56 W	0.088 lb	39.92 g	3 Wire Leads	9500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.316 m³/min	11.3 CFM	Ball	34.6 dB(A)	70 °C	-10 °C	20 mm	99.3 Pa	0.399 in H2O
NMB TECHNOLOGIES 1608VL-04W-B60-B00	40000 Hrs	Plastic		Plastic	7 V	13.2 VDC	Auto Restart	12 VDC	CE UL VDE	1.56 W	0.088 lb	39.92 g	2 Wire Leads	9500 RPM	40.1 mm	40.1 mm	Tubeaxial	0.316 m³/min	11.3 CFM	Ball	34.6 dB(A)	70 °C	-10 °C	20 mm	99.3 Pa	0.399 in H2O
