05125GS Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

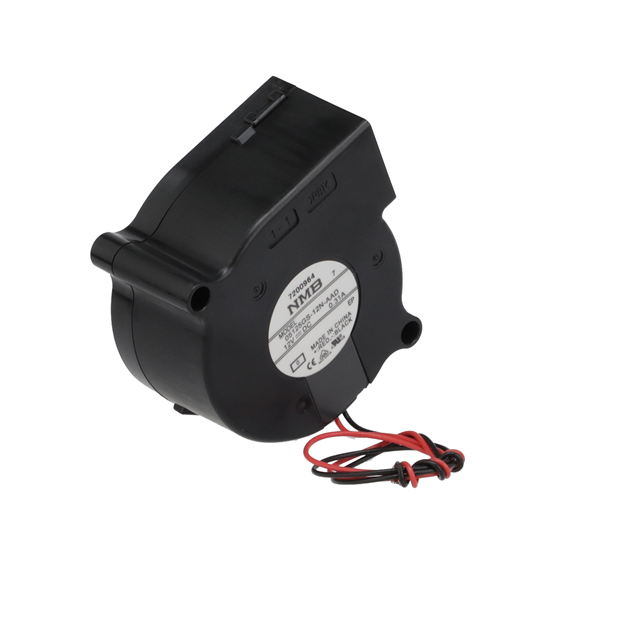

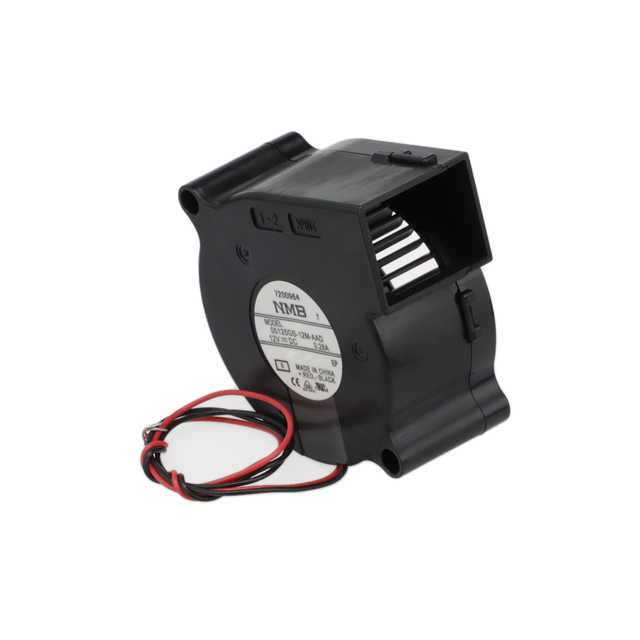

FAN BLOWER 51X25MM 12VDC WIRE
| Part | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Termination | Voltage - Rated | Features | Static Pressure | Static Pressure | Power (Watts) | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Width [y] | Fan Type | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Air Flow | Air Flow | Noise | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | 0.2 A | 50000 Hrs | Plastic | 13.8 VDC | 6 VDC | 2 Wire Leads | 12 VDC | Auto Restart | 0.68 in H2O | 169.4 Pa | 2.4 W | Ball | 70 °C | -10 °C | 25 mm | Blower | 51 mm | Square/Rounded | 51 mm | 0.199 mł/min | 7.1 CFM | 39 dB(A) | 5700 RPM |
 NMB TECHNOLOGIES | 12 VDC | |||||||||||||||||||||||
 NMB TECHNOLOGIES |
