DF50A Series

Catalog

HEADERS & WIRE HOUSINGS 15P 1.0MM PITCH CRIMP HOUSING

Part	Connector Type	Number of Positions	Contact Type	Contact Termination	Insulation Material	Number of Rows	Mounting Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Fastening Type	Note	Mated Stacking Heights	Number of Positions Loaded	Insulation Height	Insulation Height	Style	Material Flammability Rating	Voltage Rating	Features	Contact Finish - Post	Contact Finish - Mating	Shrouding	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric Co Ltd DF50A-15S-1C	Socket	15	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Black	85 °C	-35 °C	1 mm	0.039 in	Latch Lock

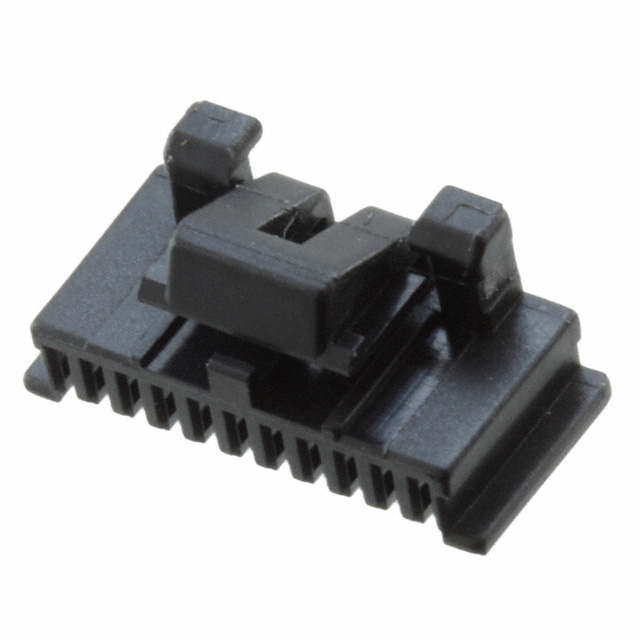

Hirose Electric Co Ltd DF50A-11S-1C	Socket	11	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Black	85 °C	-35 °C	1 mm	0.039 in	Latch Lock	Contacts Not Included

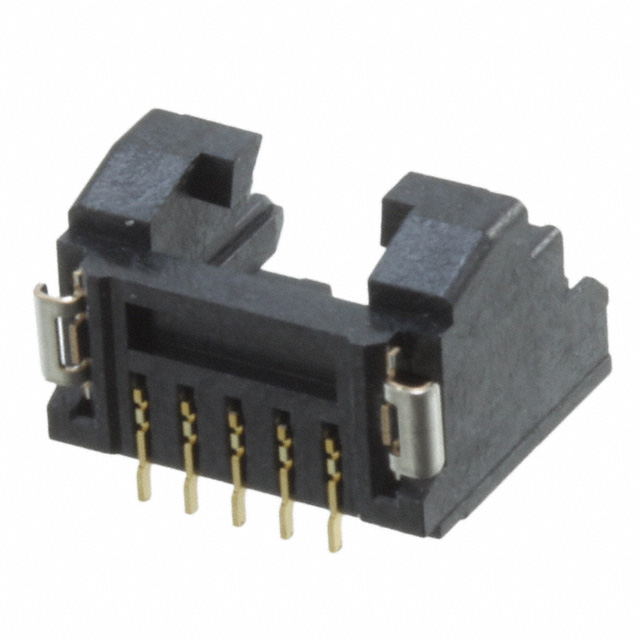

Hirose Electric Co Ltd DF50A-5P-1V(51)	Header	5	Male Blade		Polyester	1	Surface Mount		85 °C	-35 °C			Push-Pull		7.35 mm	All	0.278 "	7.06 mm	Board to Cable/Wire	UL94 V-0	100 V	Solder Retention	Gold	Gold	Shrouded - 4 Wall	Black	Solder	1 mm	0.039 in	Brass

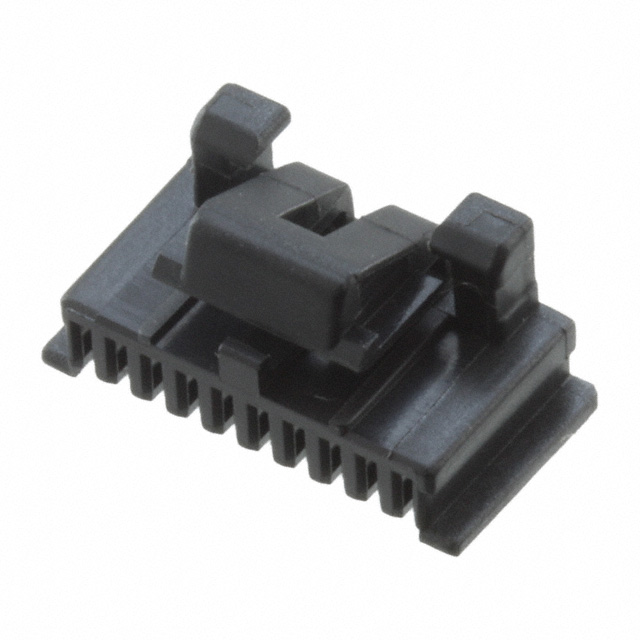

Hirose Electric Co Ltd DF50A-10S-1C	Socket	10	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Black	85 °C	-35 °C	1 mm	0.039 in	Latch Lock	Contacts Not Included

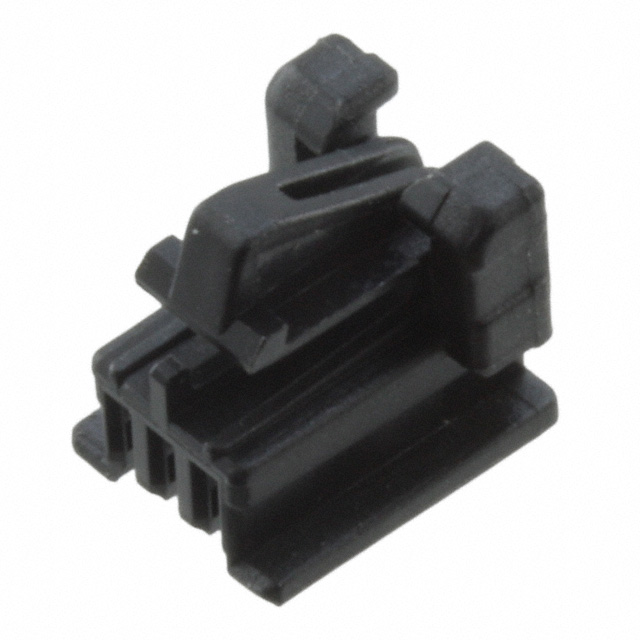

Hirose Electric Co Ltd DF50A-3S-1C	Socket		Female Socket	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Black	85 °C	-35 °C	1 mm	0.039 in	Latch Lock	Contacts Not Included

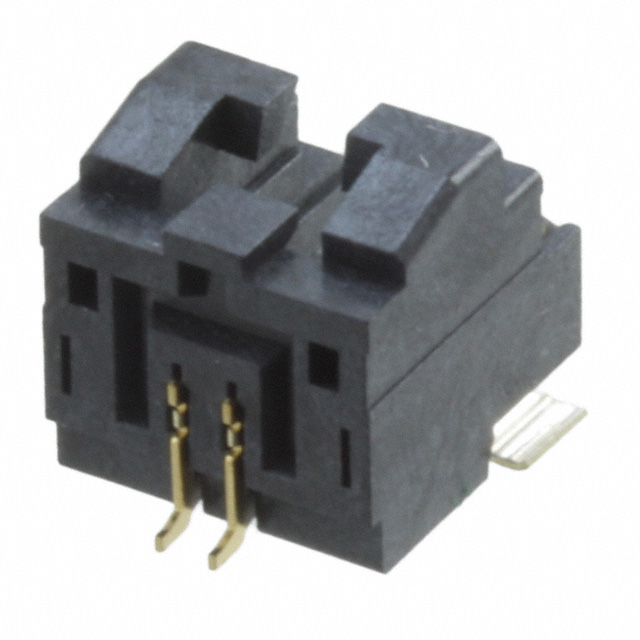

Hirose Electric Co Ltd DF50A-2P-1H(51)	Header	2	Male Blade		Polyester	1	Right Angle Surface Mount		85 °C	-35 °C			Push-Pull			All	0.239 in	6.07 mm	Board to Cable/Wire	UL94 V-0	100 V	Solder Retention	Gold	Gold	Shrouded - 4 Wall	Black	Solder	1 mm	0.039 in	Brass	2 µin	0.051 µm	2 µin	0.051 µm

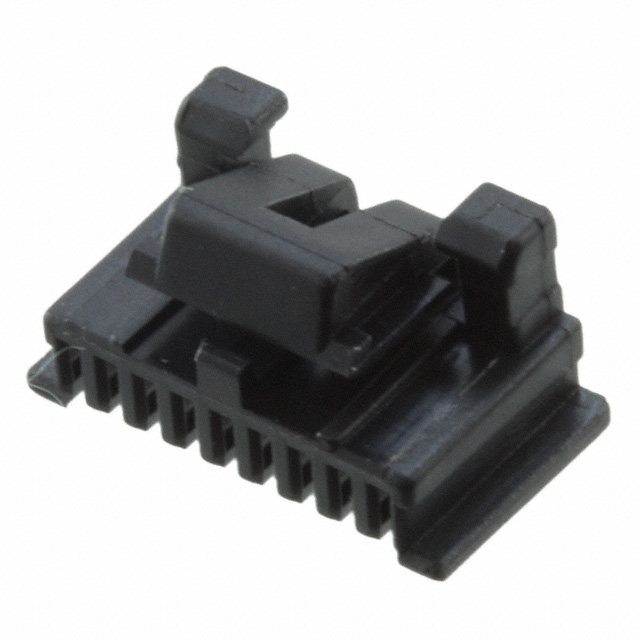

Hirose Electric Co Ltd DF50A-9S-1C	Socket	9	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Black	85 °C	-35 °C	1 mm	0.039 in	Latch Lock	Contacts Not Included

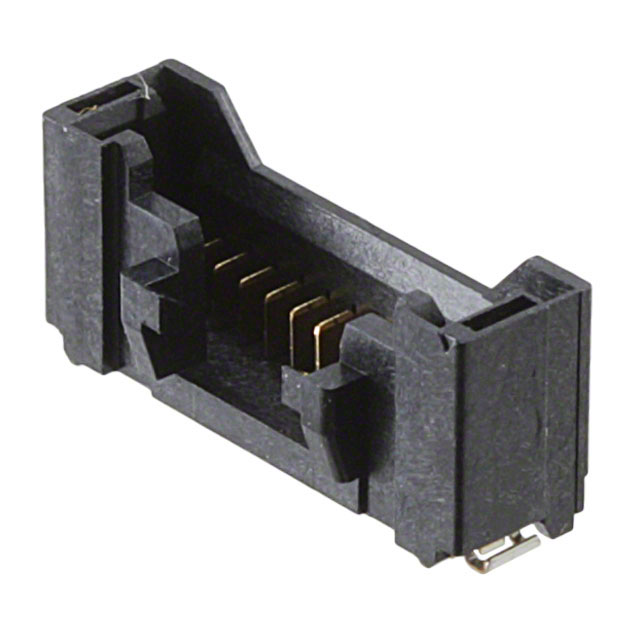

Hirose Electric Co Ltd DF50A-13P-1V(51)	Header	13	Male Blade		Polyester	1	Surface Mount		85 °C	-35 °C			Push-Pull		7.35 mm	All	0.278 "	7.06 mm	Board to Cable/Wire	UL94 V-0	100 V	Solder Retention	Gold	Gold	Shrouded - 4 Wall	Black	Solder	1 mm	0.039 in	Brass

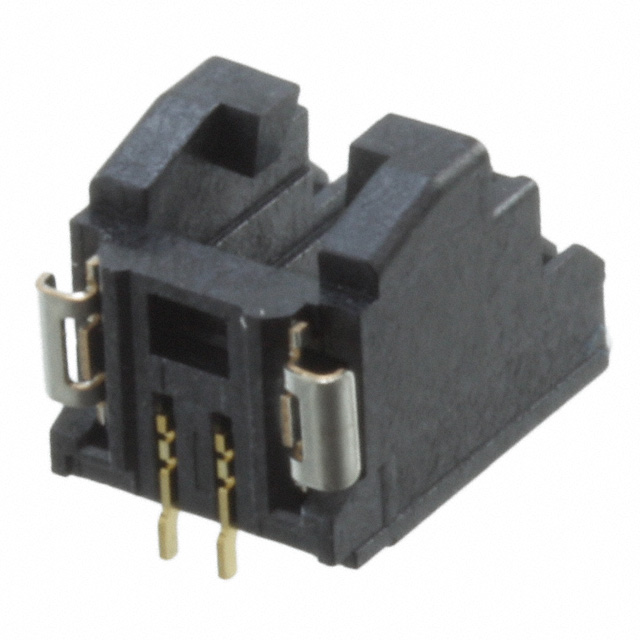

Hirose Electric Co Ltd DF50A-2P-1V(51)	Header	2	Male Blade		Polyester	1	Surface Mount		85 °C	-35 °C			Push-Pull		7.35 mm	All	0.278 "	7.06 mm	Board to Cable/Wire	UL94 V-0	100 V	Solder Retention	Gold	Gold	Shrouded - 4 Wall	Black	Solder	1 mm	0.039 in	Brass

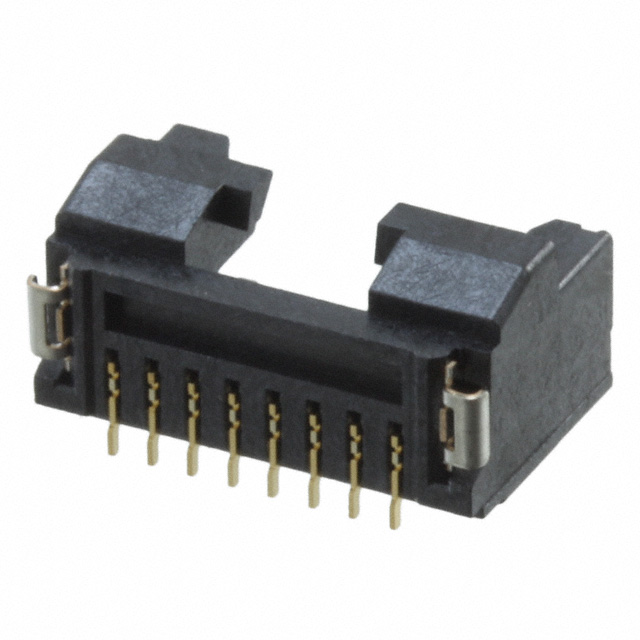

Hirose Electric Co Ltd DF50A-8P-1V(51)	Header	8	Male Blade		Polyester	1	Surface Mount		85 °C	-35 °C			Push-Pull		7.35 mm	All	0.278 "	7.06 mm	Board to Cable/Wire	UL94 V-0	100 V	Solder Retention	Gold	Gold	Shrouded - 4 Wall	Black	Solder	1 mm	0.039 in	Brass
