C4126 Series
Manufacturer: Prysmian Group
Beta
⌘K

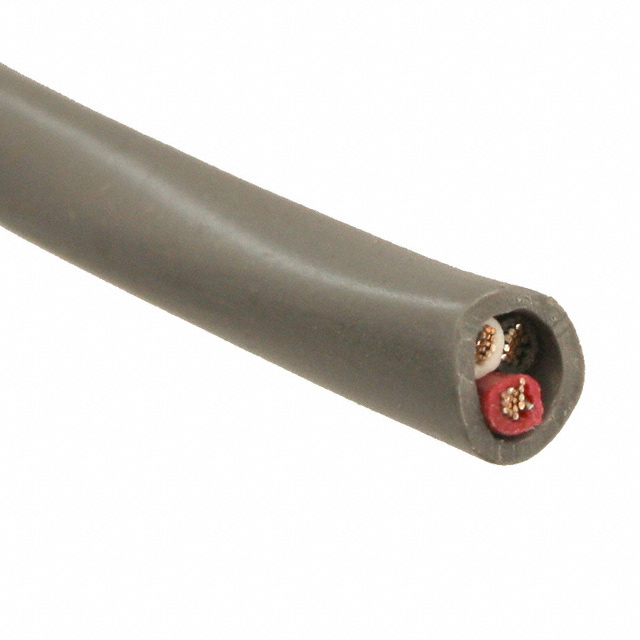

CABLE 3COND 18AWG GRAY
| Part | Usage | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Wire Gauge | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Communication Control | Multi-Conductor | -20 ░C | 105 ░C | 300 VDC | 18 AWG | Copper Tinned | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Gray | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 3 | 0.236 " | 5.99 mm | 304.8 m | 1000 ft |
Prysmian Group | Communication Control | Multi-Conductor | -20 ░C | 105 ░C | 300 VDC | 18 AWG | Copper Tinned | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | Gray | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 3 | 0.236 " | 5.99 mm | 304.8 m | 1000 ft |
