ATF22V10B Series
Manufacturer: Microchip Technology
Beta
⌘K
SPLD ATF22V10B FAMILY 500 GATES 10 MACRO CELLS 83.3MHZ CMOS TECHNOLOGY 5V 28-PIN CLLCC
| Part | Programmable Type | Number of Macrocells | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Mounting Type | Package / Case | Voltage - Input | Speed | Package / Case [custom] | Package / Case [custom] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

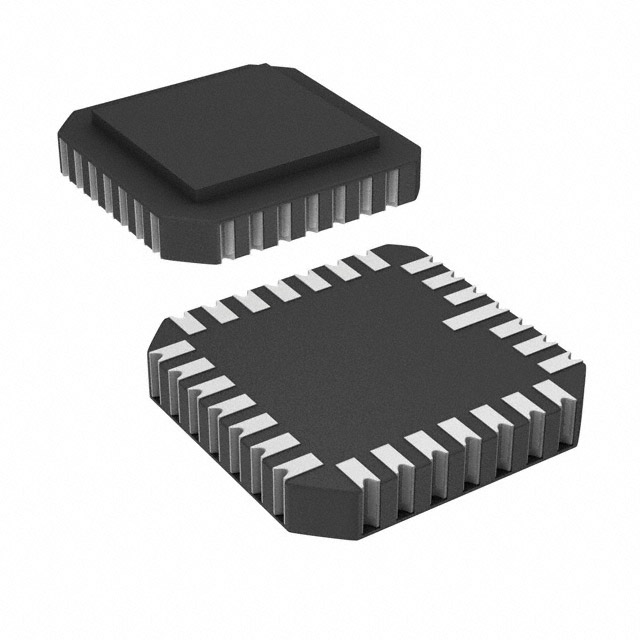

 Microchip Technology | EE PLD | 10 | 28-LCC | 11.45 | 11.45 | Surface Mount | 28-CLCC | 5 VDC | 15 ns | ||||
 Microchip Technology | EE PLD | 10 | 28-PLCC (11.51x11.51) | Surface Mount | 28-LCC (J-Lead) | 5 VDC | 15 ns | ||||||
Microchip Technology | EE PLD | 10 | 28-PLCC (11.51x11.51) | Surface Mount | 28-LCC (J-Lead) | 5 VDC | 15 ns | ||||||
Microchip Technology | EE PLD | 10 | 28-PLCC (11.51x11.51) | Surface Mount | 28-LCC (J-Lead) | 5 VDC | 20 ns | ||||||
 Microchip Technology | EE PLD | 10 | 24-SOIC | Surface Mount | 24-SOIC | 5 VDC | 15 ns | 7.5 mm | 0.295 in | ||||
Microchip Technology | EE PLD | 10 | 24-CDIP | Through Hole | 24-CDIP | 5 VDC | 15 ns | ||||||
 Microchip Technology | EE PLD | 10 | 24-CDIP | Through Hole | 24-CDIP | 5 VDC | 10 ns | ||||||
 Microchip Technology | EE PLD | 10 | 24-PDIP | Through Hole | 24-DIP | 5 VDC | 20 ns | 0.3 in | 7.62 mm |
