KN13C0.7 Series

Board to Board & Mezzanine Connectors FPC Header 0.4mm 2 point contact

Manufacturer: Hirose Electric Co Ltd

Catalog

Board to Board & Mezzanine Connectors FPC Header 0.4mm 2 point contact

Catalog

Board to Board & Mezzanine Connectors FPC Header 0.4mm 2 point contact

Part	Pitch	Pitch	Mounting Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Features	Mated Stacking Heights	Connector Type	Number of Positions	Contact Finish	Height Above Board [z]	Height Above Board [z]
Hirose Electric Co Ltd KN13C0.7-16DS-0.4V(895)	0.4 mm	0.016 in	Surface Mount	2	1.97 Áin	0.05 Ám	0.028 in	0.71 mm	Pick and Place Solder Retention	0.7 mm	Receptacle Center Strip Contacts	16	Gold

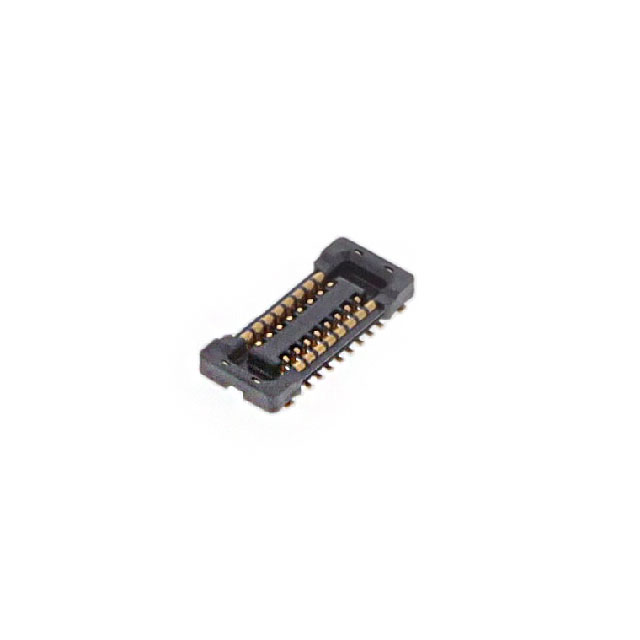

Hirose Electric Co Ltd KN13C0.7-16DS-0.4V(800)	0.4 mm	0.016 in	Surface Mount	2	1.97 Áin	0.05 Ám	0.028 in	0.71 mm	Pick and Place Solder Retention	0.7 mm	Receptacle Center Strip Contacts	16	Gold

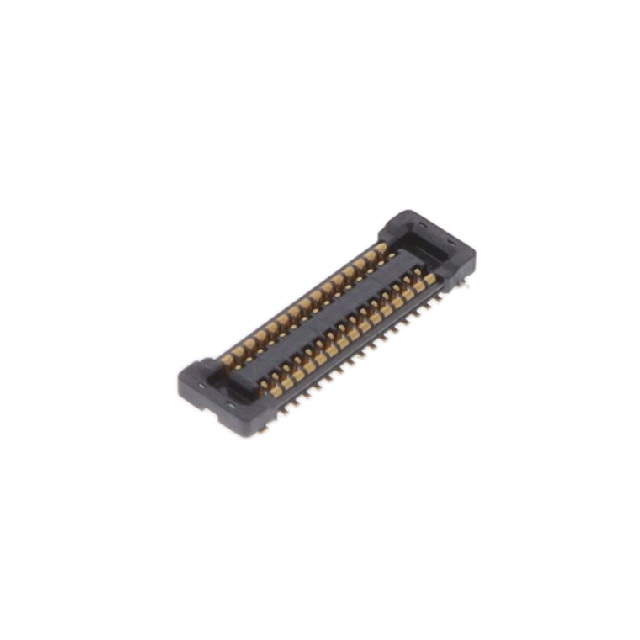

Hirose Electric Co Ltd KN13C0.7-30DS-0.4V(800)	0.4 mm	0.016 in	Surface Mount	2	1.97 Áin	0.05 Ám	0.028 in	0.71 mm	Pick and Place Solder Retention	0.7 mm	Receptacle Center Strip Contacts	30	Gold
Hirose Electric Co Ltd KN13C0.7-24DP-0.4V(895)	0.4 mm	0.016 in	Surface Mount	2	1.97 Áin	0.05 Ám			Pick and Place Solder Retention	0.7 mm	Header Outer Shroud Contacts	24	Gold	0.57 mm	0.022 in
