A3D-44DA Series

Catalog

CONN RCPT 44POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Applications	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Mounting Type	Contact Type	Material Flammability Rating	Contact Finish - Post	Style	Fastening Type	Termination	Voltage Rating	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Number of Positions	Insulation Height	Insulation Height	Insulation Color	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post

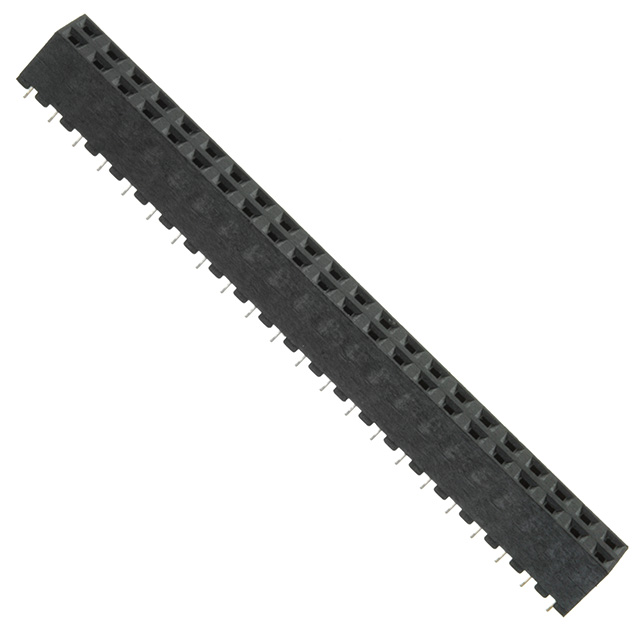

Hirose Electric Co Ltd A3D-44DA-2DSG	39.4 çin	1 çm	Square	Polybutylene Terephthalate (PBT)	Phosphor Bronze	General Purpose Telecommunications	2 mm	0.079 in	Receptacle	Through Hole	Female Socket	UL94 V-0	Tin	Board to Board Cable	Push-Pull	Solder	200 VAC	Gold	All	8 µin	0.203 µm	2	44	0.165 in	4.2 mm	Black	5.1 mm 6 mm	-55 C	85 °C	0.079 "	2 mm

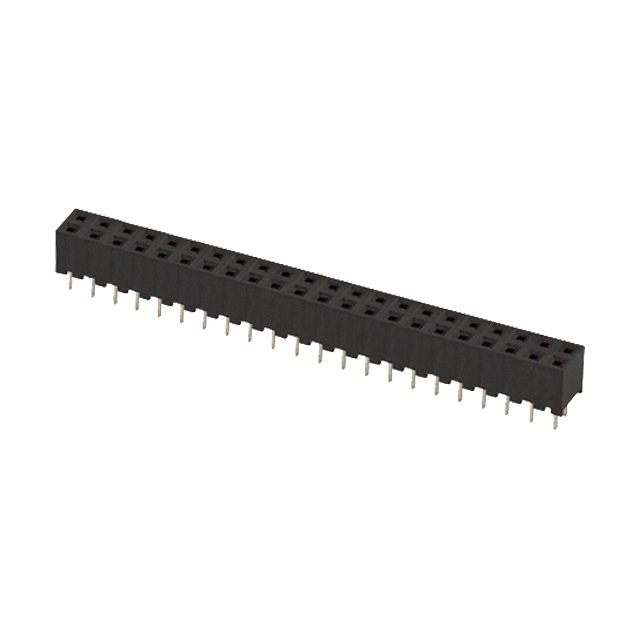

Hirose Electric Co Ltd A3D-44DA-2DSE	39.4 çin	1 çm	Square	Polybutylene Terephthalate (PBT)	Phosphor Bronze	General Purpose Telecommunications	2 mm	0.079 in	Receptacle	Through Hole	Female Socket	UL94 V-0	Tin	Board to Board Cable	Push-Pull	Solder	200 VAC	Gold	All	8 µin	0.203 µm	2	44	0.165 in	4.2 mm	Black	5.1 mm 6 mm	-55 C	85 °C	0.079 "	2 mm	0.05 "	1.27 mm
