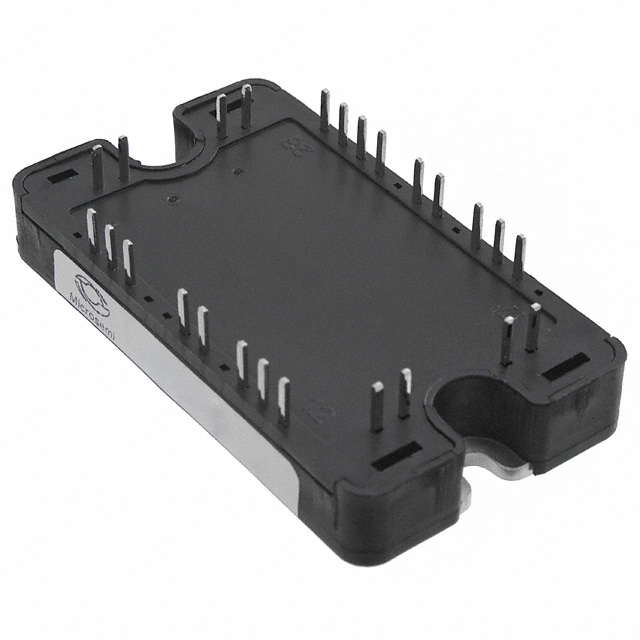

APTGT50DDA120T3G-Module Series

1700V/Triple Dual common source/IGBT modules

Catalog

1700V/Triple Dual common source/IGBT modules

Part	Current - Collector Cutoff (Max) [Max]	IGBT Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Power - Max [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Mounting Type	Input	Voltage - Collector Emitter Breakdown (Max) [Max]
Microchip Technology APTGT50H170TG	250 µA	Trench Field Stop	Full Bridge Inverter	150 °C	-40 °C	75 A	1700 V	SP4	312 W	SP4	2.4 V	4.4 nF	Chassis Mount	Standard
Microchip Technology APTGT50A170TG	250 µA	Trench Field Stop	Half Bridge	150 °C	-40 °C	75 A	1700 V	SP4	312 W	SP4	2.4 V	4.4 nF	Chassis Mount	Standard
Microchip Technology APTGT50DDA120T3G	250 µA	Trench Field Stop	Dual Boost Chopper	175 °C	-40 C	75 A		SP3	270 W	SP3	2.1 V	3.6 nF	Chassis Mount	Standard	1200 V
Microchip Technology APTGT50TL60T3G	250 µA	Trench Field Stop	Three Level Inverter	175 °C	-40 C	80 A		SP3	176 W	SP3	1.9 V	3.15 nF	Chassis Mount	Standard	600 V
Microchip Technology APTGT50DH120TG	250 µA	Trench Field Stop	Asymmetrical Bridge	150 °C	-40 °C	75 A		SP4	277 W	SP4	2.1 V	3.6 nF	Chassis Mount	Standard	1200 V
Microchip Technology APTGT50A170T1G	250 µA	Trench Field Stop	Half Bridge	150 °C	-40 °C	75 A	1700 V	SP1	312 W	SP1	2.4 V	4.4 nF	Chassis Mount	Standard
Microchip Technology APTGT50TDU60PG	250 µA	Trench Field Stop	Dual Triple	175 °C	-40 C	80 A		SP6-P	176 W	SP6	1.9 V	3.15 nF	Chassis Mount	Standard	600 V
Microchip Technology APTGT50H60T1G	250 µA	Trench Field Stop	Full Bridge Inverter	175 °C	-40 C	80 A		SP1	176 W	SP1	1.9 V	3.15 nF	Chassis Mount	Standard	600 V
Microchip Technology APTGT50DH170TG	250 µA	Trench Field Stop	Asymmetrical Bridge	150 °C	-40 °C	75 A	1700 V	SP4	312 W	SP4	2.4 V	4.4 nF	Chassis Mount	Standard
Microchip Technology APTGT50DU120TG	250 µA	Trench Field Stop	Common Source Dual	150 °C	-40 °C	75 A		SP4	277 W	SP4	2.1 V	3.6 nF	Chassis Mount	Standard	1200 V

Catalog

1700V/Triple Dual common source/IGBT modules

Key Features

• + Configuration: Triple Dual common source

• + VCES (V): 600

• + VCESat (V): 1.5

• + Current (A) Tc=80C: 50

• + Silicon type: TRENCH 3 IGBT

• + Package: SP6P

Description
