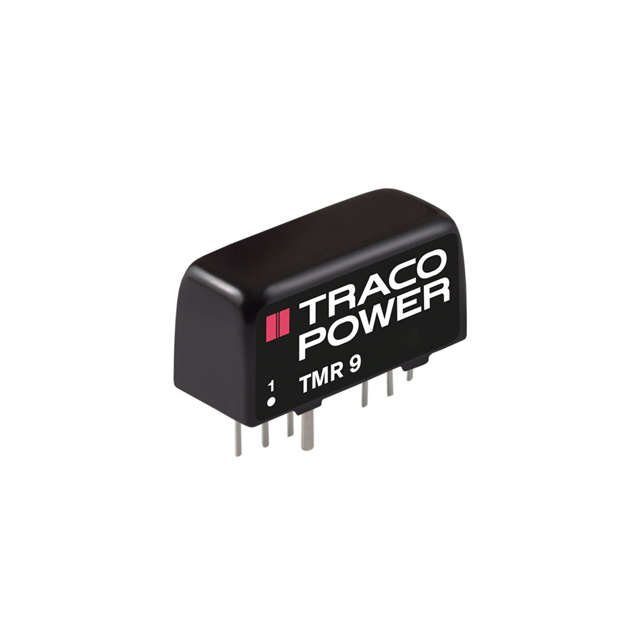

TMR 9 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 9V 9W
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 1 | Power (Watts) | Package / Case | Applications | Voltage - Input (Min) [Min] | Type | Features | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Current - Output (Max) [Max] | Efficiency | Voltage - Input (Max) [Max] | Voltage - Isolation | Approval Agency | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 9 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 9 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 1 | 1 A | 87 % | 18 V | 1.6 kV | ||||
 Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 12 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 18 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 1 | 750 mA | 89 % | 75 V | 1.6 kV | CB cURus | |||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 15 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 18 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 2 | 0.3 A | 87 % | 36 V | 1.6 kV | -15 V | |||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 9 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 18 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 1 | 1 A | 88 % | 36 V | 1.6 kV | ||||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 5 V | 8 W | 8-SIP Module 6 Leads | ITE (Commercial) | 9 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 2 | 85 % | 18 V | 1.6 kV | -5 V | 800 mA | 800 mA | ||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 24 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 18 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 1 | 375 mA | 89 % | 75 V | 1.6 kV | CB cURus | |||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 12 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 36 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 1 | 750 mA | 89 % | 75 V | 1.6 kV | ||||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 15 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 18 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 2 | 0.3 A | 87 % | 75 V | 1.6 kV | CB cURus | -15 V | ||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 24 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 9 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 1 | 375 mA | 89 % | 36 V | 1.6 kV | CB cURus | |||
Traco Power | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 15 V | 9 W | 8-SIP Module 6 Leads | ITE (Commercial) | 9 V | Isolated Module | Remote On/Off SCP | Through Hole | -40 °C | 85 °C | 2 | 0.3 A | 89 % | 18 V | 1.6 kV | -15 V |
