6-Bit Single Output DAC w/Command Code I2C™
Key Features
- 65 Taps: 64 Resistors with Taps to Full-Scale and Zero-Scale (Wiper Code 00h to 40h)
- VREF Pull-down Resistance: 20 kOhms (typical)
- Slave Addresses: 5Ch and 7Ch
- Brown-out Reset Protection (1.5V typical)
- Power-on Default Wiper Setting (Mid-scale)
- Low-Power Operation: 90 µA Static Current (typical)
- 1.8V to 5.5V
- Low Tempco: 15 ppm (typical)
- 100 kHz (typical) Bandwidth (-3 dB) Operation
- Extended Temperature Range (-40°C to +125°C)

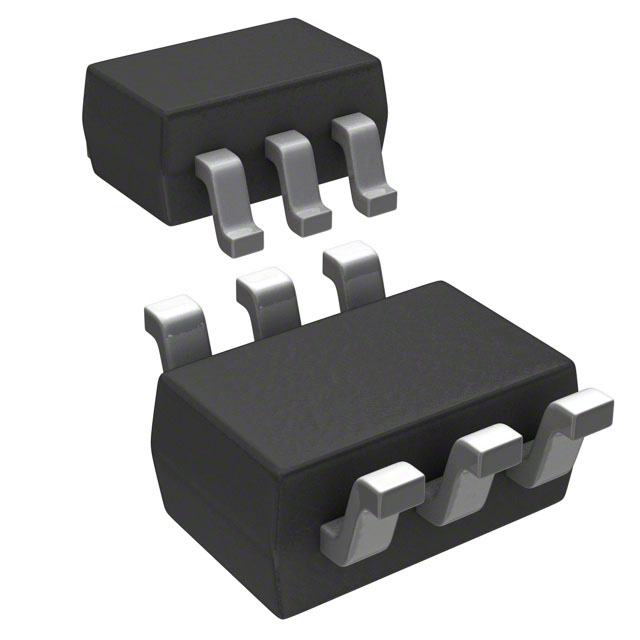

- Small SC70-6 lead Package
- Lead Free (Pb-free) Package
Description
AI
MCP47A1 is a volatile, 6-bit Digital-to-Analog converter (DAC) for general purpose applications. Settings are controlled through an I2C™Compatible serial interface. The I2C™Compatible slave addresses of "010 1110" and "011 1110" are supported.
