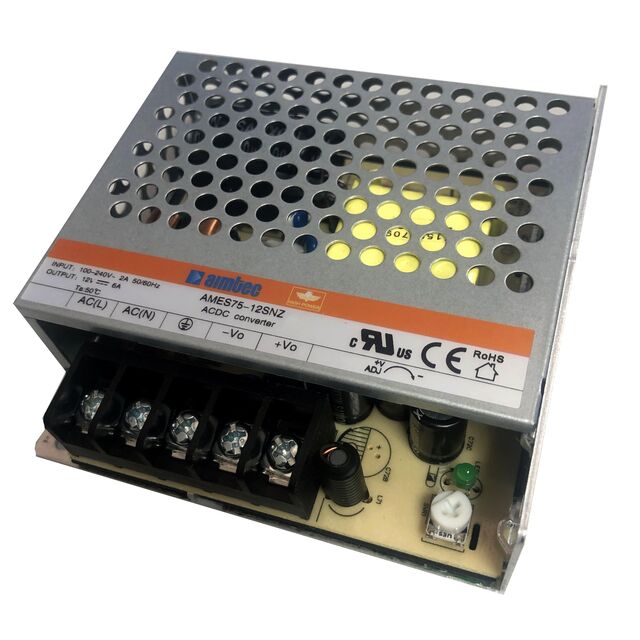

AMES75 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 5V 24V 12V 73W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Voltage - Output 1	Power (Watts)	Voltage - Isolation	Voltage - Output 3	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Voltage - Output 2	Efficiency	Standard Number	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current - Output 2	Type	Current - Output 1 [custom]	Voltage - Output 1 [custom]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
aimtec AMES75-052412TNZ	90 VAC 120 VDC 127 VDC	264 VAC 370 VDC 373 VDC	Household Appliances ITE (Commercial)	5 V	73 W	4000 V	12 V	3	Chassis Mount	1.18 in	129 mm	30 mm	3.82 in	5.07 "	97 mm	5 A	24 V	84 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output	1.5 A	Enclosed
aimtec AMES75-5SNZ	85 VAC 120 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	5 V	70 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm			86 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Enclosed	14 A
aimtec AMES75-12SNZ-Q	85 VAC 90 VAC 120 VDC 127 VDC	264 VAC 370 VDC 373 VDC	Household Appliances ITE (Commercial)	12 V	72 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm	6 A		88 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Conformal Coated Enclosed
aimtec AMES75-36SNZ-P	85 VAC 90 VAC 120 VDC 127 VDC	264 VAC 370 VDC 373 VDC	Household Appliances ITE (Commercial)		75.6 W 77 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm	2.1 A 3.2 A		89 % 90 %	60335-1 62368-1	CB CE cURus EN IEC UL	-30 °C	70 °C	Adjustable Output DC Input Capable Universal Input		Enclosed		36 V	39.6 V	32.4 V
aimtec AMES75-15S277NZ-Q	85 VAC 120 VDC	305 VAC 430 VDC	Household Appliances ITE (Commercial)	15 V	75 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm	5 A		87 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Conformal Coated Enclosed
aimtec AMES75-24SNZ	85 VAC 120 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	24 V	77 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm	3.2 A		90 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Enclosed
aimtec AMES75-5S277NZ	85 VAC 120 VDC	305 VAC 430 VDC	Household Appliances ITE (Commercial)	5 V	70 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm			85 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Enclosed	14 A
aimtec AMES75-36S277NZ	85 VAC 120 VDC	305 VAC 430 VDC	Household Appliances ITE (Commercial)		76 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm	2.1 A		89 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Enclosed		36 V

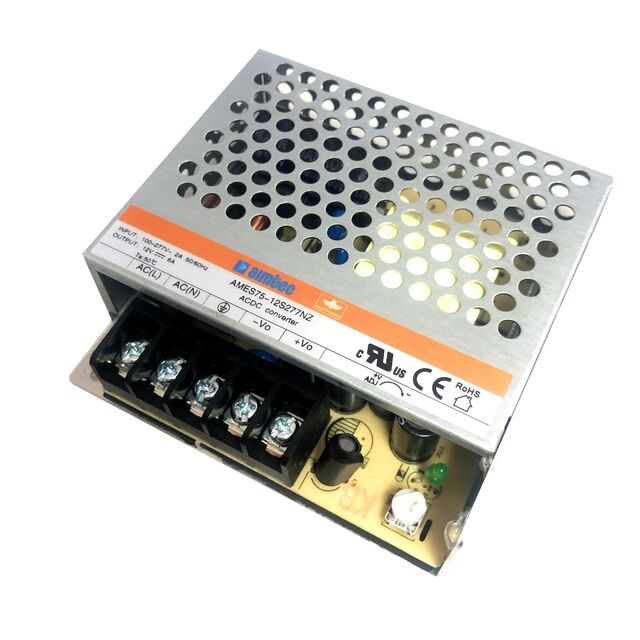

aimtec AMES75-24S277NZ-P	85 VAC 120 VDC	305 VAC 430 VDC	Household Appliances ITE (Commercial)	24 V	77 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm	3.2 A		89 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Enclosed
aimtec AMES75-12S277NZ-Q	85 VAC 120 VDC	305 VAC 430 VDC	Household Appliances ITE (Commercial)	12 V	72 W	4000 V		1	Chassis Mount	1.18 in	99 mm	30 mm	3.82 in	3.9 "	97 mm	6 A		87 %	60335-1 62368-1	CB CE EN IEC UL	-30 °C	70 °C	Adjustable Output		Conformal Coated Enclosed
