E2244S Series

Catalog

CABLE 4COND 16AWG NATURAL

Part	Cable Type	Jacket Color	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Shield Type	Voltage	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Insulation	Operating Temperature [Max]	Wire Gauge	Conductor Material	Conductor Strand [custom]	Conductor Strand [diameter]	Shield Material	Length	Length	Number of Conductors	Usage	Length [x]	Length [x]
Prysmian Group E2244S.30.86	Multi-Conductor	Natural	0.381 mm	0.015 in	Foil	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Drain Wire	0.209 in	5.31 mm	100 %	Poly-Vinyl Chloride (PVC)	75 ░C	16 AWG	Copper Bare	19	0.0117 in	Flexfoil®	304.8 m	1000 ft	4
Prysmian Group E2244S.30.86	Multi-Conductor	Natural	0.381 mm	0.015 in	Foil	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Drain Wire	0.209 in	5.31 mm		Poly-Vinyl Chloride (PVC)	75 ░C	16 AWG	Copper Bare	19	0.0117 in		304.8 m	1000 ft	4

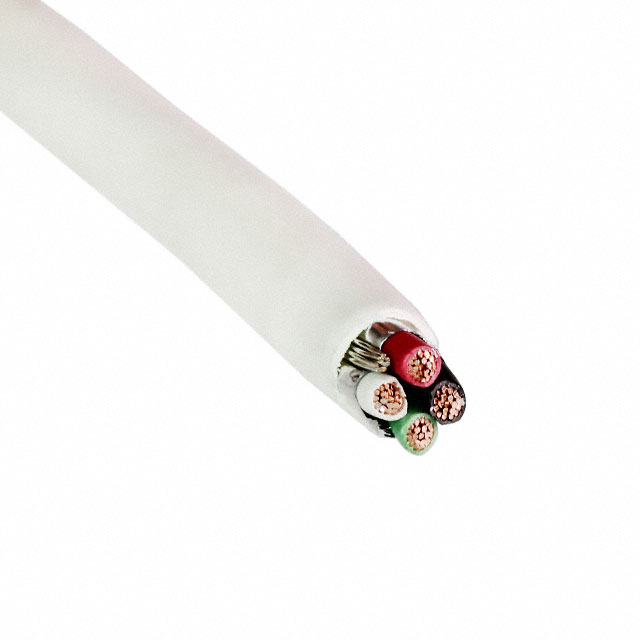

Prysmian Group E2244S.41.86	Multi-Conductor	Natural	0.381 mm	0.015 in	Foil	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Drain Wire	0.209 in	5.31 mm		Poly-Vinyl Chloride (PVC)	75 ░C	16 AWG	Copper Bare	19	0.0117 in		15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	4	Alarm Security Sound	100 ft	30.5 m
Prysmian Group E2244S.41.02	Multi-Conductor	White	0.381 mm	0.015 in	Foil	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Drain Wire	0.209 in	5.31 mm		Poly-Vinyl Chloride (PVC)	75 ░C	16 AWG	Copper Bare	19	0.0117 in		304.8 m	1000 ft	4	Alarm Security Sound
Prysmian Group E2244S.41.86	Multi-Conductor	Natural	0.381 mm	0.015 in	Foil	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Drain Wire	0.209 in	5.31 mm	100 %	Poly-Vinyl Chloride (PVC)	75 ░C	16 AWG	Copper Bare	19	0.0117 in	Flexfoil®	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	4	Alarm Security Sound	100 ft	30.5 m
Prysmian Group E2244S.41.02	Multi-Conductor	White	0.381 mm	0.015 in	Foil	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Drain Wire	0.209 in	5.31 mm	100 %	Poly-Vinyl Chloride (PVC)	75 ░C	16 AWG	Copper Bare	19	0.0117 in	Flexfoil®	304.8 m	1000 ft	4	Alarm Security Sound
