TS4061 Series

Catalog

PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Current - Cathode	Voltage - Output (Min/Fixed)	Mounting Type	Noise - 10Hz to 10kHz	Current - Output	Reference Type	Tolerance	Noise - 0.1Hz to 10Hz	Package / Case	Supplier Device Package
STMicroelectronics TS4061AICT-1.25	85 C	-40 ¯C	35 ppm/°C	12 µA	1.25 V	Surface Mount	95 µVrms	15 mA	Shunt	0.1 %	10 µVp-p	SC-70 SOT-323	SOT-323
STMicroelectronics TS4061AICT-1.225	85 C	-40 ¯C	35 ppm/°C	12 µA	1.225 V	Surface Mount	95 µVrms	15 mA	Shunt	0.1 %	10 µVp-p	SC-70 SOT-323	SOT-323
STMicroelectronics TS4061BICT-1.225	85 C	-40 ¯C	35 ppm/°C	12 µA	1.225 V	Surface Mount	95 µVrms	15 mA	Shunt	0.2 %	10 µVp-p	SC-70 SOT-323	SOT-323

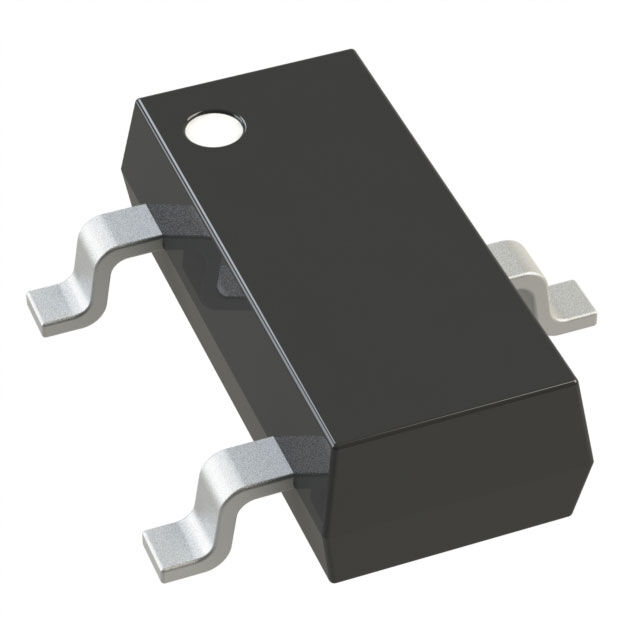

STMicroelectronics TS4061BILT-1.225	85 C	-40 ¯C	35 ppm/°C	12 µA	1.225 V	Surface Mount	95 µVrms	15 mA	Shunt	0.2 %	10 µVp-p	SC-59 SOT-23-3 TO-236-3	SOT-23-3
STMicroelectronics TS4061BICT-1.25	85 C	-40 ¯C	35 ppm/°C	12 µA	1.25 V	Surface Mount	95 µVrms	15 mA	Shunt	0.2 %	10 µVp-p	SC-70 SOT-323	SOT-323-3
STMicroelectronics TS4061BILT-1.25	85 C	-40 ¯C	35 ppm/°C	12 µA	1.25 V	Surface Mount	95 µVrms	15 mA	Shunt	0.2 %	10 µVp-p	SC-59 SOT-23-3 TO-236-3	SOT-23-3
STMicroelectronics TS4061AILT-1.225	85 C	-40 ¯C	35 ppm/°C	12 µA	1.225 V	Surface Mount	95 µVrms	15 mA	Shunt	0.1 %	10 µVp-p	SC-59 SOT-23-3 TO-236-3	SOT-23-3
