A3B-20PA Series

Catalog

CONN HEADER

Part	Contact Material	Contact Finish - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Type	Style	Material Flammability Rating	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Positions	Voltage Rating	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Connector Type	Insulation Color	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights [z]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Mating

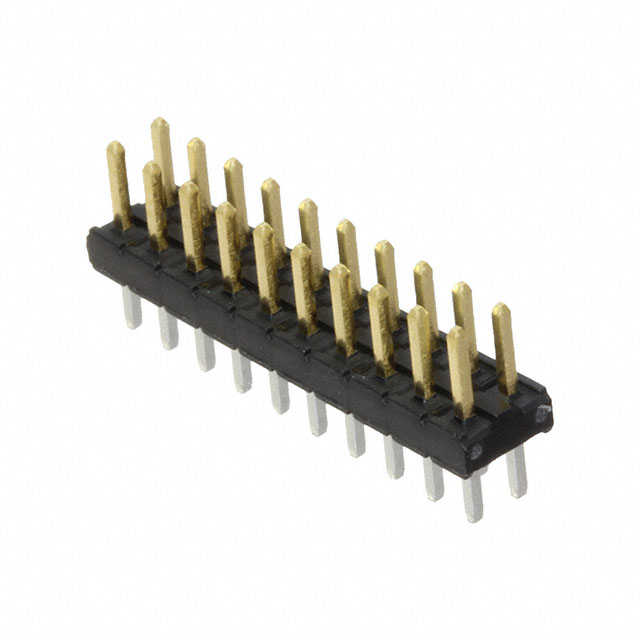

Hirose Electric Co Ltd A3B-20PA-2DSA(51)	Brass	Gold	Nylon Polyamide (PA)	0.079 "	2 mm	1.8 mm	0.071 in	Male Pin	Board to Board Cable	UL94 V-0	Square	7.9 mm	0.311 in	2	All	2.6 mm	0.102 in	Through Hole	20	200 VAC	Unshrouded	Solder	-55 C	85 °C	3.5 mm	0.138 in	2 mm	0.079 in	Push-Pull	Header	Black
Hirose Electric Co Ltd A3B-20PA-2DS(51)	Brass	Gold	Nylon Polyamide (PA)	0.079 "	2 mm			Male Pin	Board to Board Cable	UL94 V-0	Square			2	All	2.6 mm	0.102 in	Right Angle Through Hole	20	200 VAC	Unshrouded	Kinked Pin Solder	-55 C	85 °C	3.5 mm	0.138 in	2 mm	0.079 in	Push-Pull	Header	Black	4 mm	0.157 in
Hirose Electric Co Ltd A3B-20PA-2DSA(74)	Brass	Gold	Nylon Polyamide (PA)	0.079 "	2 mm	1.8 mm	0.071 in	Male Pin	Board to Board Cable	UL94 V-0	Square	7.9 mm	0.311 in	2	All	2.6 mm	0.102 in	Through Hole	20	200 VAC	Unshrouded	Solder	-55 C	85 °C	3.5 mm	0.138 in	2 mm	0.079 in	Push-Pull	Header	Black			6 mm 8.8 mm	78.7 µin	2 µm	0.5 µm	19.7 µin	Tin
Hirose Electric Co Ltd A3B-20PA-2DS(82)	Brass	Gold	Nylon Polyamide (PA)	0.079 "	2 mm			Male Pin	Board to Board Cable	UL94 V-0	Square			2	All	2.6 mm	0.102 in	Right Angle Through Hole	20	200 VAC	Unshrouded	Kinked Pin Solder	-55 C	85 °C	3.5 mm	0.138 in	2 mm	0.079 in	Push-Pull	Header	Black	4 mm	0.157 in				0.051 µm	2 µin	Tin
Hirose Electric Co Ltd A3B-20PA-2DS(71)	Brass	Gold	Nylon Polyamide (PA)	0.079 "	2 mm			Male Pin	Board to Board Cable	UL94 V-0	Square			2	All	2.6 mm	0.102 in	Right Angle Through Hole	20	200 VAC	Unshrouded	Kinked Pin Solder	-55 C	85 °C	3.5 mm	0.138 in	2 mm	0.079 in	Push-Pull	Header	Black	4 mm	0.157 in						Tin	Flash
