DF17B(4.0) Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

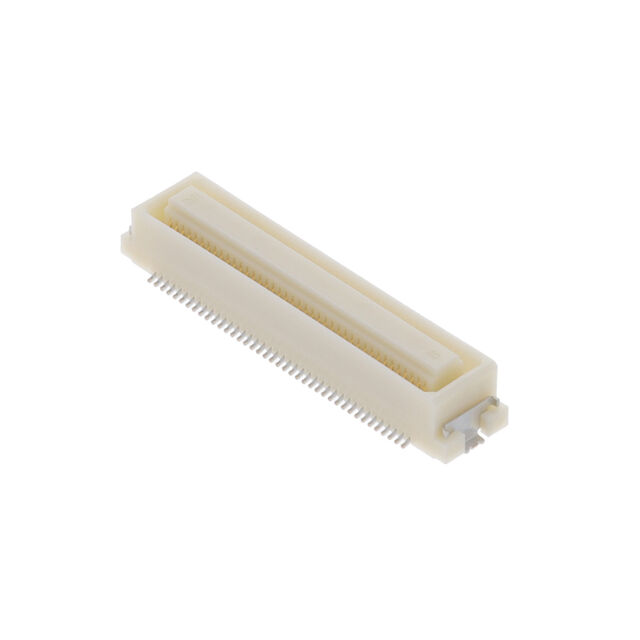

CONN HDR 80POS SMD GOLD
| Part | Mounting Type | Pitch | Pitch | Contact Finish | Features | Number of Rows [custom] | Connector Type | Number of Positions | Height Above Board [z] | Height Above Board [z] | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Surface Mount | 0.02 " | 0.5 mm | Gold | Solder Retention | 2 | Header Outer Shroud Contacts | 80 | 0.248 in | 6.3 mm | 7 mm 8 mm |
 Hirose Electric Co Ltd | Surface Mount | 0.02 " | 0.5 mm | Gold | Solder Retention | 2 | Receptacle Center Strip Contacts | 80 | 0.177 in | 4.5 mm | 6 mm 6.5 mm 8 mm |
 Hirose Electric Co Ltd | Surface Mount | 0.02 " | 0.5 mm | Gold | Solder Retention | 2 | Header Outer Shroud Contacts | 50 | 0.248 in | 6.3 mm | 7 mm 8 mm |
Hirose Electric Co Ltd | Surface Mount | 0.02 " | 0.5 mm | Gold | Solder Retention | 2 | Receptacle Center Strip Contacts | 40 | 0.177 in | 4.5 mm | 6 mm 6.5 mm 8 mm |
Hirose Electric Co Ltd | Surface Mount | 0.02 " | 0.5 mm | Gold | Solder Retention | 2 | Header Outer Shroud Contacts | 20 | 0.248 in | 6.3 mm | 7 mm 8 mm |
