CPC3981 Series

N-CH DEP MOSFET 800V 45 Oh SOT-223-2L TR

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

N-CH DEP MOSFET 800V 45 Oh SOT-223-2L TR

Part	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Power Dissipation (Max)	Technology	Vgs(th) (Max) @ Id	Vgs (Max)	FET Feature	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Operating Temperature

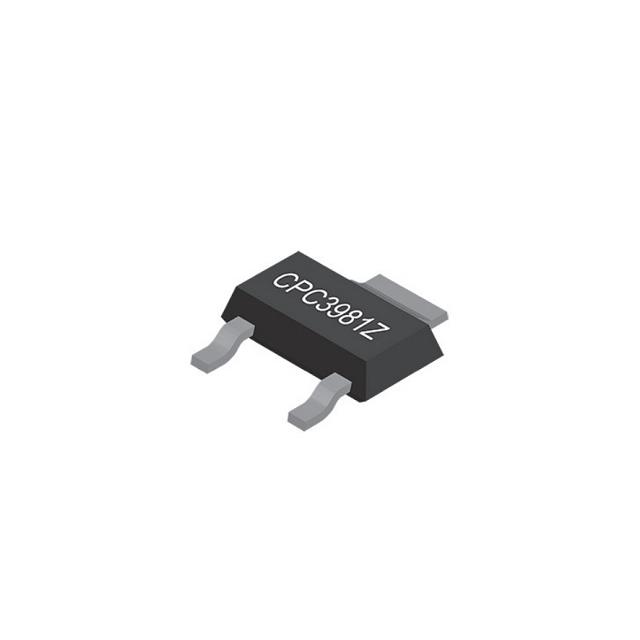

Littelfuse/Commercial Vehicle Products CPC3981ZTR	800 V	100 mA	45 Ohm	N-Channel	0 V	SOT-223-2L	2.25 W	MOSFET (Metal Oxide)	3.1 V	15 V	Depletion Mode	TO-261-3	105 pF	Surface Mount	150 °C

Catalog

N-CH DEP MOSFET 800V 45 Oh SOT-223-2L TR

Key Features

• Normally closed with no power applied

• Low VGS(off) voltage

• High input impedance

Description

Depletion Mode MOSFET DevicesOur N-channel depletion mode field effect transistors (FET) utilize a proprietary third generation vertical DMOS process which realizes world-class, high voltage MOSFET performance in an economical silicon gate process. The vertical DMOS process yields a robust device for high power applications with high input impedance. These highly reliable FET devices have been used extensively in our solid-state relays for industrial and telecommunications applications.
