C5785 Series
Manufacturer: Prysmian Group
Beta
⌘K

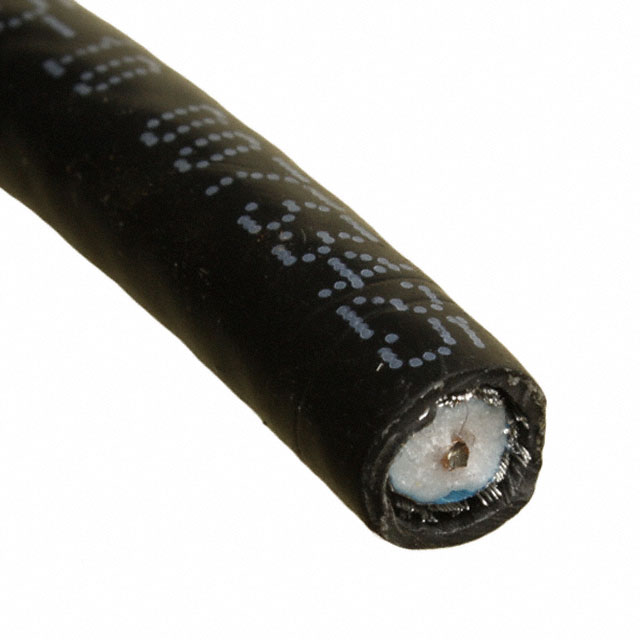

CABLE COAXIAL RG-6 18AWG 500'
| Part | Cable Group | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Jacket (Insulation) Material | Length [x] | Length [x] | Shield Type | Cable Type | Jacket Color | Wire Gauge | Impedance | Features | Dielectric Material | Shield Material | Conductor Material | Shield Coverage | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Braid Foil | Coaxial | Black | 18 AWG | 75 Ohms | Quad Shield | ||||||||
 Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Braid Foil | Coaxial | White | 18 AWG | 75 Ohms | Quad Shield | ||||||||
 Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Braid Foil | Coaxial | Black | 18 AWG | 75 Ohms | Quad Shield | ||||||||
Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Braid Foil | Coaxial | Black | 18 AWG | 75 Ohms | Quad Shield | ||||||||
Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Braid Foil | Coaxial | Black | 18 AWG | 75 Ohms | Quad Shield | Solid Polyethylene (PE) | Aluminum Flexfoil® | Copper Coated Steel | 40 % 60 % 100 % | 85 | 0.177 in | 4.5 mm | |
Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Braid Foil | Coaxial | Black | 18 AWG | 75 Ohms | Quad Shield | Solid Polyethylene (PE) | Aluminum Flexfoil® | Copper Coated Steel | 40 % 60 % 100 % | 85 | 0.177 in | 4.5 mm | |
Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | Braid Foil | Coaxial | Black | 0.82 mm² | 75 Ohms | Quad Shield | Solid Polyethylene (PE) | Aluminum Flexfoil® | Copper Coated Steel | 40 % 60 % 100 % | 85 | 0.177 in | 4.5 mm | 18 AWG | ||
Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Braid Foil | Coaxial | Black | 18 AWG | 75 Ohms | Quad Shield | Solid Polyethylene (PE) | Aluminum Flexfoil® | Copper Coated Steel | 40 % 60 % 100 % | 85 | 0.177 in | 4.5 mm | |
Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | Braid Foil | Coaxial | Black | 18 AWG | 75 Ohms | Quad Shield | ||||||||||
Prysmian Group | RG-6 | CATV | 7.42 mm | 0.292 in | Solid | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Braid Foil | Coaxial | White | 18 AWG | 75 Ohms | Quad Shield | Solid Polyethylene (PE) | Aluminum Flexfoil® | Copper Coated Steel | 40 % 60 % 100 % | 85 | 0.177 in | 4.5 mm |
