C8001 Series
Manufacturer: Prysmian Group
Beta
⌘K

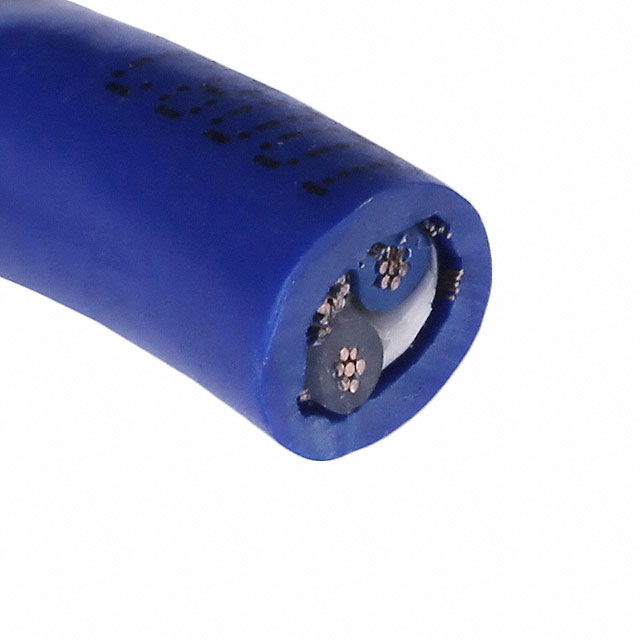

CABLE TWINAXIAL 20AWG 1000'
| Part | Dielectric Material | Usage | Shield Type | Cable Type | VoP, Velocity of Propagation | Shield Coverage | Shield Material | Jacket (Insulation) Material | Conductor Material | Conductor Strand | Jacket Color | Length [x] | Length [x] | Length | Length | Impedance | Wire Gauge | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Solid Polyethylene (PE) | Data Transmission PLC | Braid Foil | Twinaxial | 66 | 57 % 100 % | Copper Flexfoil® Tinned | Poly-Vinyl Chloride (PVC) | Copper Tinned | 7 Strands 28 AWG | Blue | 50 ft 1000 ft | 15.24 m 304.8 m | 100 ' | 30.48 m | 78 Ohms | 20 AWG | 0.51 mm | 0.02 in |
Prysmian Group | Solid Polyethylene (PE) | Data Transmission PLC | Braid Foil | Twinaxial | 66 | 57 % 100 % | Copper Flexfoil® Tinned | Poly-Vinyl Chloride (PVC) | Copper Tinned | 7 Strands 28 AWG | Blue | 500 ft | 152.4 m | 78 Ohms | 20 AWG | 0.51 mm | 0.02 in | ||
Prysmian Group | Solid Polyethylene (PE) | Data Transmission PLC | Braid Foil | Twinaxial | 66 | 57 % 100 % | Copper Flexfoil® Tinned | Poly-Vinyl Chloride (PVC) | Copper Tinned | 7 Strands 28 AWG | Blue | 1000 ft | 304.8 m | 78 Ohms | 20 AWG | 0.51 mm | 0.02 in | ||
Prysmian Group | Data Transmission PLC | Braid Foil | Twinaxial | Poly-Vinyl Chloride (PVC) | 7 Strands 28 AWG | Blue | 50 ft 1000 ft | 15.24 m 304.8 m | 100 ' | 30.48 m | 78 Ohms | 20 AWG |
