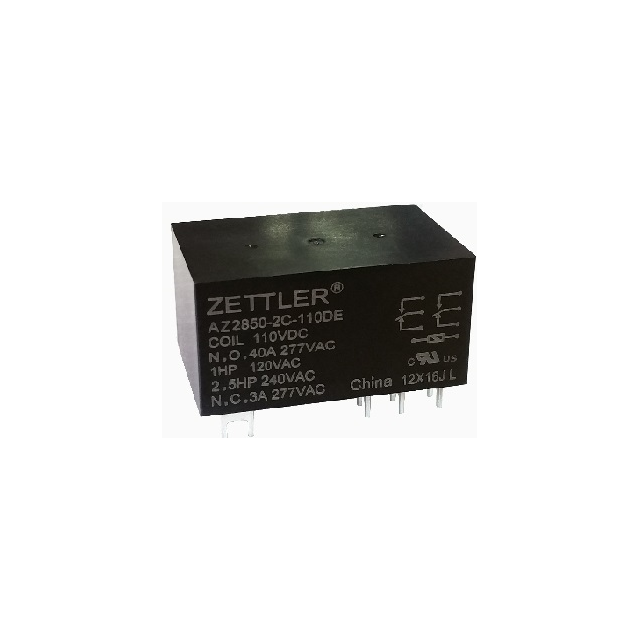

AZ2850-2C Series

Catalog

RELAY EV CHG SOLAR DPDT 3A 24V

Part	Coil Resistance	Approval Agency	Release Time	Coil Voltage	Mounting Type	Contact Rating (Current)	Contact Material	Must Release Voltage	Coil Type	Termination Style	Switching Voltage [Max]	Must Operate Voltage	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Insulation	Load - Max Switching	Contact Form	Seal Rating	Coil Current
American Zettler AZ2850-2C-24DE	350 Ohms	cUR UL VDE	25 ms	24 VDC	Through Hole	3 A	Silver Cadmium Oxide (AgCdO)	2.4 VDC	Non Latching	PC Pin	30 VDC 600 VAC	18 VDC	General Purpose	85 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)	Sealed - Fully	68.5 mA
American Zettler AZ2850-2C-120A6	830 Ohms	cUR UL VDE	25 ms	120 VAC	Through Hole	40 A	Silver Cadmium Oxide (AgCdO)	24 VAC	Non Latching	PC Pin	30 VDC 600 VAC	96 VAC	General Purpose	65 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)		33.3 mA
American Zettler AZ2850-2CE-24A	35.7 Ohms	cUR UL VDE	25 ms	24 VAC	Through Hole	40 A	Silver Tin Oxide (AgSnO)	4.8 VAC	Non Latching	PC Pin	30 VDC 600 VAC	19.2 VAC	General Purpose	65 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)		166 mA
American Zettler AZ2850-2C-24A	35.7 Ohms	cUR UL VDE	25 ms	24 VAC	Through Hole	40 A	Silver Cadmium Oxide (AgCdO)	4.8 VAC	Non Latching	PC Pin	30 VDC 600 VAC	19.2 VAC	General Purpose	65 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)		166 mA
American Zettler AZ2850-2C-48DEF	1.39 kOhms	cUR UL VDE	25 ms	48 VDC	Through Hole	40 A	Silver Cadmium Oxide (AgCdO)	4.8 VDC	Non Latching	PC Pin	30 VDC 600 VAC	36 VDC	General Purpose	85 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)	Sealed - Fully	34.5 mA
American Zettler AZ2850-2C-240A5	4.5 kOhms	cUR UL VDE	25 ms	240 VAC/DC	Through Hole	40 A	Silver Cadmium Oxide (AgCdO)	48 VAC	Non Latching	PC Pin	30 VDC 600 VAC	192 VAC	General Purpose	65 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)		16.7 mA
American Zettler AZ2850-2C-12DE	86 Ohms	cUR UL VDE	25 ms	12 VDC	Through Hole	3 A	Silver Cadmium Oxide (AgCdO)	1.2 VDC	Non Latching	PC Pin	30 VDC 600 VAC	9 VDC	General Purpose	85 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)	Sealed - Fully	140 mA
American Zettler AZ2850-2C-120A5E	1.125 kOhms	cUR UL VDE	25 ms	120 VAC	Through Hole	40 A	Silver Cadmium Oxide (AgCdO)	24 VAC	Non Latching	PC Pin	30 VDC 600 VAC	96 VAC	General Purpose	65 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)	Sealed - Fully	33.3 mA
American Zettler AZ2850-2C-220A5	3.8 kOhms	cUR UL VDE	25 ms	220 VAC/DC	Through Hole	40 A	Silver Cadmium Oxide (AgCdO)	44 VAC	Non Latching	PC Pin	30 VDC 600 VAC	176 VAC	General Purpose	65 °C	-40 C	25 ms	Class F	1200 W 11080 VA	DPDT (2 Form C)		18.2 mA
