C4073 Series
Manufacturer: Prysmian Group
Beta
⌘K

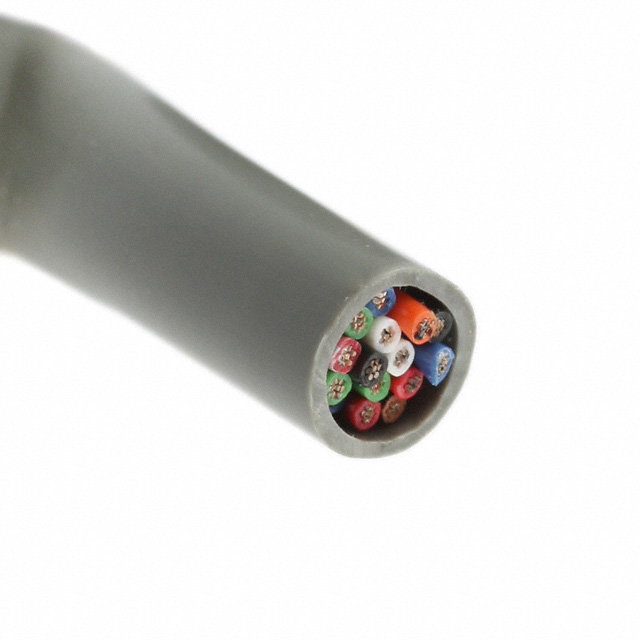

CABLE 15COND 22AWG GRAY
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Jacket Color | Wire Gauge | Length | Length | Usage | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 30 AWG | 7 | 15 | 80 °C | -20 ░C | 7.7 mm | 0.303 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | Gray | 22 AWG | 15.24 m 304.8 m | 50 ft 1000 ft | Communication Control | 300 VDC | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor |
Prysmian Group | 30 AWG | 7 | 15 | 80 °C | -20 ░C | 7.7 mm | 0.303 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | Gray | 22 AWG | 152.4 m | 500 ft | Communication Control | 300 VDC | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor |
Prysmian Group | 30 AWG | 7 | 15 | 80 °C | -20 ░C | 7.7 mm | 0.303 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | Gray | 22 AWG | 15.24 m 304.8 m | 50 ft 1000 ft | Communication Control | 300 VDC | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor |
Prysmian Group | 30 AWG | 7 | 15 | 80 °C | -20 ░C | 7.7 mm | 0.303 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | Gray | 22 AWG | 152.4 m | 500 ft | Communication Control | 300 VDC | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor |
