MCP1640 Series

500kHz 800mA Isw Synchronous PFM/PWM Boost Regulator

Catalog

500kHz 800mA Isw Synchronous PFM/PWM Boost Regulator

Part	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Max) [Max]	Topology	Number of Outputs	Supplier Device Package	Current - Output	Output Type	Voltage - Input (Min) [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Function	Mounting Type	Output Configuration	Frequency - Switching	Voltage - Input (Max) [Max]	Main Purpose	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Utilized IC / Part	Voltage - Output	Outputs and Type	Outputs and Type	Supplied Contents
Microchip Technology MCP1640T-I/MC	2 V	5.5 V	Boost	1	8-DFN (2x3)	350 mA	Adjustable	0.8 V	8-VFDFN Exposed Pad	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V

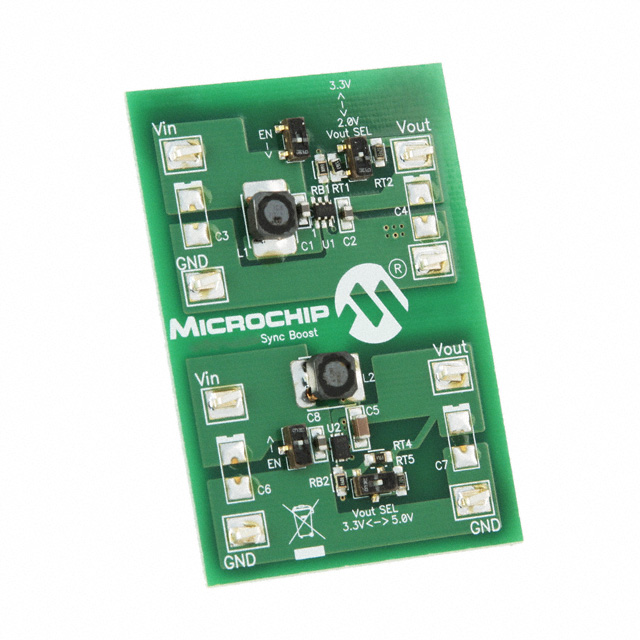

Microchip Technology MCP1640EV-SBC						100 mA 350 mA									500 kHz		DC/DC Step Up	Fully Populated	5.5 V	0.35 V	Boost	MCP1640	2 V 3.3 V 5 V	Non-Isolated	1	Board(s)
Microchip Technology MCP1640DT-I/MC	2 V	5.5 V	Boost	1	8-DFN (2x3)	350 mA	Adjustable	0.8 V	8-VFDFN Exposed Pad	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V
Microchip Technology MCP1640D-I/MC	2 V	5.5 V	Boost	1	8-DFN (2x3)	350 mA	Adjustable	0.8 V	8-VFDFN Exposed Pad	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V
Microchip Technology MCP1640DT-I/CHY	2 V	5.5 V	Boost	1	SOT-23-6	350 mA	Adjustable	0.8 V	SOT-23-6	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V
Microchip Technology MCP1640CT-I/MC	2 V	5.5 V	Boost	1	8-DFN (2x3)	350 mA	Adjustable	0.8 V	8-VFDFN Exposed Pad	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V
Microchip Technology MCP1640BT-I/MC	2 V	5.5 V	Boost	1	8-DFN (2x3)	350 mA	Adjustable	0.8 V	8-VFDFN Exposed Pad	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V
Microchip Technology MCP1640CT-I/CHY	2 V	5.5 V	Boost	1	SOT-23-6	350 mA	Adjustable	0.8 V	SOT-23-6	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V
Microchip Technology MCP1640BT-I/CHY	2 V	5.5 V	Boost	1	SOT-23-6	350 mA	Adjustable	0.8 V	SOT-23-6	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V
Microchip Technology MCP1640-I/MC	2 V	5.5 V	Boost	1	8-DFN (2x3)	350 mA	Adjustable	0.8 V	8-VFDFN Exposed Pad	-40 °C	125 ¯C	Step-Up	Surface Mount	Positive	500 kHz	5.5 V

Catalog

500kHz 800mA Isw Synchronous PFM/PWM Boost Regulator

Key Features

• * Up to 96% Typical Efficiency

• * IOUT > 100 mA @ 1.2V VIN, 3.3V VOUT

• * IOUT > 350 mA @ 2.4V VIN, 3.3V VOUT

• * IOUT > 350 mA @ 3.3V VIN, 5.0V VOUT

• * Low Start-up Voltage: 0.65V

• * Operating Input Voltage: 0.35V

• * Adjustable Output Voltage Range: 2.0V to 5.5V

• * Maximum Input Voltage < VOUT < 5.5V

• * Automatic PFM/PWM Operation

• * PWM Operation at 500 kHz

• * Low Device Quiescent Current: 19 µA – typical PFM Mode

• * Shutdown Current (All States): < 1 µA

• * Internal Synchronous Rectifier

• * Internal Compensation

• * Inrush Current Limiting and Internal Soft-Start

• * True Load Disconnect Shutdown

• * Low Noise, Anti-Ringing Control

• * Over-temperature Protection

• * SOT23-6 or 2x3 8-Lead DFN packages

Description

The MCP1640/40B/40C/40D is a compact, high-efficiency, fixed frequency, synchronous step-up DC-DC converter. It provides an easy-to-use power supply solution for applications powered by either one-cell, two-cell, or three-cell alkaline, NiCd, NiMH, one-cell Li-Ion or Li-Polymer batteries. The MCP1640/40B/40C/40D provides very high efficiency through integration of the low resistance N-Channel Boost switch and synchronous P-Channel switch.
