TPP 450 Series

Modular Power Supplies cable for aux output 2x4 pin for TPP450

Manufacturer: Traco Power

Catalog

Modular Power Supplies cable for aux output 2x4 pin for TPP450

Catalog

Modular Power Supplies cable for aux output 2x4 pin for TPP450

Part	Minimum Load Required	Power (Watts)	Current - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Approval Agency	Number of Outputs	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Voltage - Output 1 [custom]	Voltage - Isolation	Standard Number	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
Traco Power TPP 450-136A-M		319 W 450 W	8.86 A	76.2 mm	3 "	127 mm	127 mm	40.1 mm	1.58 in	Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output DC Input Capable PFC Remote On/Off Standby Output Universal Input	-40 °C	85 °C	93 %	Open Frame	36 V	4000 V	60601-1; 62368-1
Traco Power TPP 450-112B-M		450 W	37.5 A	80 mm		148.1 mm				Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output PFC Remote On/Off Standby Output Universal Input	-40 °C	80 ¯C	91 %	Enclosed		4000 V	60601-1; 62368-1	12 V	5.83 "	40.6 mm	1.6 "	3.15 in

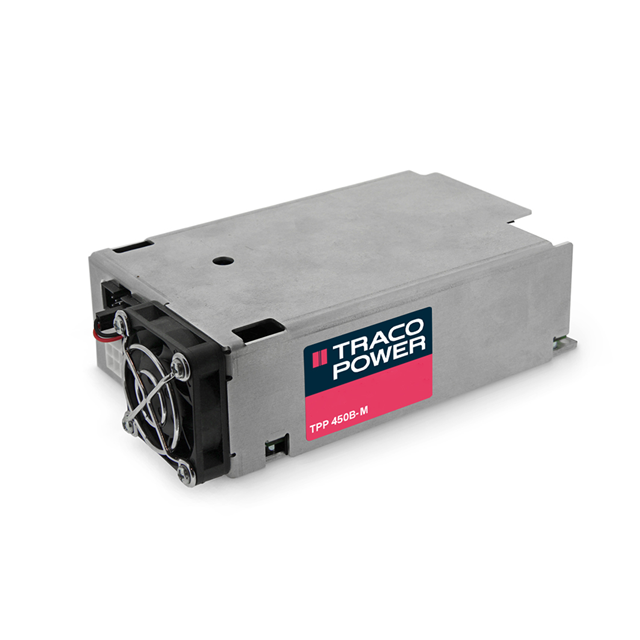

Traco Power TPP 450-115B-M		450 W	30 A	80 mm		148.1 mm				Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output PFC Remote On/Off Standby Output Universal Input	-40 °C	80 ¯C	92 %	Enclosed		4000 V	60601-1; 62368-1	15 V	5.83 "	40.6 mm	1.6 "	3.15 in

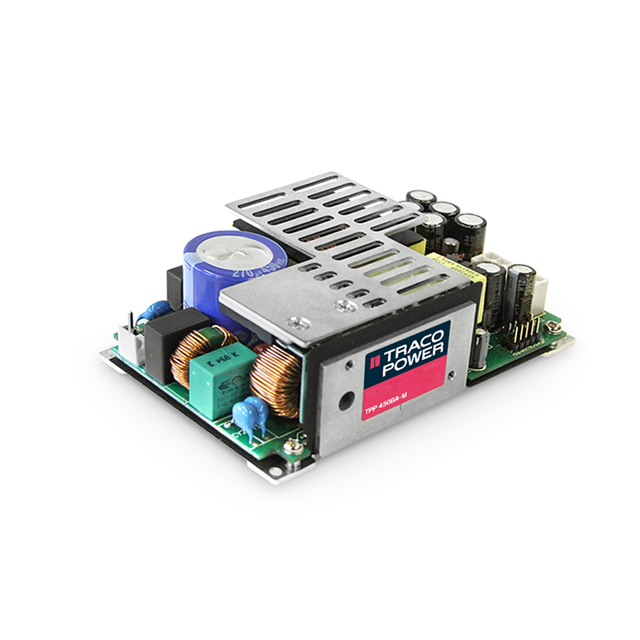

Traco Power TPP 450-112BA-M		250 W 450 W	20.8 A	76.2 mm	3 "	127 mm	127 mm	40.1 mm	1.58 in	Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output PFC Remote On/Off Standby Output Universal Input	-40 °C	85 °C	91 %	Open Frame		4000 V	60601-1; 62368-1	12 V

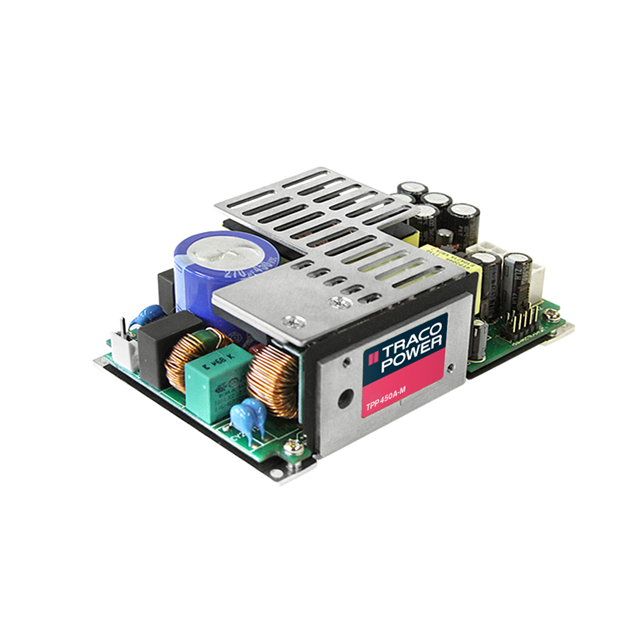

Traco Power TPP 450-148A-M		319 W 450 W	6.65 A	76.2 mm	3 "	127 mm	127 mm	40.1 mm	1.58 in	Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output DC Input Capable PFC Remote On/Off Standby Output Universal Input	-40 °C	85 °C	94 %	Open Frame		4000 V	60601-1; 62368-1	48 V
Traco Power TPP 450-148-M		451 W	9.4 A	80 mm		148.1 mm				Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output DC Input Capable PFC Remote On/Off Standby Output Universal Input	-40 °C	80 ¯C	94 %	Enclosed		4000 V	60601-1; 62368-1	48 V	5.83 "	40.6 mm	1.6 "	3.15 in
Traco Power TPP 450-148BA-M		319 W 451 W	6.65 A	76.2 mm	3 "	127 mm	127 mm	40.1 mm	1.58 in	Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output PFC Remote On/Off Standby Output Universal Input	-40 °C	85 °C	94 %	Open Frame		4000 V	60601-1; 62368-1	48 V
Traco Power TPP 450-115BA-M		249 W 450 W	16.6 A	76.2 mm	3 "	127 mm	127 mm	40.1 mm	1.58 in	Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output PFC Remote On/Off Standby Output Universal Input	-40 °C	85 °C	92 %	Open Frame		4000 V	60601-1; 62368-1	15 V
Traco Power TPP 450-124B-M		450 W	18.75 A	80 mm		148.1 mm				Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output PFC Remote On/Off Standby Output Universal Input	-40 °C	80 ¯C	93 %	Enclosed		4000 V	60601-1; 62368-1	24 V	5.83 "	40.6 mm	1.6 "	3.15 in
Traco Power TPP 450-124BA-M		319 W 450 W	13.3 A	76.2 mm	3 "	127 mm	127 mm	40.1 mm	1.58 in	Chassis Mount	CB CE cURus	1	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	Adjustable Output PFC Remote On/Off Standby Output Universal Input	-40 °C	85 °C	93 %	Open Frame		4000 V	60601-1; 62368-1	24 V
