VN820 Series
Manufacturer: STMicroelectronics
Beta
⌘K
POWER LOAD SW, HIGH SIDE, -40 TO 150DEGC ROHS COMPLIANT: YES
| Part | Package / Case | Interface | Supplier Device Package | Current - Output (Max) [Max] | Features | Voltage - Supply (Vcc/Vdd) | Voltage - Load [Max] | Voltage - Load [Min] | Output Type | Input Type | Switch Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Number of Outputs | Fault Protection | Ratio - Input:Output | Rds On (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD | On/Off | PPAK | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Surface Mount | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |
 STMicroelectronics | PowerSO-10 Exposed Bottom Pad | On/Off | 10-PowerSO | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Surface Mount | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |

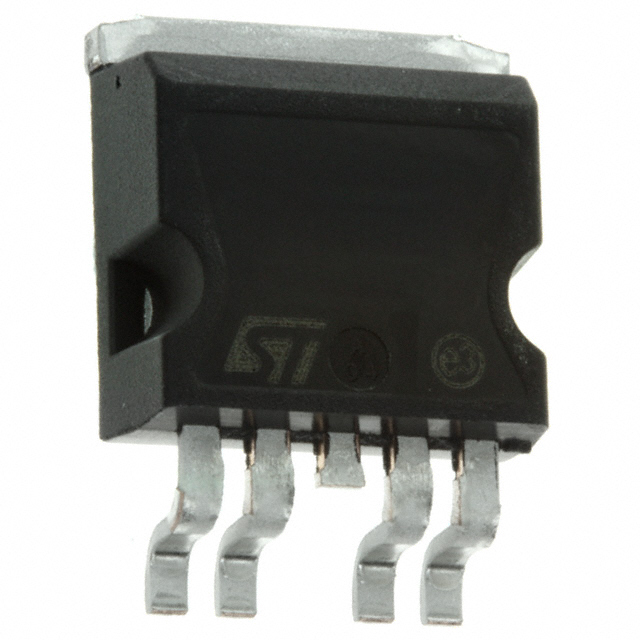

 STMicroelectronics | P2PAK (4 Leads + Tab) | On/Off | P2PAK | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Surface Mount | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |
 STMicroelectronics | Pentawatt-5 (Straight Leads Staggered Depth) | On/Off | 5-PENTAWATT | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Through Hole | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |

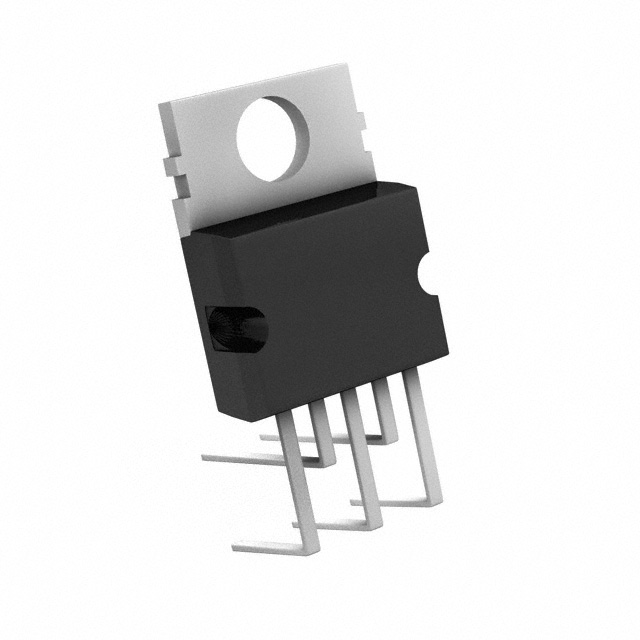

 STMicroelectronics | Pentawatt-5 (Horizontal Bent and Staggered Leads) | On/Off | 5-PENTAWATT | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Through Hole | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |

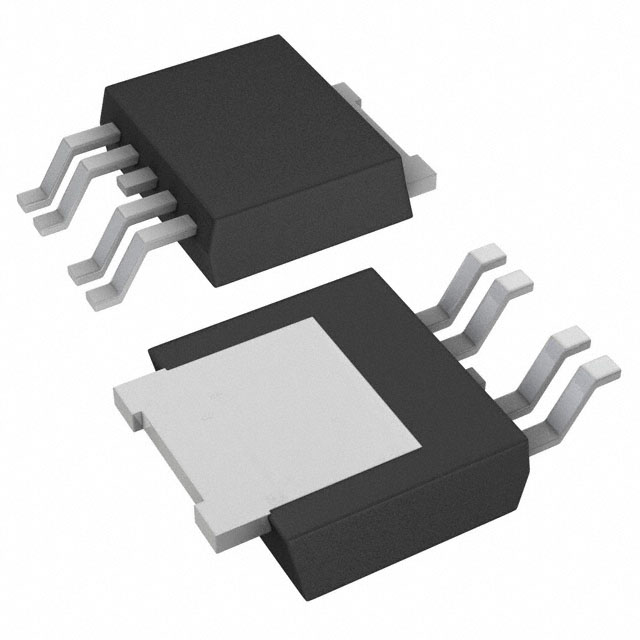

 STMicroelectronics | DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD | On/Off | PPAK | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Surface Mount | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |
STMicroelectronics | P2PAK (4 Leads + Tab) | On/Off | P2PAK | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Surface Mount | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |
 STMicroelectronics | Pentawatt-5 (Vertical Bent and Staggered Leads) | On/Off | 5-PENTAWATT | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Through Hole | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |
STMicroelectronics | P2PAK (4 Leads + Tab) | On/Off | P2PAK | 9 A | Auto Restart Status Flag | Not Required | 36 V | 5.5 V | N-Channel | Non-Inverting | General Purpose | Surface Mount | -40 °C | 150 °C | High Side | 1 | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | 1:1 | 40 mOhm |
