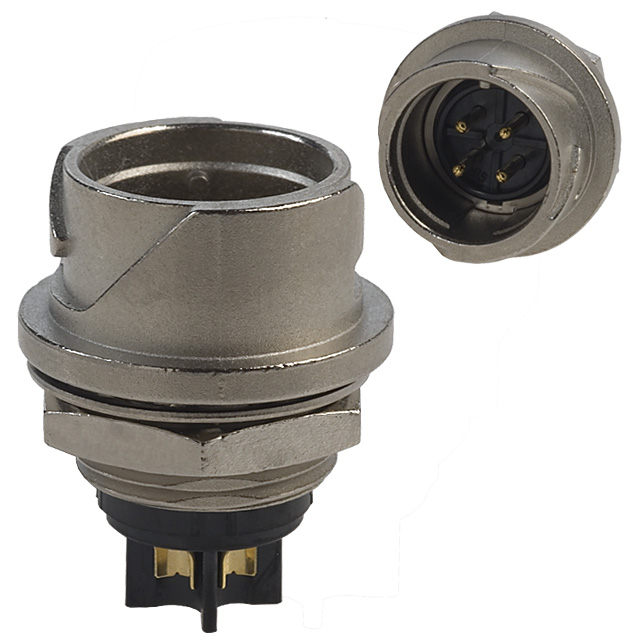

LF10WBR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT MALE 4P GOLD SLDR CUP
| Part | Applications | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Color | Ingress Protection | Connector Type | Shell Material | Mounting Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Primary Material | Shell Size - Insert [custom] | Voltage Rating | Number of Positions | Contact Finish - Mating | Mounting Feature | Orientation | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Industrial Telecommunications | Copper Alloy | Polyphenylene Sulfide (PPS) | 8 µin | 0.203 µm | Nickel | Silver | IP67/IP68 | Receptacle Male Pins | Zinc Alloy | Panel Mount | Bayonet Lock | 85 °C | -25 °C | UL94 V-0 | Metal | 10 | 125 VAC | 4 | Gold | Bulkhead - Rear Side Nut | Keyed | 10 A |
