GP3D015 Series
Manufacturer: SemiQ
Beta
⌘K

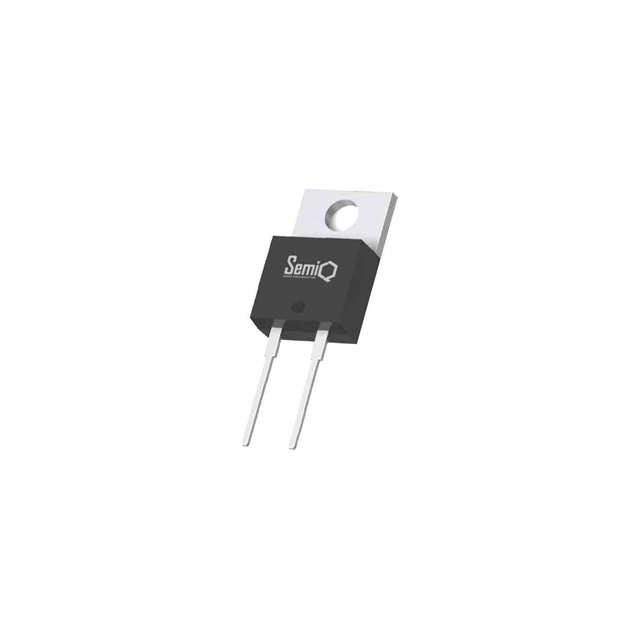

DIODE SIL CARB 1.2KV 15A TO220-2
| Part | Supplier Device Package | Package / Case | Technology | Reverse Recovery Time (trr) | Speed | Voltage - DC Reverse (Vr) (Max) [Max] | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - Forward (Vf) (Max) @ If [Max] | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Mounting Type | Current - Average Rectified (Io) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SemiQ | TO-220-2 | TO-220-2 | SiC (Silicon Carbide) Schottky | 0 ns | 500 mA | 1.2 kV | 175 ░C | -55 °C | 1.6 V | 30 µA | 962 pF | Through Hole | 15 A |
