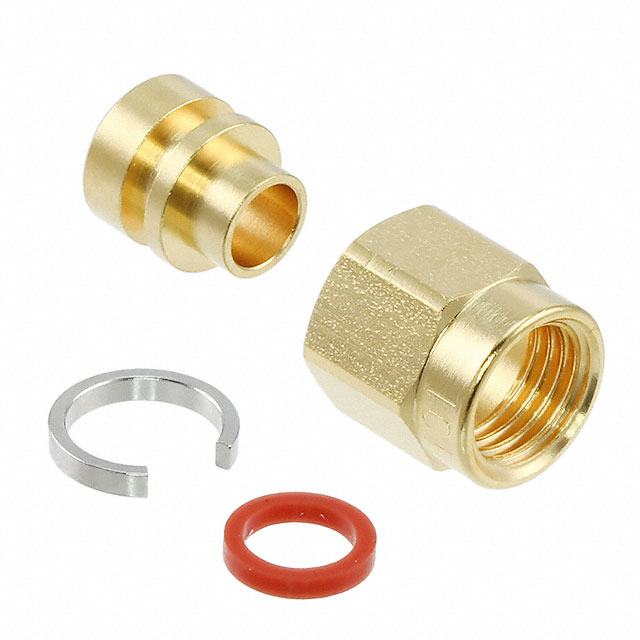

HRM-100 Series

Catalog

CONN SMA FOR SEMI-RIGID CBL

Part	Dielectric Material	Body Material	Body Finish	Center Contact Plating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Material	Cable Group	Impedance	Number of Ports	Housing Color	Connector Type	Shield Termination	Fastening Type	Mounting Type	Contact Termination	Frequency - Max [Max]	Mounting Feature	Insertion Loss
Hirose Electric Co Ltd HRM-100-1.19PJSG2
Hirose Electric Co Ltd HRM-100-2.19PSP(40)	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Gold	1000	-55 C	125 °C	SMA	Brass	RG-405 (.085" Semi Rigid)	50 Ohms	1	Gold	Plug Male Pin	Solder	Threaded	Free Hanging (In-Line)	Solder	5 GHz
Hirose Electric Co Ltd HRM-100-32S(40)	Polytetrafluoroethylene (PTFE)	Stainless Steel		Gold	1000	-55 C	125 °C	SMA	Beryllium Copper	RG-405 (.085" Semi Rigid)	50 Ohms	1	Silver	Female Socket Jack	Solder	Threaded	Panel Mount	Solder	1 GHz	Flange
Hirose Electric Co Ltd HRM-100-18B(40)	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Gold	1000	-55 C	125 °C	SMA	Brass	RG-405 (.085" Semi Rigid)	50 Ohms	1	Silver	Plug Male Pin	Solder	Threaded	Free Hanging (In-Line)	Solder	7 GHz

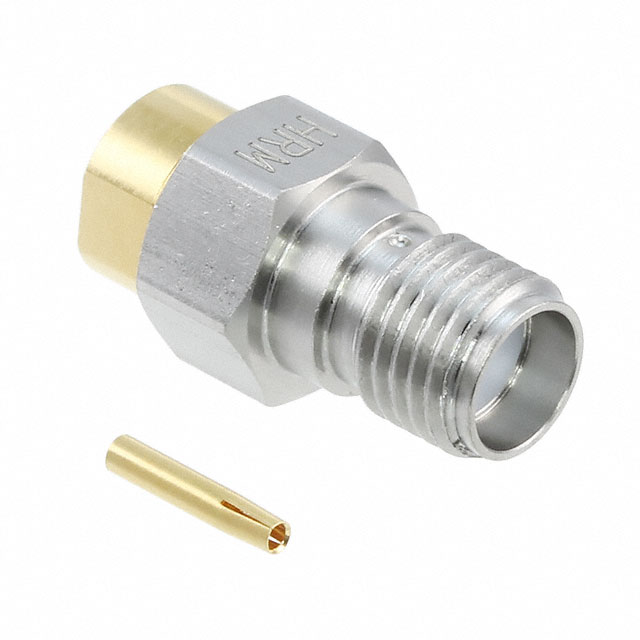

Hirose Electric Co Ltd HRM-100-2S(09)	Polytetrafluoroethylene (PTFE)	Stainless Steel		Gold	1000	-55 C	125 °C	SMA	Beryllium Copper	RG-405 (.085" Semi Rigid)	50 Ohms	1	Silver	Female Socket Jack	Solder	Threaded	Free Hanging (In-Line)	Solder	12.4 GHz		0.1 dB
Hirose Electric Co Ltd HRM-100-32(40)
Hirose Electric Co Ltd HRM-100-2.19PJSG2-1

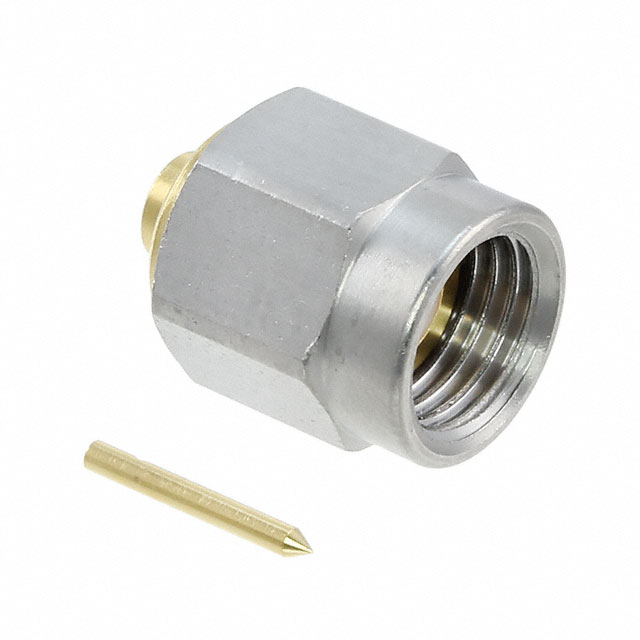

Hirose Electric Co Ltd HRM-100-1S1(40)	Polytetrafluoroethylene (PTFE)	Stainless Steel		Gold	1000	-55 C	125 °C	SMA	Brass	RG-405 (.085" Semi Rigid)	50 Ohms	1	Silver	Plug Male Pin	Solder	Threaded	Free Hanging (In-Line)	Solder	12.4 GHz		0.1 dB
