0501 Series

Catalog

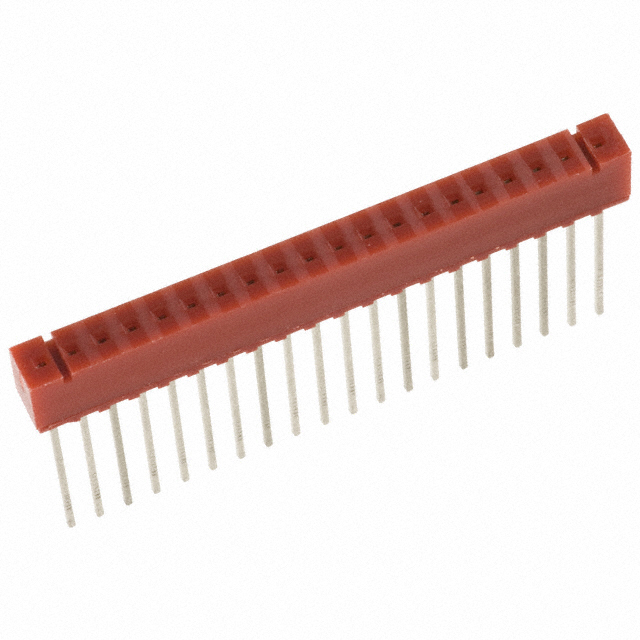

IC & COMPONENT SOCKETS STRIP LINE BIFURCATE 23 PINS TIN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Pitch - Post	Pitch - Post	Housing Material	Contact Material - Mating	Contact Material - Post	Type	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [y]	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)
Aries Electronics 23-0501-30	-55 C	105 ░C	0.1 "	2.54 mm	Tin	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	23	200 µin	5.08 µm	5.08 µm	200 µin	Through Hole
Aries Electronics 12-0501-31	-55 C	125 °C	0.1 "	2.54 mm	Gold	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP		10 Áin	0.25 çm	0.25 µm	10 µin	Through Hole	1	12	12	Gold
Aries Electronics 04-0501-21	-55 C	125 °C	0.1 "	2.54 mm	Gold	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	4 pins	10 Áin	0.25 çm	0.25 µm	10 µin	Through Hole				Gold	1 x 4
Aries Electronics 25-0501-30	-55 C	105 ░C	0.1 "	2.54 mm	Tin	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	25	200 µin	5.08 µm	5.08 µm	200 µin	Through Hole	25		1
Aries Electronics 34-0501-20	-55 C	105 ░C	0.1 "	2.54 mm	Tin	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	34	200 µin	5.08 µm	5.08 µm	200 µin	Through Hole	1		34
Aries Electronics 32-0501-20	-55 C	105 ░C	0.1 "	2.54 mm	Tin	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	32	200 µin	5.08 µm	5.08 µm	200 µin	Through Hole						UL94 V-0	1 A	0.42 in	10.67 mm	1 x 32
Aries Electronics 22-0501-31	-55 C	125 °C	0.1 "	2.54 mm	Gold	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	22	10 Áin	0.25 çm	0.25 µm	10 µin	Through Hole				Gold		UL94 V-0	1 A	0.69 in	17.52 mm
Aries Electronics 15-0501-20	-55 C	105 ░C	0.1 "	2.54 mm	Tin	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	15	200 µin	5.08 µm	5.08 µm	200 µin	Through Hole	1		15
Aries Electronics 34-0501-30	-55 C	105 ░C	0.1 "	2.54 mm	Tin	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP	34	200 µin	5.08 µm	5.08 µm	200 µin	Through Hole	1		34
Aries Electronics 03-0501-21	-55 C	125 °C	0.1 "	2.54 mm	Gold	Wire Wrap	0.1 in	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	Phosphor Bronze	SIP		10 Áin	0.25 çm	0.25 µm	10 µin	Through Hole				Gold		UL94 V-0	1 A	0.42 in	10.67 mm		3 (1 x 3)
