1586161 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

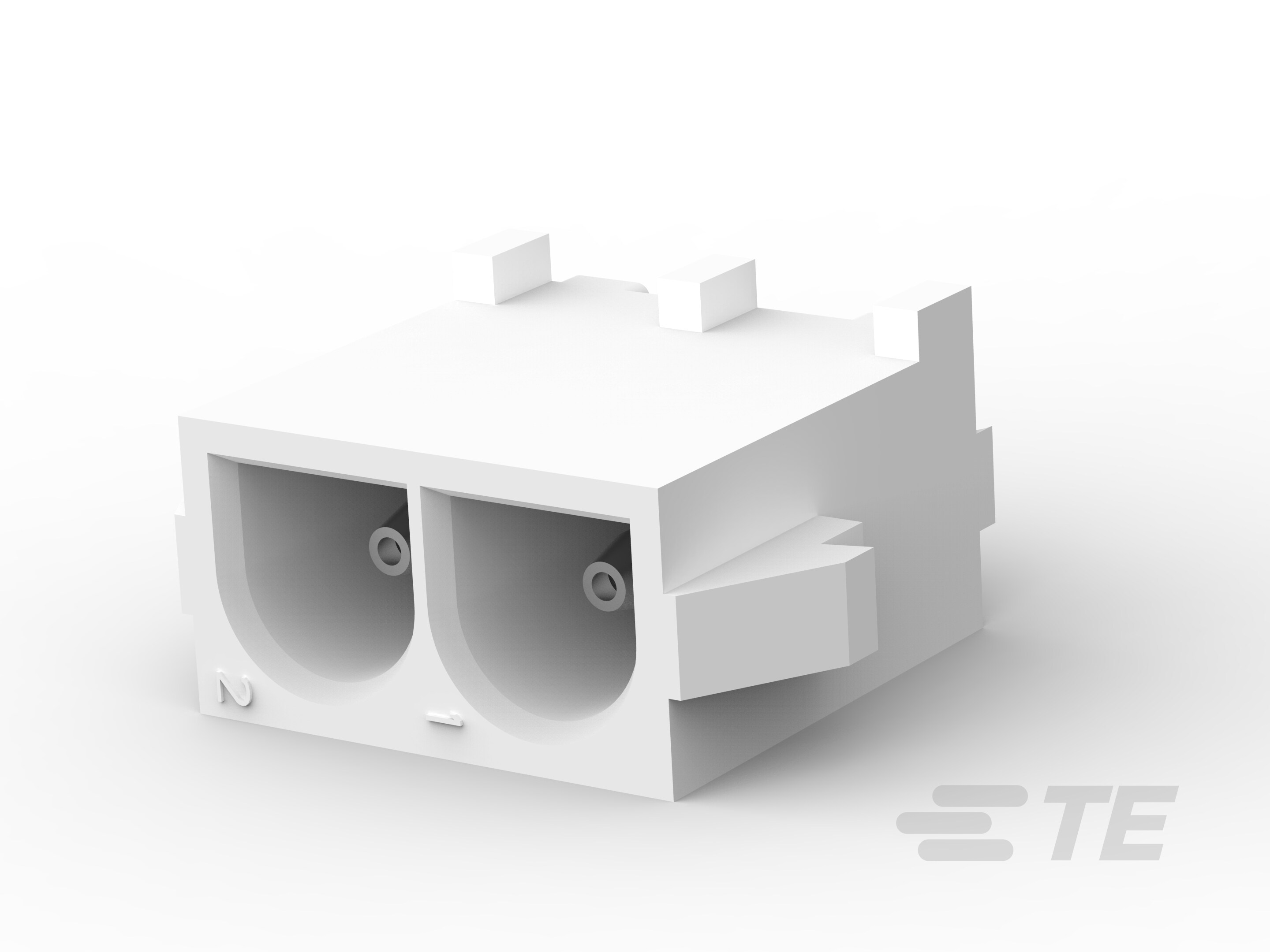

02P UMNL HDR 94VO NDH
| Part | Voltage Rating | Shrouding | Style | Contact Shape | Connector Type | Termination | Fastening Type | Insulation Height | Insulation Height | Number of Positions | Number of Positions Loaded | Material Flammability Rating | Contact Type | Pitch - Mating | Pitch - Mating | Insulation Color | Number of Rows | Mounting Type | Contact Material | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Applications | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 600 VAC | Shrouded - 4 Wall | Board to Cable/Wire | Circular | Header | Solder | Locking Ramp | 0.55 in | 13.97 mm | 2 | All | UL94 V-0 | Male Pin | 6.35 mm | 0.25 in | White | 1 | Through Hole | Phosphor Bronze | 3.94 mm | 0.155 " | Tin | General Purpose | Nylon Polyamide (PA) | -40 °C | 105 ░C |
