1010428 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

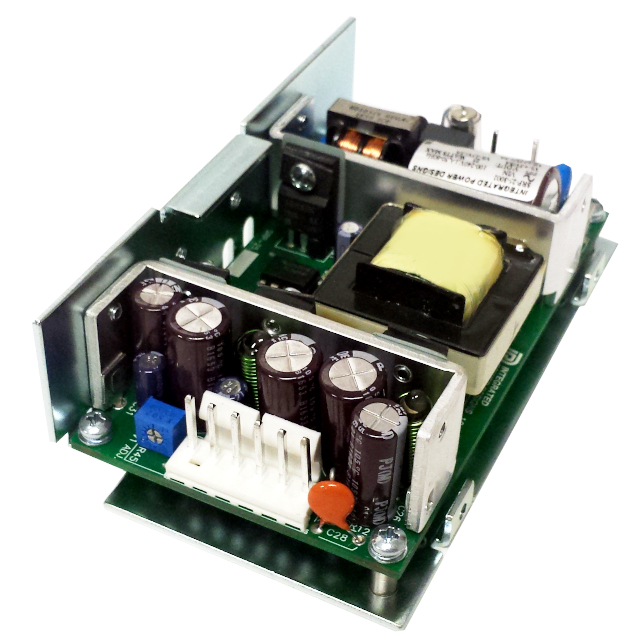

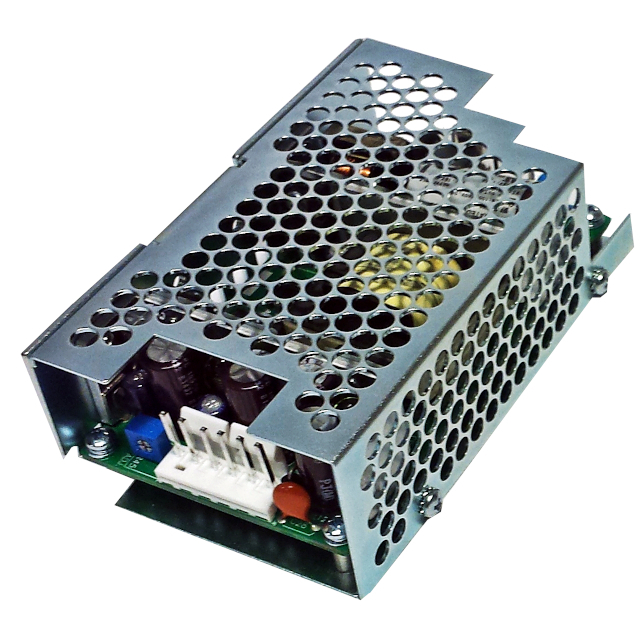

AC/DC CONVERTER 24V 25W
| Part | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Features | Type | Applications | Approval Agency | Mounting Type | Current - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 60601-1; 62368-1 | 70 °C | 0 °C | 69 % | 24 V | 100 VAC | 240 VAC | 25 W | Adjustable Output Universal Input | Enclosed | Industrial ITE (Commercial) Medical | CE cURus TUV UKCA | Chassis Mount | 1.04 A | 106.9 mm | 2.47 " | 4.21 in | 35.6 mm | 62.7 mm | 1.4 " | 1 |
 Integrated Power Designs | 60601-1; 62368-1 | 70 °C | 0 °C | 69 % | 24 V | 100 VAC | 240 VAC | 25 W | Adjustable Output Universal Input | Chassis | Industrial ITE (Commercial) Medical | CE cURus TUV UKCA | Chassis Mount | 1.04 A | 106.9 mm | 2.47 " | 4.21 in | 35.6 mm | 62.7 mm | 1.4 " | 1 |
