MIC916 Series
Manufacturer: Microchip Technology
Beta
⌘K

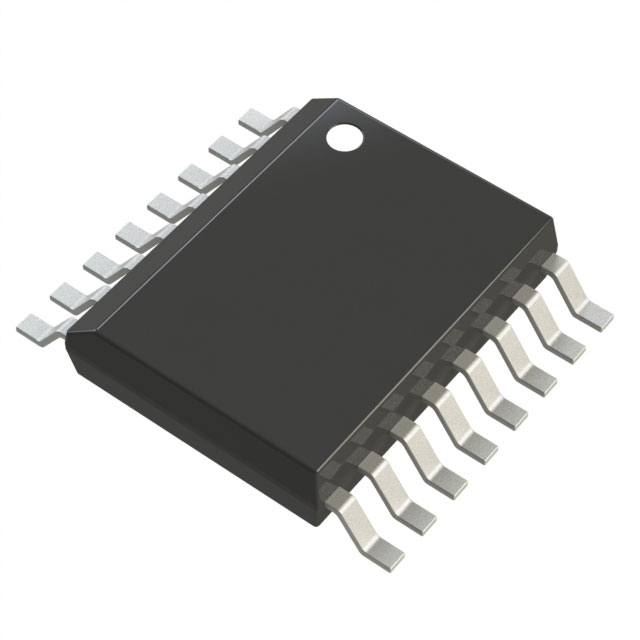

IC OPAMP VFB 3 CIRCUIT 16QSOP
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Package Width | Package Name | Package Length | Current - Output / Channel | Amplifier Type | Voltage - Supply Span (Min) | Number of Circuits | Current - Input Bias | Gain Bandwidth Product | Slew Rate | Current - Supply | -3db Bandwidth | Voltage - Supply Span (Max) | Voltage - Input Offset |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | -40 °C | 85 °C | Surface Mount | 3.9 mm | 16-QSOP 16-SSOP | 0.154 in | 90 mA | Voltage Feedback | 5 V | 3 | 3.5 µA | 135 MHz | 270 V/µs | 2.4 mA | 192 MHz | 18 V | 1 mV |
 Microchip Technology | -40 °C | 85 °C | Surface Mount | 3.9 mm | 16-QSOP 16-SSOP | 0.154 in | 90 mA | Voltage Feedback | 5 V | 3 | 3.5 µA | 135 MHz | 270 V/µs | 2.4 mA | 192 MHz | 18 V | 1 mV |
