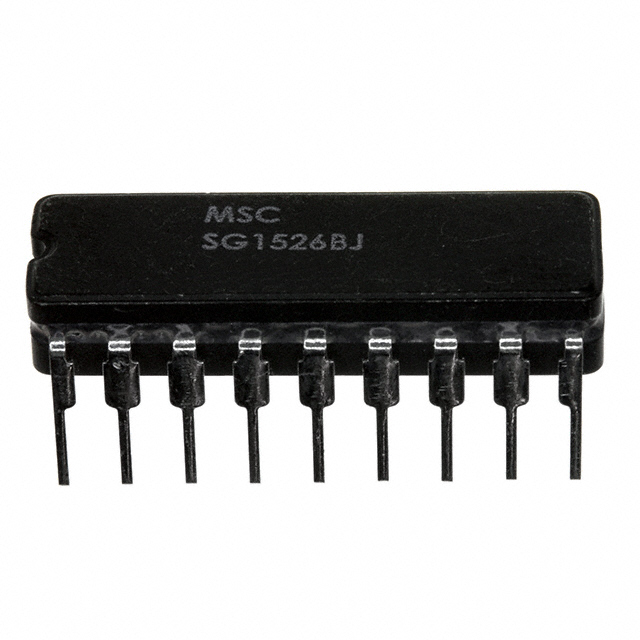

SG1526B Series

The SG1526B is a high-performance pulse width modulator for switching power supplies which offers improved functional and electrical characteristics over the industry-standard SG1526. A direct pin-for-pin replacement for the earlier device with all its features, it incorporates the following enhancements: a bandgap reference circuit for improved regulation and drift characteristics, improved under voltage lockout, lower temperature coefficients on oscillator frequency and current-sense threshold, tighter tolerance on soft start time, much faster SHUTDOWN response, improved double-pulse suppression logic for higher speed operation, and an improved output driver design with low shoot-through current, and faster rise and fall times. This versatile device can be used to implement single-ended or push-pull switching regulators of either polarity, both transformer-less and transformer-coupled. The SG1526B is specified for operation over the full military ambient temperature range of -55°C to 150°C. The SG2526B is characterized for the industrial range of -25°C to 150°C, and the SG3526B is designed for the commercial range of 0°C to 125°C. Microchip Ordering Part [Standard Microcircuit Drawing (SMD)](https://ww1.microchip.com/downloads/en/DeviceDoc/00003952.pdf) SG1526BJ-DESC Cross Reference 8551501VA SG1526BJ-DESC Cross Reference 8551501VX SG1526BJ-JAN Cross Reference M38510/12603BVA SG1526BJ-JAN Cross Reference M38510/12603BVX
