ADP121 Series

150mA, Low Quiescent Current, CMOS Linear Regulator in 5-Lead TSOT or 4-Ball WLCSP

Catalog

150mA, Low Quiescent Current, CMOS Linear Regulator in 5-Lead TSOT or 4-Ball WLCSP

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Mounting Type	Current - Quiescent (Iq)	Number of Regulators	Protection Features	Control Features	Supplier Device Package	Output Type	Package / Case	Output Configuration	Current - Output	Utilized IC / Part	Regulator Type	Channels per IC	Voltage - Output	Board Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Contents	PSRR	Voltage Dropout (Max) [Max]

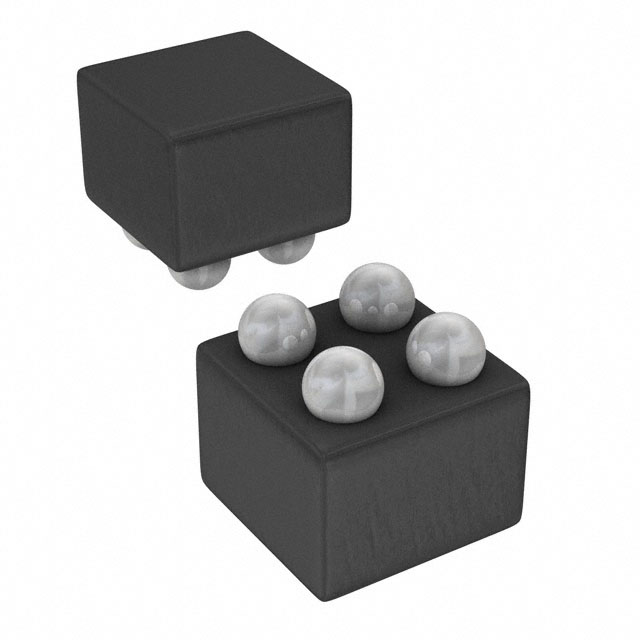

Analog Devices ADP121-ACBZ188R7	5.5 V	125 °C	-40 °C	1.875 V	Surface Mount	21 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	4-WLCSP (0.82x0.82)	1.81 mOhm	4-WFBGA WLCSP	Positive	150 mA
Analog Devices ADP121-ACBZ15R7	5.5 V	125 °C	-40 °C	1.5 V	Surface Mount	21 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	4-WLCSP (0.82x0.82)	1.81 mOhm	4-WFBGA WLCSP	Positive	150 mA

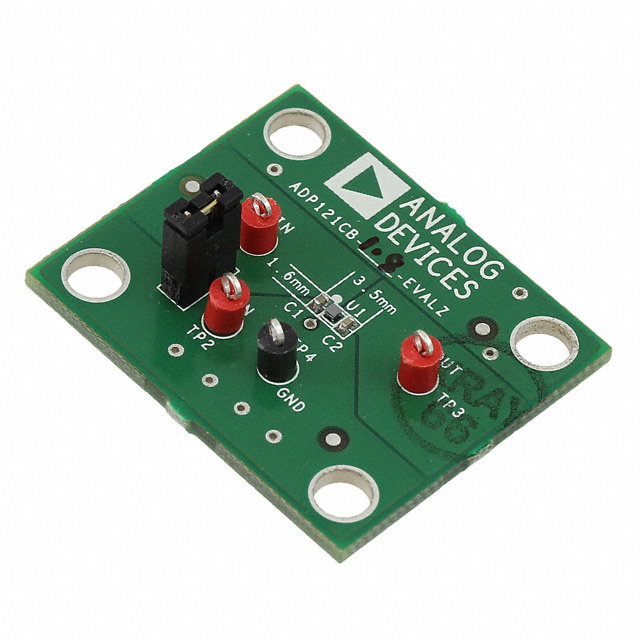

Analog Devices ADP121CB-1.8-EVALZ														150 mA	ADP121	Positive Fixed	1 - Single	1.8 V	Fully Populated	Board(s)	2.3 V	5.5 V
Analog Devices ADP121-ACBZ18R7	5.5 V	125 °C	-40 °C	1.8 V	Surface Mount	21 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	4-WLCSP (0.82x0.82)	1.81 mOhm	4-WFBGA WLCSP	Positive	150 mA
Analog Devices ADP121CB-2.5-EVALZ														150 mA	ADP121	Positive Fixed	1 - Single	2 V			2.3 V	5.5 V	Board(s)
Analog Devices ADP121-ACBZ12R7	5.5 V	125 °C	-40 °C	1.2 V	Surface Mount	21 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	4-WLCSP (0.82x0.82)	1.81 mOhm	4-WFBGA WLCSP	Positive	150 mA										70 dB
Analog Devices ADP121-AUJZ33R7	5.5 V	125 °C	-40 °C	3.3 V	Surface Mount	21 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable		1.81 mOhm	SOT-23-5 Thin TSOT-23-5	Positive	150 mA										60 dB	0.135 V
Analog Devices ADP121CB-1.2-EVALZ														150 mA	ADP121	Positive Fixed	1 - Single	1.2 V	Fully Populated	Board(s)	2.3 V	5.5 V	Board(s)

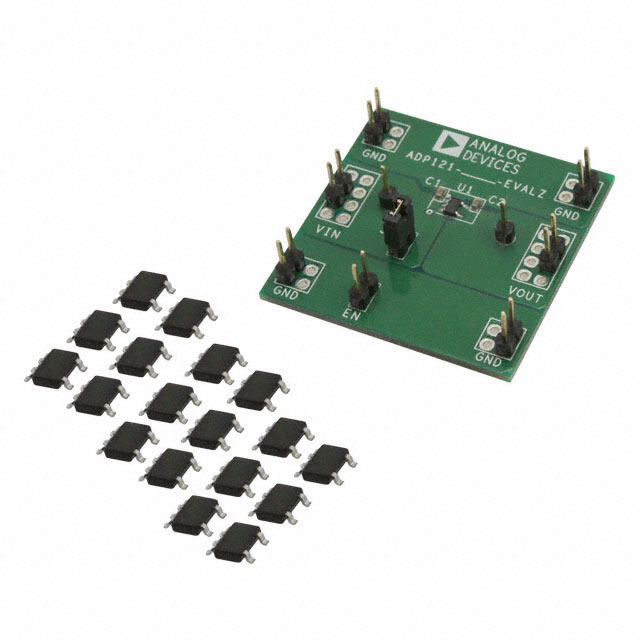

Analog Devices ADP121UJZ-REDYKIT														150 mA	ADP121	Positive Fixed	1 - Single	2.8 V 3.3 V	Fully Populated	Board(s)	2.3 V	5.5 V
Analog Devices ADP121-AUJZ30R7	5.5 V	125 °C	-40 °C		Surface Mount	21 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable		1.81 mOhm	SOT-23-5 Thin TSOT-23-5	Positive	150 mA

Catalog

150mA, Low Quiescent Current, CMOS Linear Regulator in 5-Lead TSOT or 4-Ball WLCSP

Key Features

• Input voltage range: 2.3 V to 5.5 V

• Output voltage range: 1.2 V to 3.3 V

• Output current: 150 mA

• Low quiescent currentIGND= 11 μA with 0 μA loadIGND= 30 μA with 150 mA load

• Low shutdown current: <1 μA

• Low dropout voltage90 mV @ 150 mA load

• High PSRR70 dB @ 1 kHz at VOUT= 1.2 V70 dB @ 10 kHz at VOUT= 1.2 V

• Low noise: 40 μV rms at VOUT= 1.2 V

• See data sheet for additional features

Description

The ADP121 is a quiescent current, low dropout, linear regulator that operates from 2.3 V to 5.5 V and provides up to 150 mA of output current. The low 135 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range. The low 30 μA of quiescent current at full load makes the ADP121 ideal for battery-operated portable equipment.The ADP121 is available in output voltages ranging from 1.2 V to 3.3 V. The parts are optimized for stable operation with small 1 μF ceramic output capacitors. The ADP121 delivers good transient performance with minimal board area.Short-circuit protection and thermal overload protection circuits prevent damage in adverse conditions. The ADP121 is available in a tiny 5-lead TSOT and 4-ball 0.4 mm pitch WLCSP pack-ages and utilizes the smallest footprint solution to meet a variety of portable applications.
