DF22R Series

Catalog

CONN HEADER VERT 2POS 7.92MM

Part	Mated Stacking Heights	Current Rating (Amps)	Contact Material	Insulation Material	Contact Shape	Features	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Positions	Style	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Termination	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Mounting Type	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Note	Color	Pitch	Pitch	Contact Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric Co Ltd DF22R-2P-7.92DSA(05)	25.7 mm 28.7 mm	25 A	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Square	Board Guide	1000 VDC	9 mm	0.354 in	0.713 in	18.1 mm	2	Board to Cable/Wire	0.312 in	7.92 mm	39.4 µin	1 µm	Shrouded - 4 Wall	85 °C	-35 °C	Latch Holder	Solder	Header	3.7 mm	0.146 "	Male Pin	Through Hole	Black	Tin-Copper	All	UL94 V-0	1
Hirose Electric Co Ltd DF22R-4P-7.92DSA	25.7 mm 28.7 mm	22 A	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Square	Board Guide	1000 VDC	9 mm	0.354 in	0.713 in	18.1 mm	4	Board to Cable/Wire	0.312 in	7.92 mm			Shrouded - 4 Wall	85 °C	-35 °C	Latch Holder	Solder	Header	3.7 mm	0.146 "	Male Pin	Through Hole	Black		All	UL94 V-0	1
Hirose Electric Co Ltd DF22R-1P-7.92DSA(06)
Hirose Electric Co Ltd DF22R-5P-7.92DS(06)

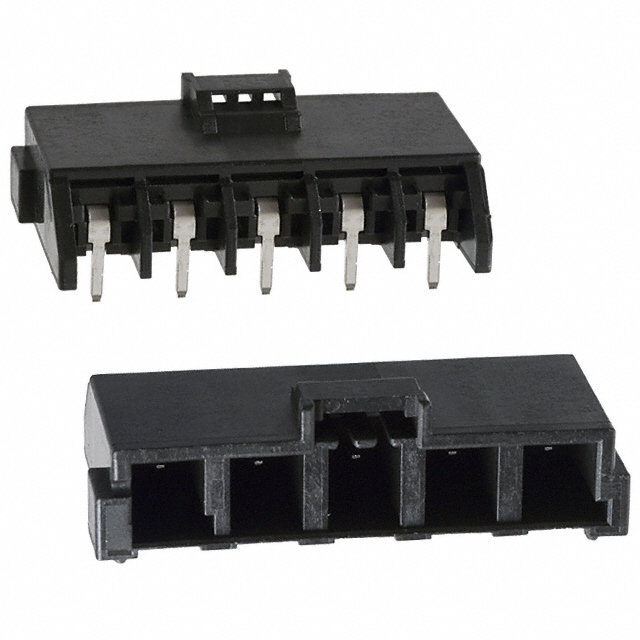

Hirose Electric Co Ltd DF22R-5P-7.92DS		22 A	Copper Alloy	Nylon Polyamide (PA)	Square	Board Guide	1000 VDC	9 mm	0.354 in	0.48 in	12.2 mm	5	Board to Cable/Wire	0.312 in	7.92 mm			Shrouded - 4 Wall	85 °C	-35 °C	Latch Holder	Solder	Header	3.7 mm	0.146 "	Male Pin	Right Angle Through Hole	Black	Tin-Lead	All	UL94 V-0	1
Hirose Electric Co Ltd DF22R-2S-7.92C						Polarizing Key						2									Latch Lock		Receptacle			Female Socket	Free Hanging (In-Line)					1	Contacts Not Included	Black	0.312 in	7.92 mm	Crimp

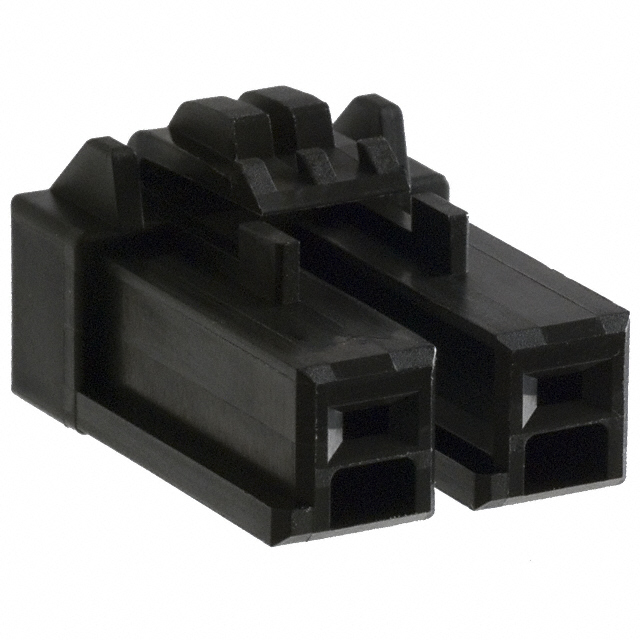

Hirose Electric Co Ltd DF22R-2S-7.92C(28)				Nylon Polyamide (PA)		Polarizing Key						2							85 °C	-55 C	Latch Lock		Receptacle			Female Socket	Free Hanging (In-Line)					1	Contacts Not Included	Black	0.312 in	7.92 mm	Crimp
Hirose Electric Co Ltd DF22R-2P-7.92DSA(06)

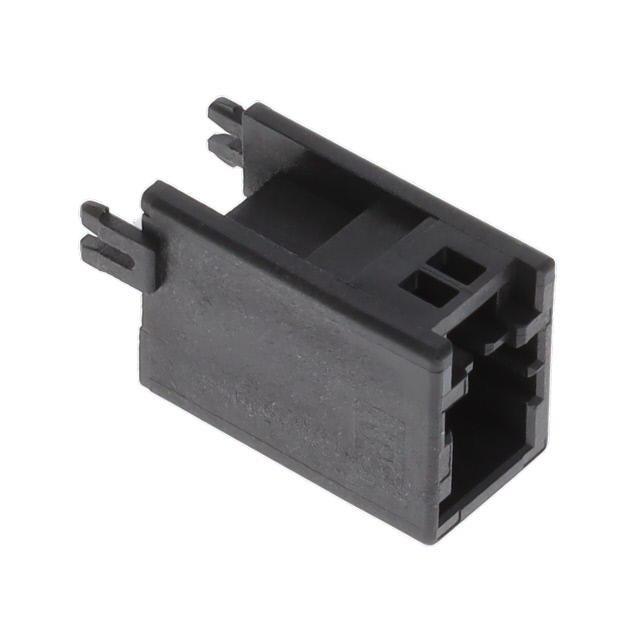

Hirose Electric Co Ltd DF22R-1P-7.92DSA(57)			Copper Alloy	Nylon Polyamide (PA)	Square	Board Guide Board Lock	1000 VAC	9 mm	0.354 in	0.713 in	18.1 mm	1	Board to Cable/Wire					Shrouded - 4 Wall	85 °C	-55 C	Latch Holder	Solder	Header	3.7 mm	0.146 "	Male Pin	Through Hole	Black	Gold	All	UL94 V-0	1						0.203 µm	8 µin	Varies by Wire Gauge	Gold	8 µin	0.203 µm

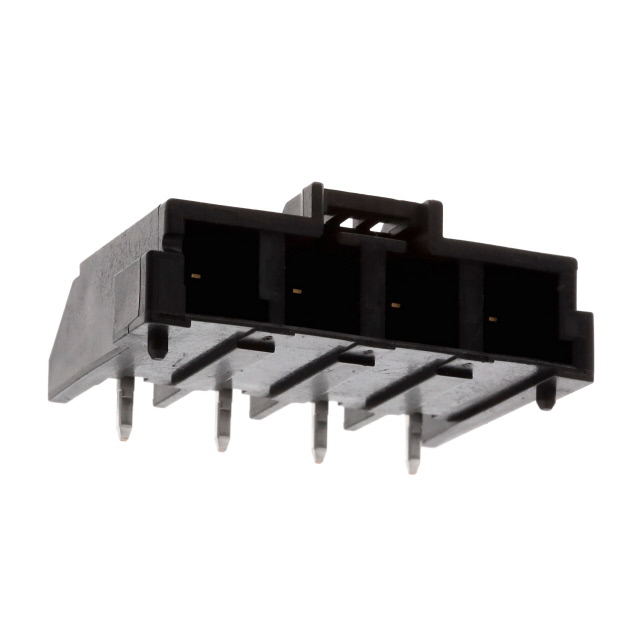

Hirose Electric Co Ltd DF22R-4P-7.92DS(53)			Copper Alloy	Nylon Polyamide (PA)	Square	Board Guide	1000 VAC	9 mm	0.354 in	0.48 in	12.2 mm	4	Board to Cable/Wire	0.312 in	7.92 mm			Shrouded - 4 Wall	85 °C	-55 C	Latch Holder	Solder	Header	3.7 mm	0.146 "	Male Pin	Right Angle Through Hole	Black	Gold	All	UL94 V-0	1						0.203 µm	8 µin	Varies by Wire Gauge	Gold	8 µin	0.203 µm
