BTA04 Series

Catalog

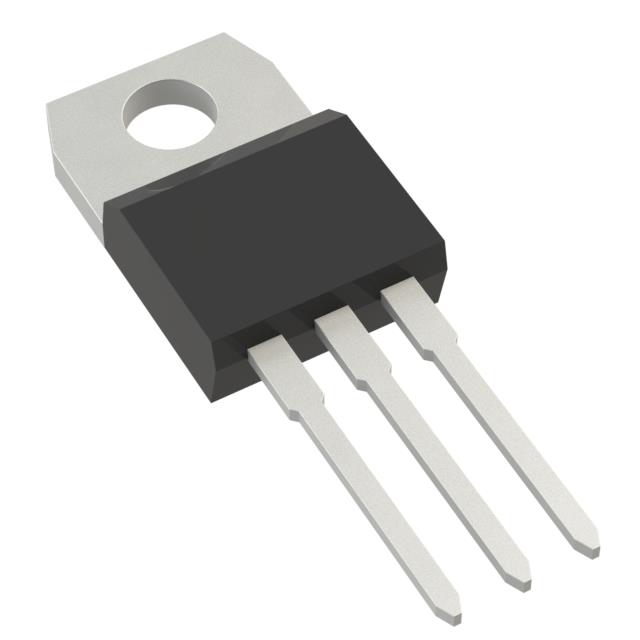

TRIAC SENS GATE 700V 4A TO220AB

Part	Voltage - Gate Trigger (Vgt) (Max)	Voltage - Off State	Supplier Device Package	Current - Hold (Ih) (Max) [Max]	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Triac Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Configuration	Current - On State (It (RMS)) (Max) [Max]
STMicroelectronics BTA04-600SRG	1.5 V	700 V	TO-220AB Insulated	25 mA	TO-220-3	40 A 42 A	Logic - Sensitive Gate	Through Hole	-40 °C	110 °C	10 mA	Single	4 A
STMicroelectronics BTA04-700TRG	1.5 V	700 V	TO-220	15 mA	TO-220-3	40 A 42 A	Logic - Sensitive Gate	Through Hole	-40 °C	110 °C	5 mA	Single	4 A
