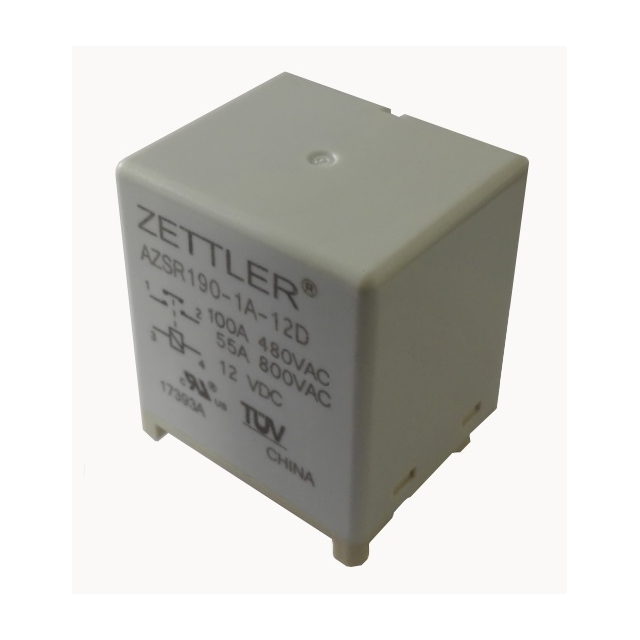

AZSR190 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY EV CHG SOLAR SPST 100A 24V
| Part | Coil Resistance | Contact Form | Release Time | Coil Current | Contact Rating (Current) | Approval Agency | Switching Voltage [Max] | Operate Time | Coil Insulation | Mounting Type | Coil Voltage | Coil Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Load - Max Switching [Max] | Must Release Voltage | Must Operate Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 300 Ohms | SPST-NO (1 Form A) | 10 ms | 80 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 24 VDC | Non Latching | Silver Nickel (AgNi) | 85 °C | -40 C | PC Pin | 48000 VA | 2.4 VDC | 18 VDC | EV Charging Solar |
American Zettler | 300 Ohms | SPST-NO (1 Form A) | 10 ms | 80 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 24 VDC | Non Latching | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | PC Pin | 48000 VA | 2.4 VDC | 18 VDC | EV Charging Solar |
American Zettler | 18.8 Ohms | SPST-NO (1 Form A) | 10 ms | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | Non Latching | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | PC Pin | 48000 VA | 0.6 VDC | 4.5 VDC | EV Charging Solar | ||
American Zettler | 18.8 Ohms | SPST-NO (1 Form A) | 10 ms | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | Non Latching | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | PC Pin | 48000 VA | 0.6 VDC | 4.5 VDC | EV Charging Solar | ||
 American Zettler | 70 Ohms | SPST-NO (1 Form A) | 10 ms | 171.4 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 12 VDC | Non Latching | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | PC Pin | 48000 VA | 1.2 VDC | 9 VDC | EV Charging Solar |
American Zettler | 70 Ohms | SPST-NO (1 Form A) | 10 ms | 171.4 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 12 VDC | Non Latching | Silver Nickel (AgNi) | 85 °C | -40 C | PC Pin | 48000 VA | 1.2 VDC | 9 VDC | EV Charging Solar |
American Zettler | 300 Ohms | SPST-NO (1 Form A) | 10 ms | 80 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 24 VDC | Non Latching | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | PC Pin | 48000 VA | 2.4 VDC | 18 VDC | EV Charging Solar |
American Zettler | 300 Ohms | SPST-NO (1 Form A) | 10 ms | 80 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 24 VDC | Non Latching | Silver Nickel (AgNi) | 85 °C | -40 C | PC Pin | 48000 VA | 2.4 VDC | 18 VDC | EV Charging Solar |
American Zettler | 75 Ohms | SPST-NO (1 Form A) | 10 ms | 160 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 12 VDC | Non Latching | Silver Nickel (AgNi) | 85 °C | -40 C | PC Pin | 48000 VA | 1.2 VDC | 9 VDC | EV Charging Solar |
American Zettler | 300 Ohms | SPST-NO (1 Form A) | 10 ms | 80 mA | 100 A | TUV UL | 800 VAC | 40 ms | Class F | Through Hole | 24 VDC | Non Latching | Silver Nickel (AgNi) | 85 °C | -40 C | PC Pin | 48000 VA | 2.4 VDC | 18 VDC | EV Charging Solar |
